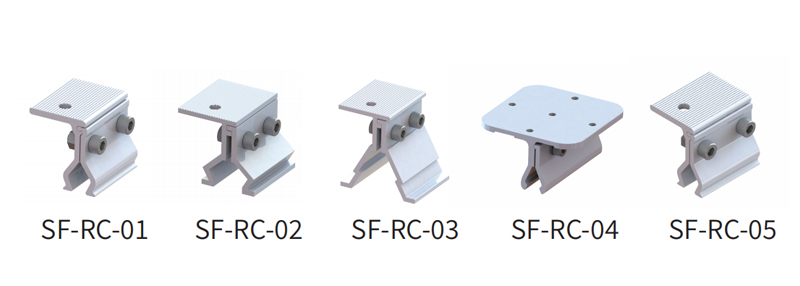

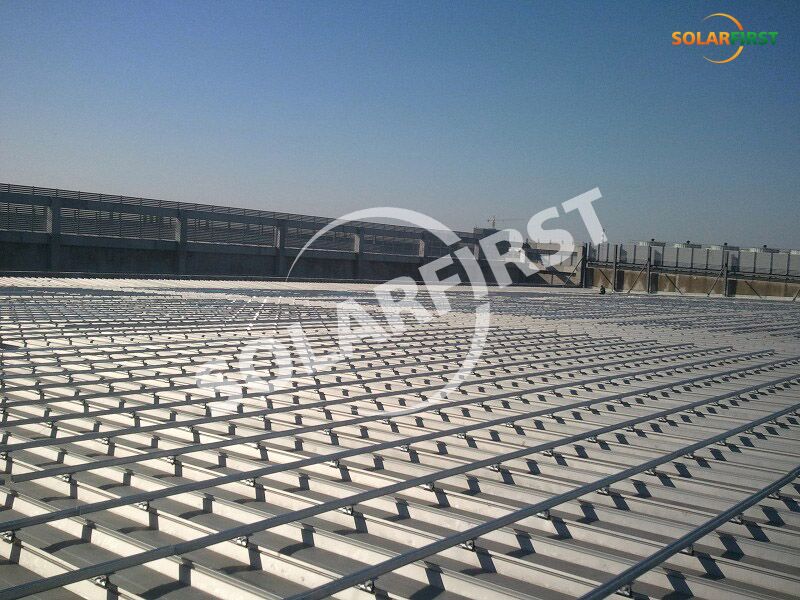

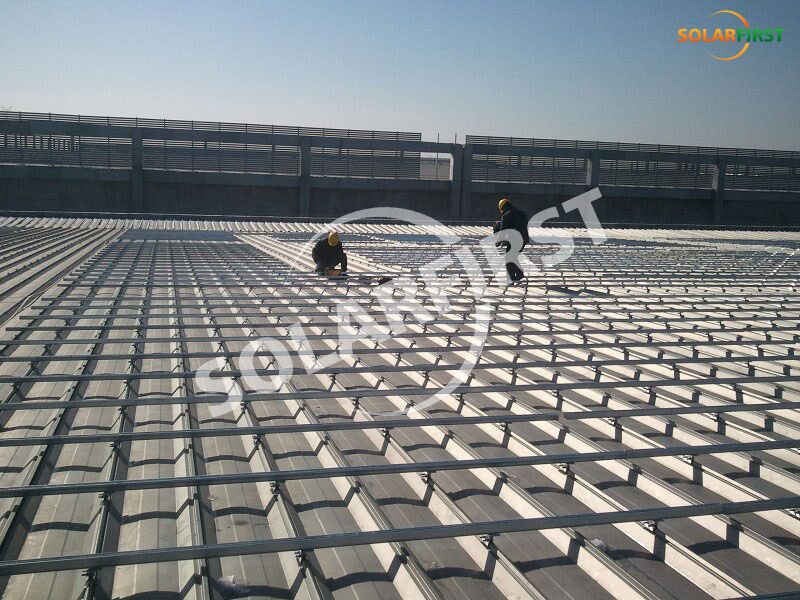

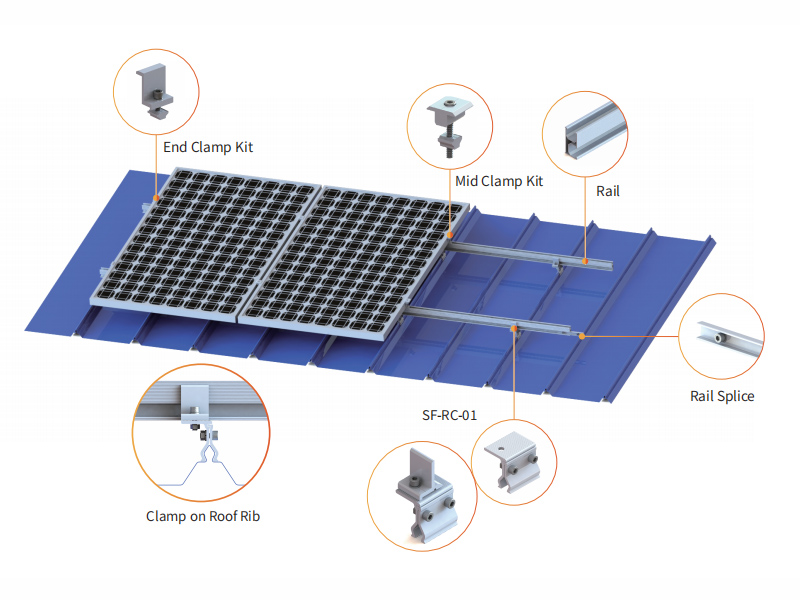

SolFirsTech-RC Roof Clamp Series
|

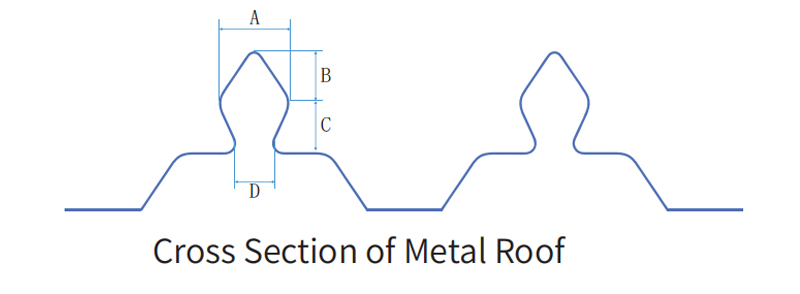

Dimensions (mm) |
A |
B |
C |
D |
|
SolFirsTech-RC-01 |
18 |
13.5 |
10.5 |
10 |
|
SolFirsTech-RC-02 |
26 |
12 |
10.5 |
18 |
|
SolFirsTech-RC-03 |
35 |
21.6 |
2.5 |
31.5 |
|
SolFirsTech-RC-04 |
16.3 |
16.3 |
2.5 |
12 |
|
SolFirsTech-RC-05 |
15 |
12.2 |
10 |
10 |
|
Technical Details |
|
|
Installation |
Metal Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
Parallel to Roof Surface |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Characteristics ·Ultra-low starting voltage, ultra-wide voltage range ·Support anti-backflow function ·Support RS485, Wi-Fi, GPRS multiple communication methods ·Automatic voltage stabilization technology, adaptive to complex grid ·Built-in AFCI, can prevent 99% fire risk (optional) ·Easy to install and maintain Application ·Household ·Vegetable greenhouse ·Fish pond System power 3.6KW 6KW 10KW 15KW 20W 30KW Solar panel power 450W 430W 420W Number of solar panels 8 PCS 14 PCS 24 PCS 36 PCS 48 PCS 72 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 3KW 5KW 8KW 12KW 17KW 25KW Maximum output apparent power 3.3KVA 5.5KVA 8.8KVA 13.2KVA 18.7KVA 27.5KVA Rated grid voltage 1/N/PE.220V 3/N/PE,400V Grid voltage range 180~276Vac 270 〜480Vac Rated grid frequency 50Hz Grid frequency range 45~55Hz Maximum efficiency 98.20% 98.50% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Protection level IP65 Working temperature -25 〜+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Accessories The accessories are made of anodized aluminum 6005-T5. The fasteners are made of SUS304. No. Product Name Picture SolFirsTech-DR05-L Rail SolFirsTech-DR06-L Rail SolFirsTech-HR-L Rail SolFirsTech-HR-L Rail SolFirsTech-DR05-SP Rail Connector SolFirsTech-HR-SP Rail Connector SolFirsTech-RC-A Rail Clamp Kit
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Road lighting ·Landscape lighting ·Schools ·Remote countryside ·Agriculture and animal husbandry Wind-solar Hybrid Street Light Specifications Solar panel power 120W±15% 150W±15% 240W±15% 300W±15% Horizontal axis wind turbine 200W 300W 400W 500W Wind and solar hybrid controller 1 SET Battery capacity 12V/150Ah 12V/100Ahx2 12V/150Ahx2 12V/200Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 7.0m 8.0m 9.0m 10.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind Grade 10) Rainy days 5〜7 days
SolFirsTech Triangle Roof Mounting System fits for most of available solar panels, and they can scale easily from small to large installations. SolFirsTech all has a strict control process to ensure the mounting structural strength and the life of system.
L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.
