Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Payment:
T/TProduct Origin:
Xiamen ChinaShipping Port:
XiamenLead Time:
2 weeks
SolFirsTech product description:
1. Overview
Solar ground mounting system has been developed for mounting the PV array system on the open fields. The steadiness and safety of this product is complied with the international structural mechanics and construction acts. Ground mounting system can be installed on the different foundation solutions, such as concrete with pre-buried bolt, direct buried and ground screw. This product is assembly by hot galvanized steel and anodized aluminum alloy, with great anti-corrosive suitable for outdoor using. According to the practical requirements, the system can be planned and customized in the factory to avoid welding and cut on the spot, saving your time and cost.
2. Features
1). Easy installation:
Planning and machining in the factory saving your time and cost.
2). Great Flexibility:
The ground array can be planned from kilo-watto to mego-watt.
3). Steady and safety:
Design and check the structure according to the structural mechanics and construction acts.
4). Excellent duration:
For outdoor using, all the material selected with high class anti-corrosion protection.
3. Main Technical Parameter
| Installation site: | Open field |
| Tilt angle: | 10-60deg |
| Building Height: | up to 20m |
| Max Wind Resistance: | up to 60m/s |
| Snow Load: | up to 1.4KN/m2 |
| Standards: | GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50429-2007 |
| Material: | High class aluminum alloy, stainless steel, galvanized steel |
| Foundation Solution: | Concrete with pre-buried bolt, direct buried, ground screw etc. |
| Color: | Natural or optional |
| Anti-corrosive: | Anodized, hot galvanized |
| Warranty: | 10 years |
| Duration: | More than 20 years |
4. Application
Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Installation Steps Technical Details Installation Ground Foundation Concrete Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Hot Dip Gavanized Steel, Anodized Aluminum AL6005-T5, Zn-Al-Mg pre-coated steel, Warranty 10 Years Warranty

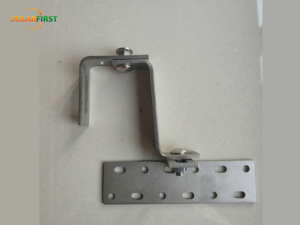

Solar L Foot use for Tin Roof PV Mounting System, with high quality and low price.
With variety of different Tin Roof Brackets, SolFirsTech Tin Roof Mounting System can meet trapezoid or corrugated metal roof and standing seam roof demand with or without penetrating on the roofs.
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
The SolFirsTechPVROOM series PV glass certain wall solutions combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Curtain wall + solar photovoltaic, an eco-friendly substitution to the glass curtain wall system.
Dual Axis Traker
Single Pole Ground Mounting system is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.
