SolFirsTech-RC Roof Clamp Series
|

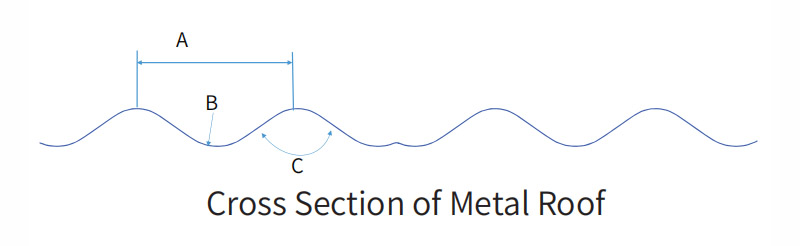

Dimensions (mm) |
A |
B |
C(°） |
|
SolFirsTech-RC-15 |
76 |
21(R) |
112 |
|
SolFirsTech-RC-16 |
76 |
21(R) |
112 |
|
Technical Details |
|
|
Installation |
Metal Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
Parallel to Roof Surface |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
SolFirsTechPVROOF is a series of BIPV roofs which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Day lighting + solar photovoltaic, an eco-friendly substitution to the traditional skylight.
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°) SolFirsTech-RC-08 28 34 122 SolFirsTech-RC-09 20 20 123 SolFirsTech-RC-10 20 20 123 SolFirsTech-RC-11 25 23.8 132 SolFirsTech-RC-18 22 16 120 SolFirsTech-RC-21 52 12 135 SolFirsTech-RC-22 33.7 18 135 SolFirsTech-RC-23 33.7 18 135 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time, clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection) Application ·Home ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V 48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set 1 100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694
Horizontal Single Axis Traker
This photovoltaic smart street light converts solar energy to electrics for lighting compared to traditional street lights. It has obvious advantages of environmental protection, energy saving, and high efficiency. Combined with smart functions, this street light system also provides not only comfortable and automatic light, but also information collection, information transmission, and information release. It will be an important approach for and a terminal of smart communities and smart cities in the future . Smart system + solar; a new type of energy-saving model; a symbol of the smart city.
Installation Steps Technical Details Design Description: This solution allows solar panels to generate power from sunlight, while its lower structure provides a suitable growing environment for crops, edible fungi and livestock. Installation Ground Foundation Ground Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
SolFirsTech Solar Carport Mounting System offers a flexible, simple and affordable solution for solar mounting system.
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
