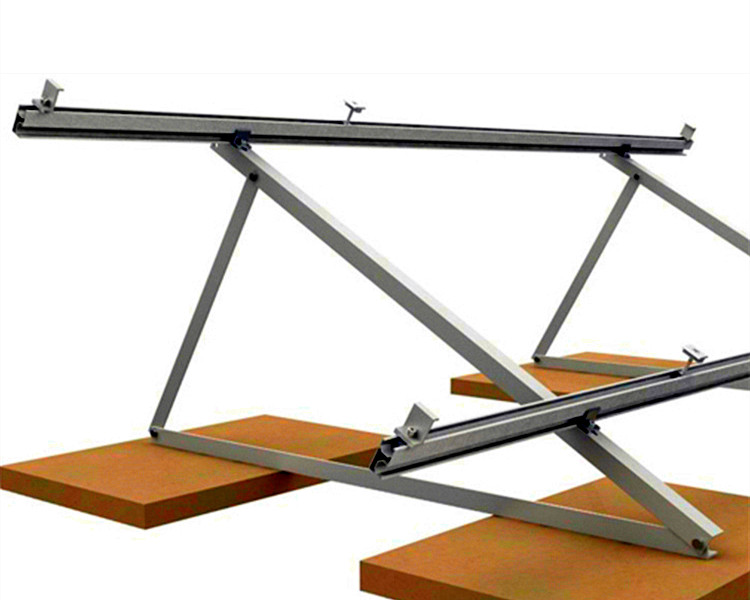

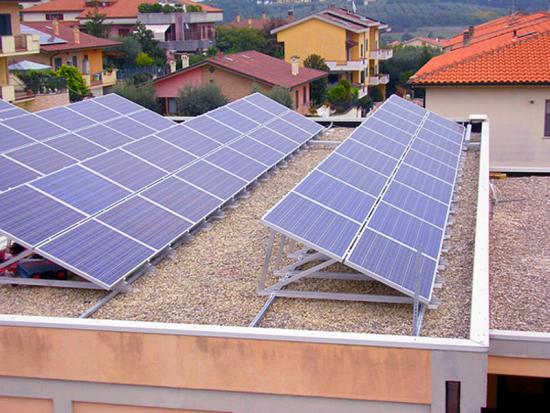

within 15-30 working daysAdjustable Triangle Solar Flat Roof Mounting System

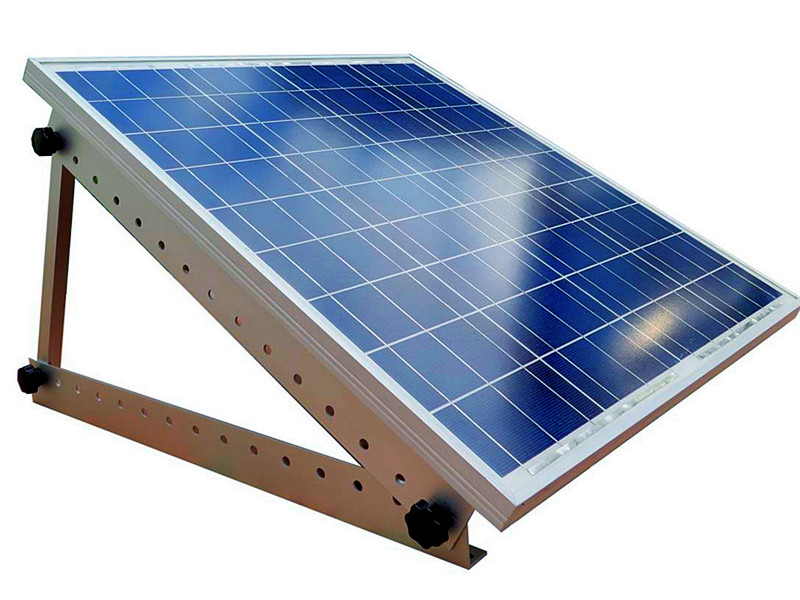

SolFirsTech adjustable mounting system is designed for residential and commercial applications. We design the clamps according to the rooftop shape and size to make sure enables surprisingly quick and easy installation for most types of roof. Outstanding quality of stainless steel and aluminum ensure the most durable brackets.
|
Product Specification |
|
|
Installation site: |
Flat roof or tilt roof |
|
Applicable roof: |
Suitable for most types of roof |
|
Roof slop: |
Up to 60o |
|
Max. building height: |
Up to 65ft(20m) |
|
Wind load: |
130mph(60m/s) |
|
Snow load: |
30pSolFirsTech(1.4kN/m2) |
|
Applicable module: |
Framed or Frameless |
|
Module orientation: |
Landscape or portrait |
|
Code compliance: |
AS/NZS 1170; JIS C 8955:2011 |
|
Material: |
Aluminum, stainless steel |
|
Color: |
Natural or Customized |
|
Warranty: |
10 years on material |
|
Duration: |
More than 20 years |
Advantages
1. Easy installation
Parts have been high pre-assembly on factory to save your installation time.
2. Safety and reliability
Check a test the structure strictly to against the extreme weather condition.
3. Flexibility and adjustable
Smart design reduce the difficulty of the installation on the most condition.
4. High efficiency
Even over winter months when there is less sunlight, the solar panel system make the efficiency up to 25% by adjusting panels towards the sun.
5.10 years warranty
SolFirsTech insists on “Professional and Innovation” on products research and development, provides effective guarantee to customers with “Professional”.
6. Low Labor Cost
Exclusive
proprietary parts makes the design of structure is very simple and easy to
install, highly pre-assembled parts by SolFirsTech factory making safe and cost
effective PV mounting system.
7. Custom
Designed
With our most professional engineers, SolFirsTech Adjustable roof
mounting system can be customized as per customers need to make it to be
adjustable or fixed triangle.
Product Details
Product Show
We design the Adjustable Mounting System surprisingly quick and easily install for every roof with outstanding quality of stainless steel and aluminum ensure the most durable brackets.
Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation Ground/Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5~60° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
This solution is also applicable on ground or concrete roof with small inclination. Its structure is light with high strength and good flexibility.
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.

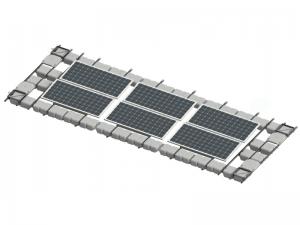

The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof. With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.

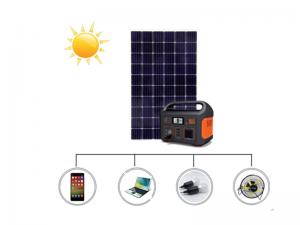

Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）

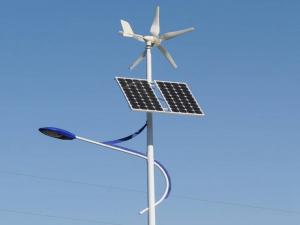

Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.

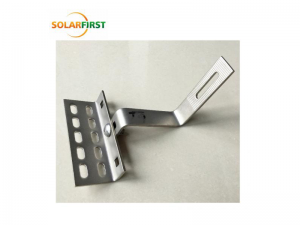

Different Tile Roof require different Tile Hook, based on tile roof mould,you can choose suitable hook as per your roof type.

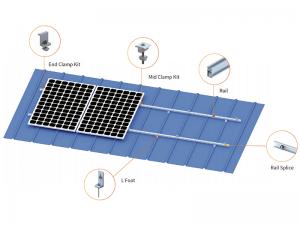

Accessories The accessories are made of anodized aluminum 6005-T5. The fasteners are made of SUS304. No. Product Name Picture SolFirsTech-DR05-L Rail SolFirsTech-DR06-L Rail SolFirsTech-HR-L Rail SolFirsTech-HR-L Rail SolFirsTech-DR05-SP Rail Connector SolFirsTech-HR-SP Rail Connector SolFirsTech-RC-A Rail Clamp Kit
