Item NO.:
SF-CM-006Payment:
L/C, T/T, D/P, Western Union, PaypalPrice:
$0.059/WProduct Origin:
Fujian, ChinaColor:
NormalShipping Port:
XiamenLead Time:
within 15-30 working days

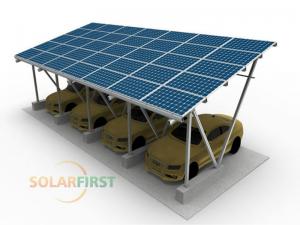

Solar Carport Steel Structure for Ground Mounting System
SolFirsTech carport mounting system offers a flexible, simple and affordable solution for solar mounting system.solar carports utilize existing parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird MW solar systems.
Specifications for SolFirsTech PV Carport Mounting Structures
|
Port: |
Xiamen, China |
|
Production Capacity: |
1000MW/Year |
|
Payment Terms: |
L/C, T/T, D/P, Western Union, Paypal, Money Gram |
|
Certification: |
ISO, Ce, Support Solar Carport Steel Structure |
|
Application: |
Home, Industrial, Commercial, Solar Carport Steel |
|
Material: |
Galvanized Steel/Anodized Aluminum6063 T3-T5 |
|
Type: |
Solar Carport Y Shape Steel Structures |
|
Surface colar: |
Natual or Customized |
|
Wind Speed: |
60m/S |
Advantages of SolFirsTech Carport Mounting System
1.Easy Installation
Carport mounting system with professional design enable to save your time and money on site. Quick and easy installation is promised due to our patented Cross-module, rail and roof hooks.
2.High Compatibility
Compatible with various of solar panel in the market.
3.Innovative Design
With mechanical optimization and high density design, to minimize loading space, high level of corrosion resistance treatment.
4.Strictly Quality Control
From selection of raw materials, procurement and production process, SolFirsTech has a strict control process to ensure the ground mount structural strength and to optimize service life of system and Strict QC offers more reliable solutions.

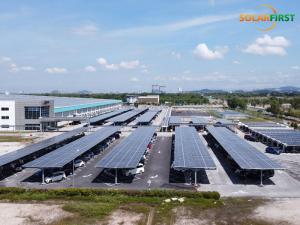

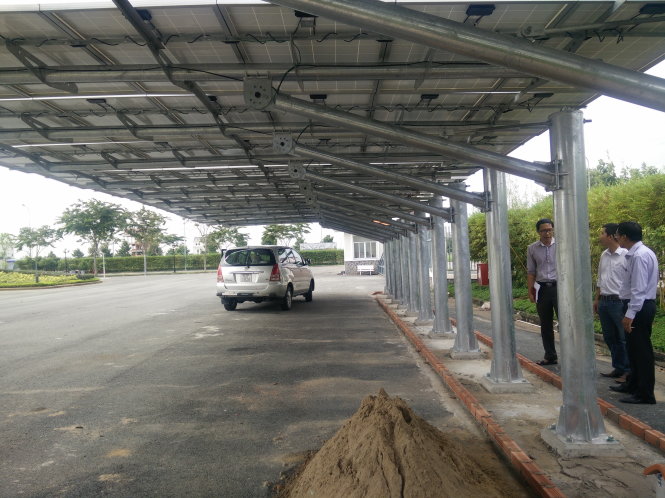

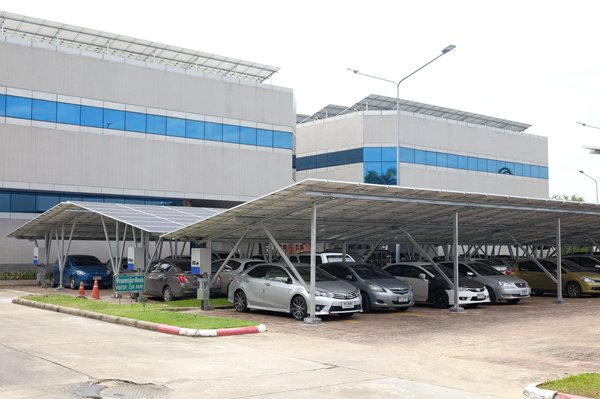

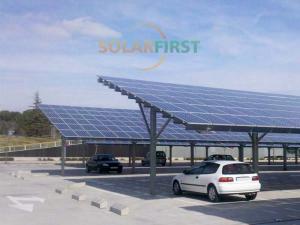

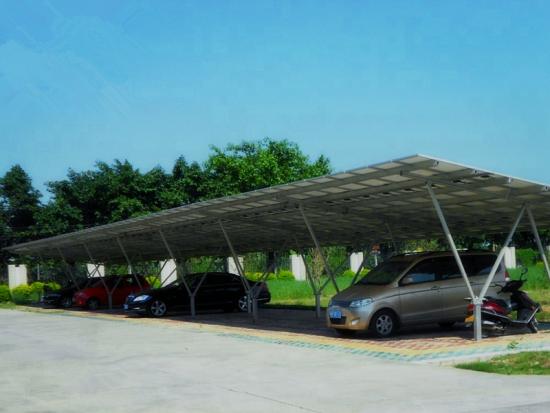

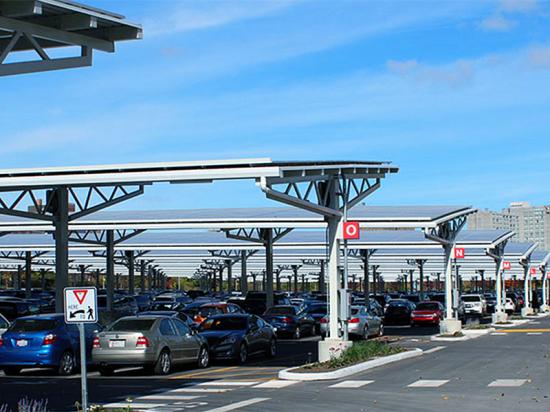

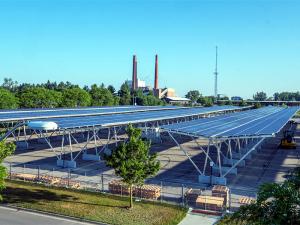

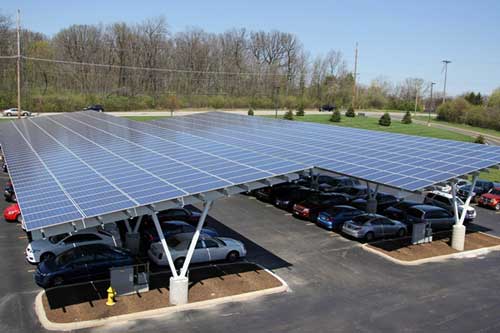

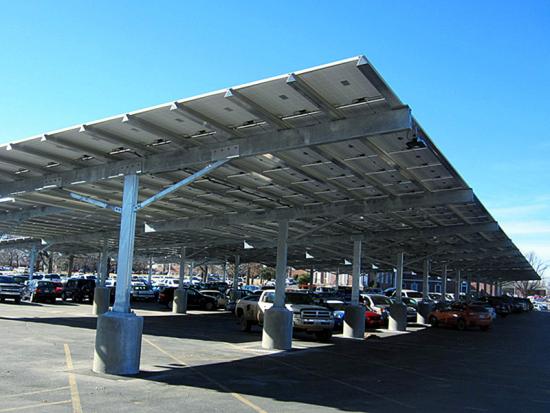

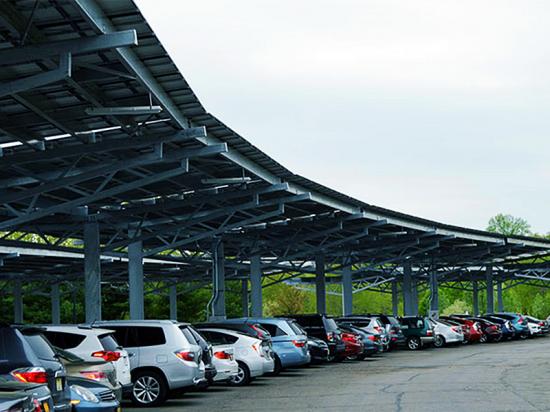

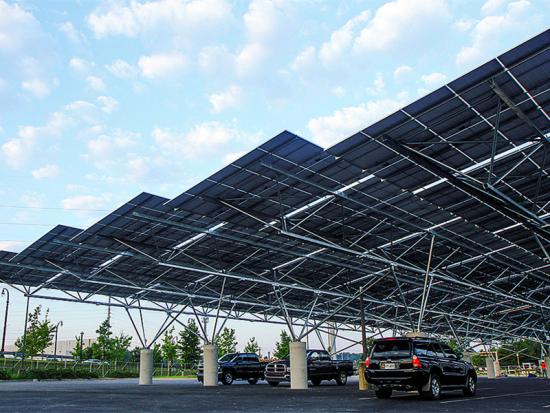

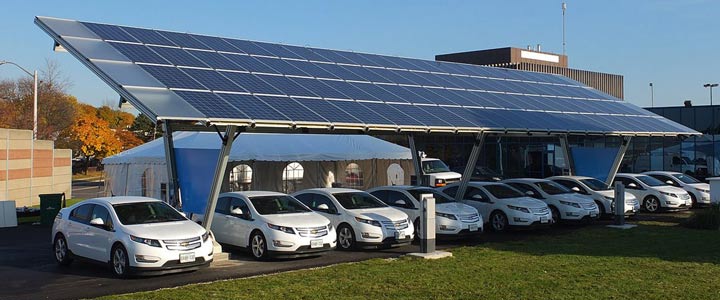

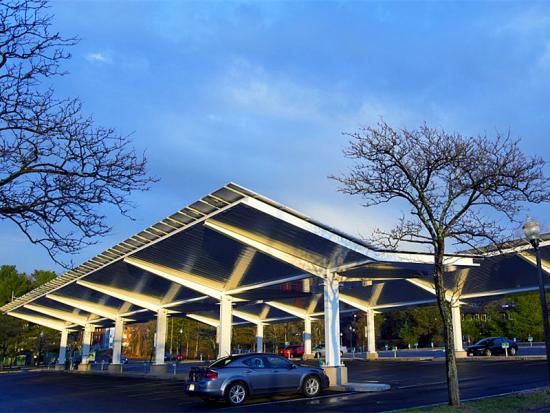

Photo Show of SolFirsTech Carport Mounting System
Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.

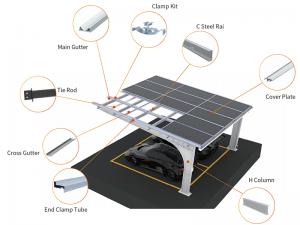

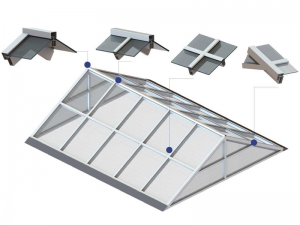

DRAINAGE OF WATER ON CARPORT Technical Details Design description: The main bracket of the carport is made of high-strength carbon steel, the rail and waterproof system are designed with aluminum alloy to meet customers' requirements for safety, installation convenience and aesthetics. Its special structural design allows multiple cars to be freely combined as a unit to maximize the use of space. Installation Ground Foundation Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Anodized AL6005-T5, Hot Dip Gavanized Steel，Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense ·Pastoral areas ·Islands ·Telecommunication base stations System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
Installation Steps Technical Details Design Description: This solution allows solar panels to generate power from sunlight, while its lower structure provides a suitable growing environment for crops, edible fungi and livestock. Installation Ground Foundation Ground Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Installation Site Tile Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Steel Pile Ground Solar Mounting System is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.
