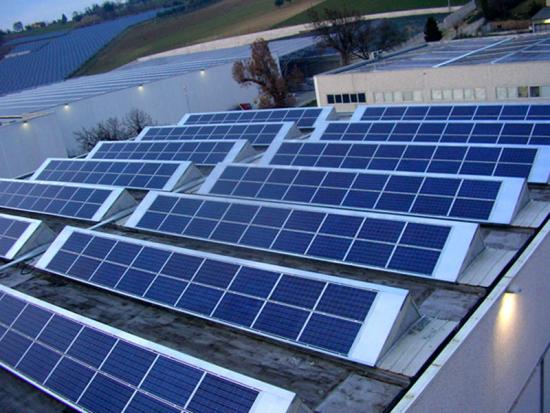

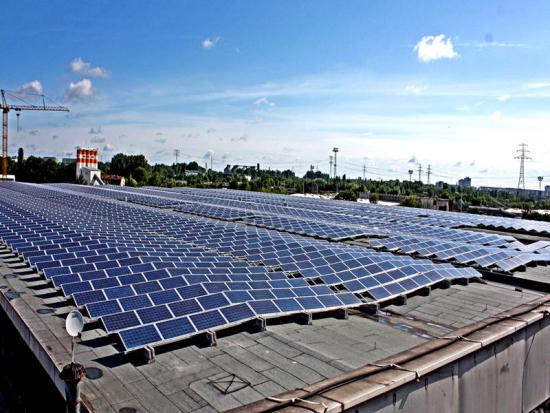

Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
Item NO.:
SF-BR-01Payment:
L/C, T/T, D/P, Western Union, PaypalPrice:
$0.049/WProduct Origin:
Fujian, ChinaColor:
NormalShipping Port:
XiamenLead Time:
within 15-30 working daysBallast Solar Roof Mounting Concrete Bracket
SolFirsTech Ballast Roof Mounting,accommadating a wide range of modules framed or frameless, is suitable for most types of roof with different roof hooks. With innovative Soalr First rail and the module, Ballast Roof Mounting enables significantly fastner and easier installation.
Specification
|
Mount Type |
Solar Panel Roof Mounting System |
|
Applicable site |
Roof |
|
Applicable Module |
Framed/Frameless panel |
|
Module Orientation |
Landscape or Portrait |
|
Wind load |
Up to130mph(60m/s) |
|
Snow load |
Up to 30pSolFirsTech(1.4KN/m2) |
|
Material |
Aluminum alloy and stainless steel 304 |
|
Warranty |
10years |
Advantages
1, Easy & Fast Installation, pre-assemblied parts to save cost and installation time.
2, Flexible post spacing withstands different wind & snow loads.
3, High quality material in HDG steel, Aluminium 6063-T5 and SUS 304.
4, Screws and nuts go with every components needed.
5, Mechanical calculation and reliability tested to ensure highest product quality.
6, 10 years system and structural guarantee.

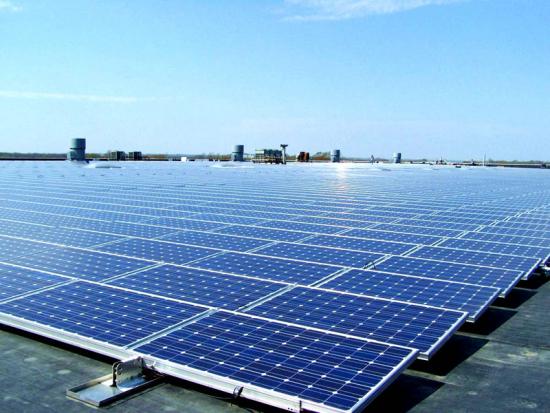

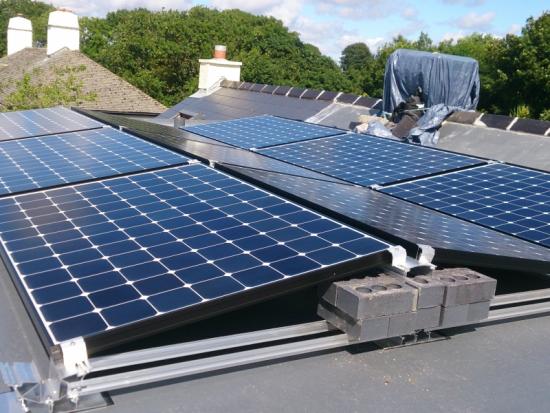

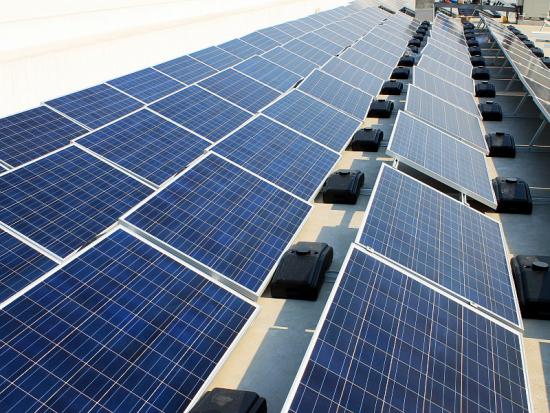

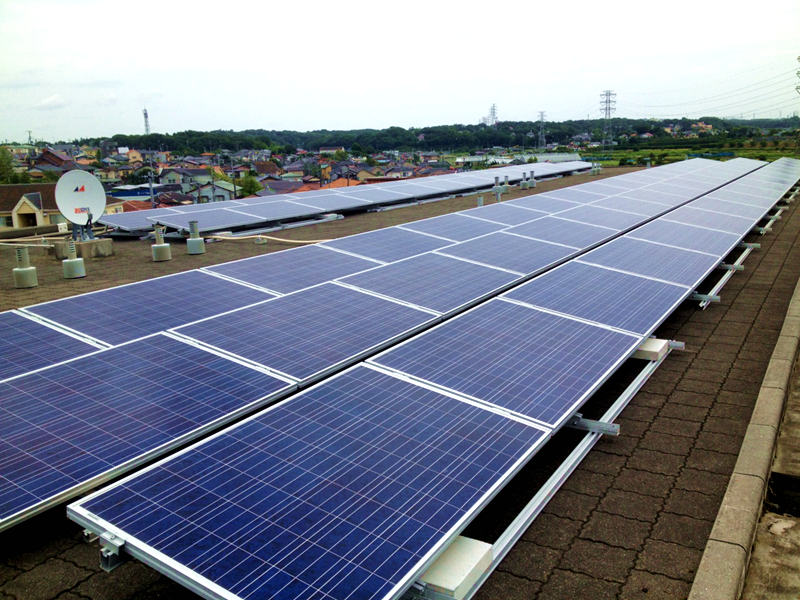

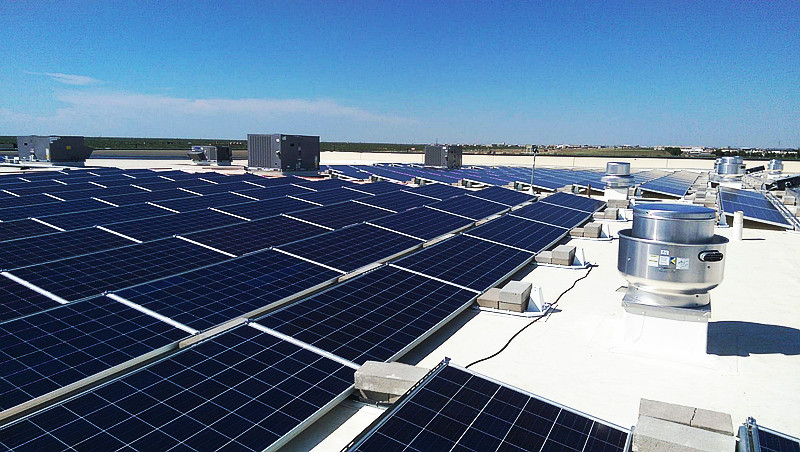

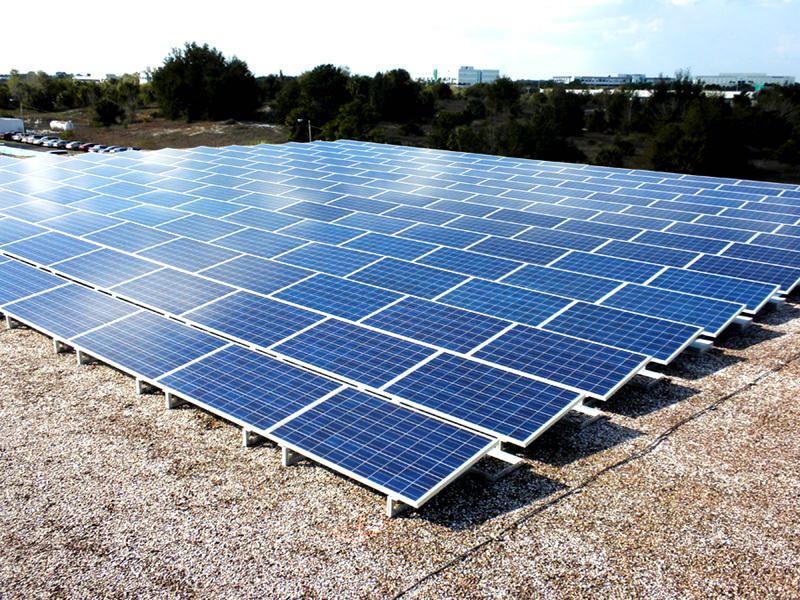

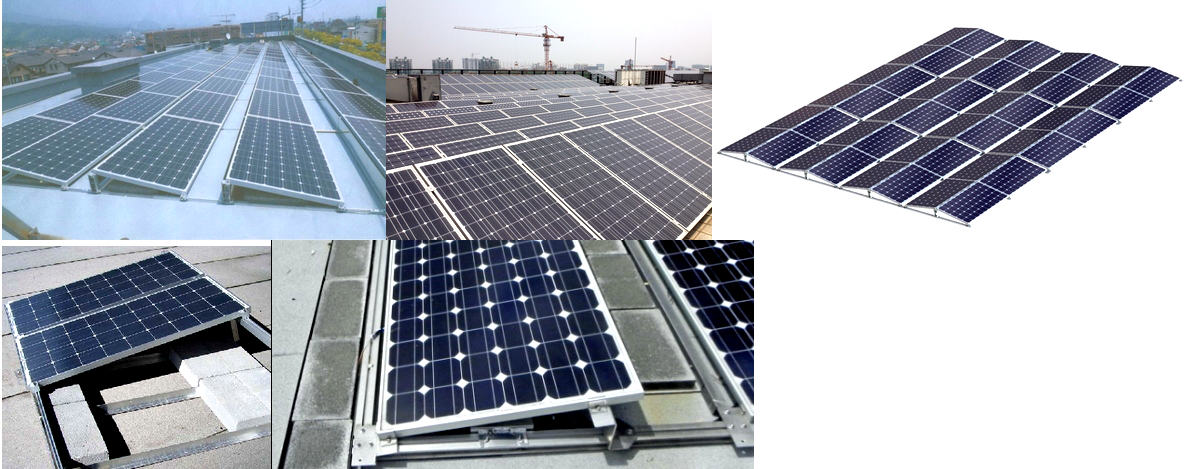

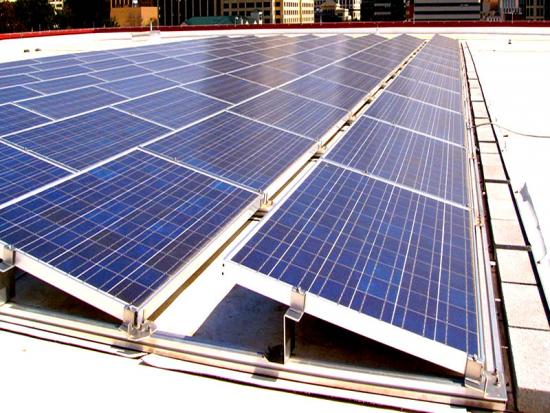

Product Show

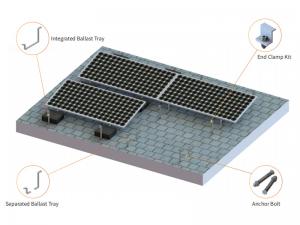

Solar First Ballast Roof Mounting Bracket is suitable for most types of roof with different roof hooks. With innovative rail and module, tile roof mount enables significantly faster and easier installation.

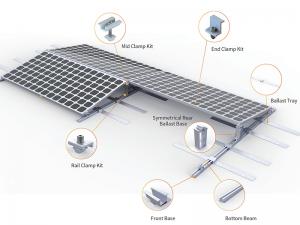

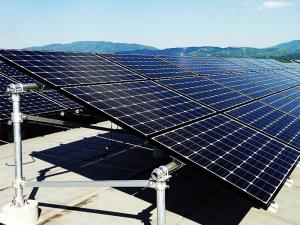

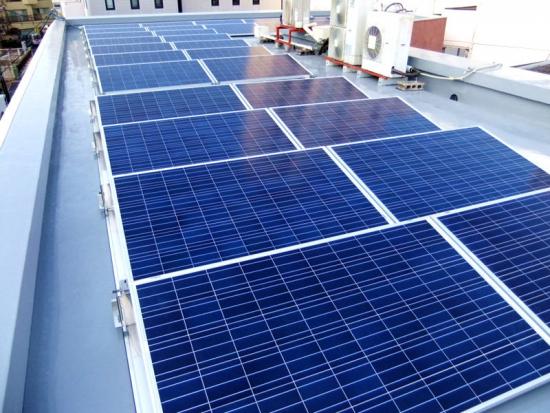

Technical Details Design Description: This solution offers fast installation with minimum components. Its structure is light with high strength and good flexibility. Installation Ground / Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m2 Tilt Angle 10°, 15°, 20° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 / Hot Dip Gavanized Steel Warranty 10 Years Warranty
Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.

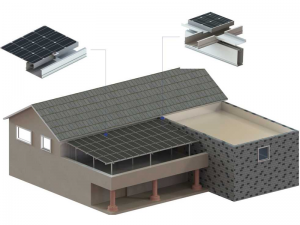

Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.

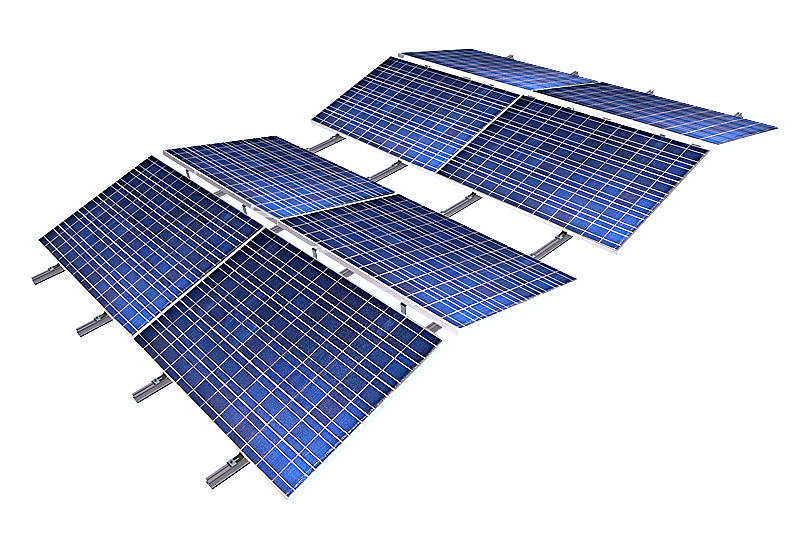

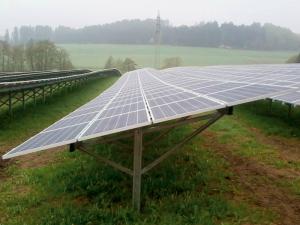

N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty

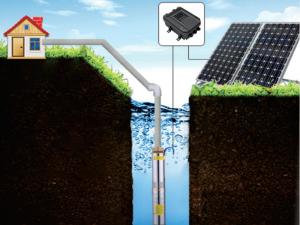

Characteristics ·Integrated, simple installation and maintenance, low operating cost, high efficiency and safety, economical and practical ·Pumping water from deep well for farmland irrigation or drinking, effectively solving the problem of water supply in areas lacking water and electricity ·Photovoltaic power generation has no noise, no other public hazards, energy saving, environmental friendly and a wide range of applications Application ·Water shortage and power shortage areas ·Pumped for deep water Solar AC Pumping System Specifications Solar panel power 1800W 2400W 3400W 4500W 6000W 8500W 13500W 22500W 31550W 40800W Solar panel voltage 210-450V 350-800V Rated power of water pump 1100W 1500W 2200W 3000W 4000W 5500W 9000 W 15000W 22000W 30000W Rated voltage of water pump AC220V AC380V Maximum lift of water pump 120m 110m 235m 120m 105m 220m 100m 160m 210m 245m Maximum flow of water pump 3.83/h 5m3/h 10m3/h 18m3/h 10m3/h 53m3/h 75m3/h Outer diameter of water pump 3 inch 4inch 6inch Pump outlet diameter 1 inch 1.25inch 1.5inch 2 inch 1.5inch 3 inch Water pump material Stainless steel Pump conveying medium Water Photovoltaic mounting type Ground mounting
One of the best things you can do for the long-term success of a photovoltaic (PV) system is to prioritize wire management during the installation process. SolFirsTech-CC-01 SolFirsTech-CC-02 SolFirsTech-CC-03 SolFirsTech-CC-04 SolFirsTech-CC-05
Horizontal Single Axis Traker
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking Application Outdoor DC power supply places System Parameters
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
