Item NO.:
SF-GS-2200Payment:
TT,LCPrice:
$9.5/PCSProduct Origin:
Xiamen,ChinaColor:
silverShipping Port:
Xiamen,ChinaLead Time:
5-15 working days
|
Product Name |
Ground Screw |
|
Connect Style |
Flange (Triangle, Square, Round, Hexagon), Bolts |
|
Material |
Hot-dip Galvanized Steel |
|
Surface Treatment |
HDG DIN EN ISO1461 |
|
Length |
300mm-3000mm |
|
Pipe OD |
48mm-219mm |
|
Pipe Wall Thickness |
1.8mm-4.0mm |
|
Flange Thickness |
8mm/10mm |
|
Warranty |
10 Years Warranty |

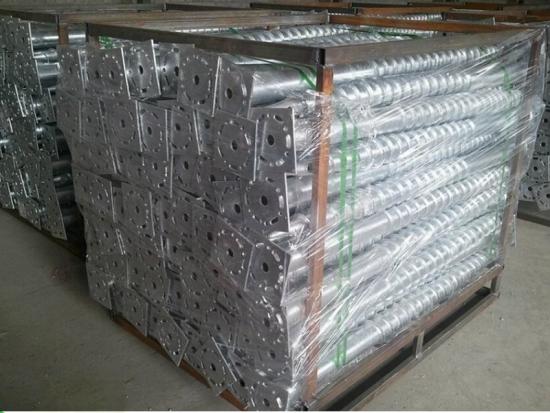

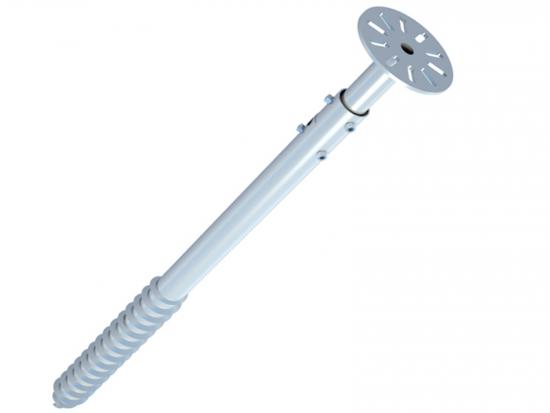

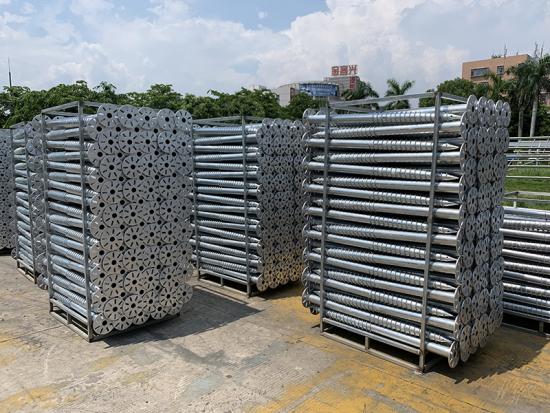

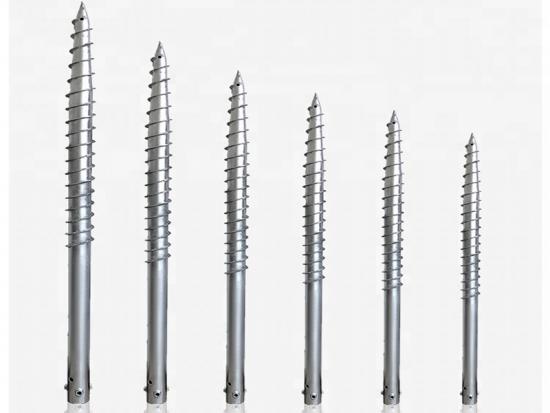

Easy installation,all kinds of length Hot Dip Galvanized Ground Screw Pile.
Whole Ground Screw can be Used for many kinds of application, like Solar System; Timer-Fram Construction; Advertising and Traffic Systems; Urban Garden and Landscape Construction; Flag Poles and so on.
Our Ground Screw is made of Q235 material. It is anti-corrosion with hot-dip galvanization and compatible with screwing machine in the open area easily. The length and size can be customized.
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Our Ground Screw is made of Carbon Steel Q235, HDG coating ≥80μm, excellent in corrosion resistance with hot-dip galvanization and compatible with screwing machine in the open area easily. Available with custom-made solution, the length and size can be customized.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
One of the best things you can do for the long-term success of a photovoltaic (PV) system is to prioritize wire management during the installation process. SolFirsTech-CC-01 SolFirsTech-CC-02 SolFirsTech-CC-03 SolFirsTech-CC-04 SolFirsTech-CC-05

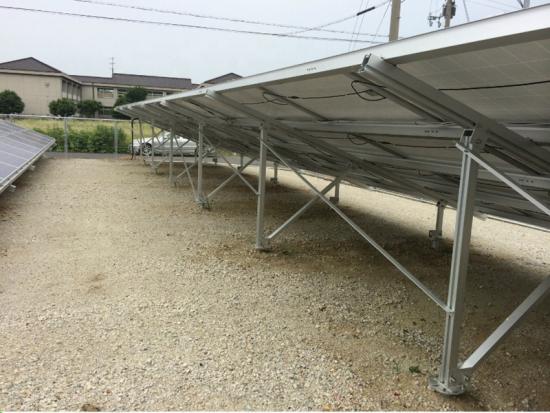

High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense ·Pastoral areas ·Islands ·Telecommunication base stations System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
