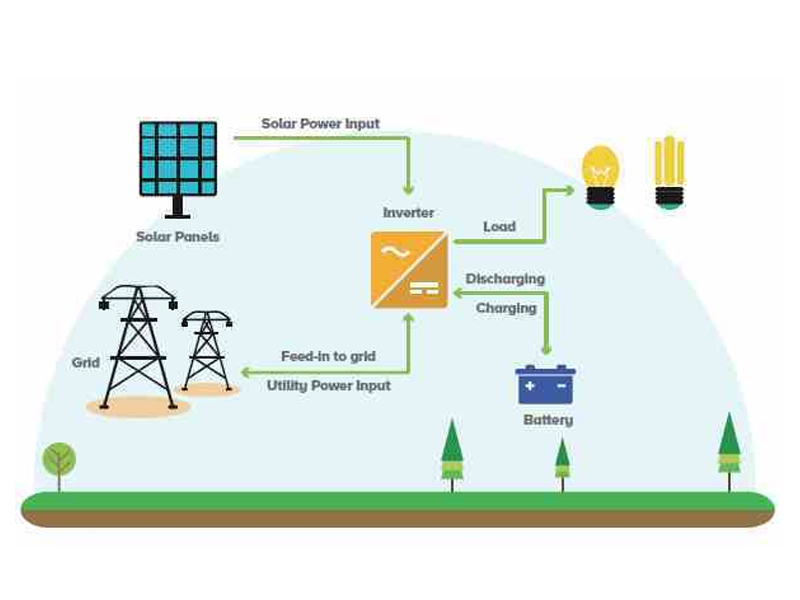

Characteristics
·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling
·Multiple working modes, so that the rate of self-use reaches 95%
·High charging and discharging efficiency, improving the economic benefits of the system
·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets
·Intelligent BMS management function to improve battery reliability
·Using high-frequency isolation technology to make the system safer and longer service life
·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants
Application
·Places where there is no spare power due to power outages or photovoltaic self-use
·Places where the electricity price for self-use is higher than the on-grid price
·Places where the peak electricity price is higher than the normal electricity price
System Parameters
|
Solar panel power |
400W |
||||||
|
Solar panel voltage |
41V |
||||||
|
Number of solar panels |
12PCS |
14PCS |
20PCS |
||||
|
Photovoltaic DC cable |
1 SET |
||||||
|
MC4 connector |
1 SET |
||||||
|
Battery voltage |
48V |
||||||
|
Battery capacity |
100Ah |
200Ah |
|||||
|
Battery communication method |
CAN/RS485 |
||||||
|
Inverter off-grid rated output power |
3KW |
5KW |
|||||
|
Maximum output apparent power on off-grid side |
4. 5KVA, 10S |
7KVA,10S |
|||||
|
Rated output voltage on off-grid side |
1/N/PE, 220V |
||||||
|
Rated output frequency on off-grid side |
50Hz |
||||||
|
Off-grid switching time |
<20ms |
||||||
|
Rated output power of inverter connected to the grid |
3KW |
3.6KW |
4.6KW |
5KW |
6KW |
||
|
Maximum output apparent power on the grid-connection side |
3.3KVA |
4KVA |
4.6KVA |
5.5KVA |
6KVA |
||
|
Rated output voltage on grid side |
1/N/PE,220V |
||||||
|
Rated output frequency on grid side |
50Hz |
||||||
|
Working temperature |
-25~+60°C |
||||||
|
Cooling method |
Natural cooling |
||||||
|
Maximum working altitude |
3KW |
||||||
|
AC output copper core cable |
1 SET |
||||||
|
Distribution box |
1 SET |
||||||
|
Auxiliary material |
1 SET |
||||||
|
Photovoltaic mounting type |
Aluminum /Carbon steel mounting （one set） |
||||||
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Ground Screw Apply carbon steel Q235 with HDG coating > 80μm, excellent in corrosion resistance. Custom-made solutions are available. DRAWING
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.
Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking Application Outdoor DC power supply places System Parameters
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤50m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤15° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Steps Technical Details Installation Ground Foundation Concrete Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Hot Dip Gavanized Steel, Anodized Aluminum AL6005-T5, Zn-Al-Mg pre-coated steel, Warranty 10 Years Warranty
Technical Details Installation Tile Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Stainless Steel SUS304 Warranty 10 Years Warranty
With innovative rail and module,our Tile Roof Mounting enables significantly faster and easier installation than others.
