Item NO.:
SF-LF-02Payment:
T/T, L/C, Western UnionPrice Range:
100 - 200/$1.25Product Origin:
Fujian, ChinaColor:
GreyShipping Port:
Xiamen,FujianLead Time:
5-25days
| Installation Site | low Profile Roof Or Flat Roof |
| Installation | Roof |
| Wind Load | 60M/S |
| Snow Load | 1.4KN/M² |
| Installation Angle | 10-60 |
| PV Modules | Framed Or Frameless |
| Module Orientation | Landscape Or Portrait |
| Standard | JIS C 8955/8956-2011 |
| GB50009-2011 | |
| AS/NZS 1170 | |
| DIN1055,IBC 2006 | |
| Material | Aluminum Alloy & Stainless Steel |
| Fastener Parts Material | Sus304 |
| Anti-Corrosive | Anodized |
| Warranty | 10 Years Guarantee And 20 Years Duration |

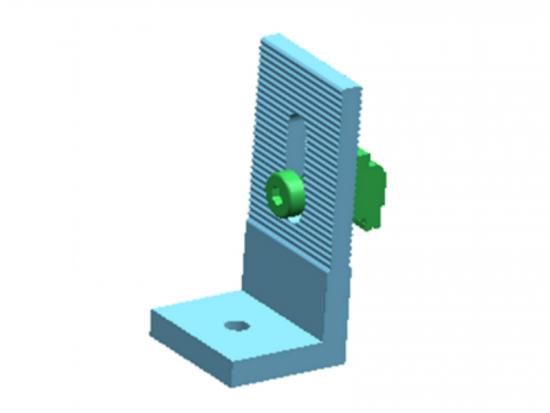

Solar L Foot use for Tin Roof PV Mounting System, with high quality and low price.

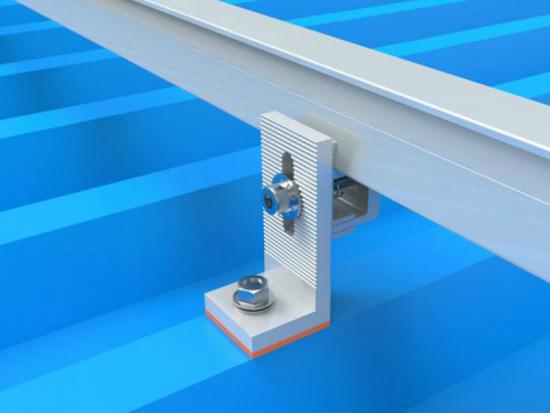

Tin Roof Solar System including L feet, rails, rail connectors etc. We can provide free design of the complete roof system.

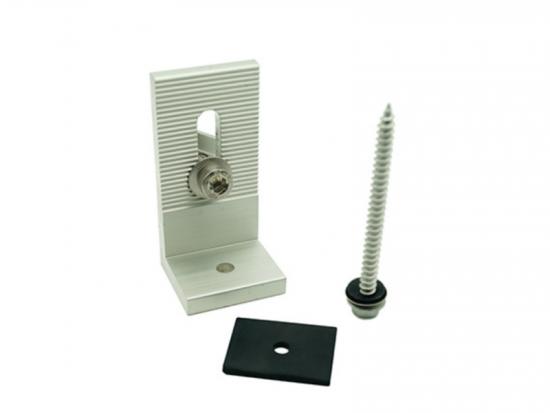

SolFirsTech Aluminum L Feet used in metal roof solar mounting system. we can provide free design and sample to test.

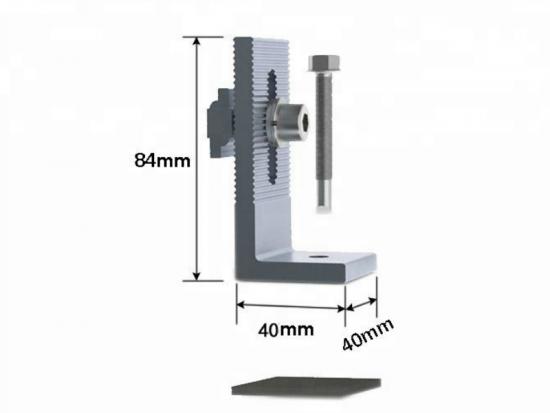

Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.

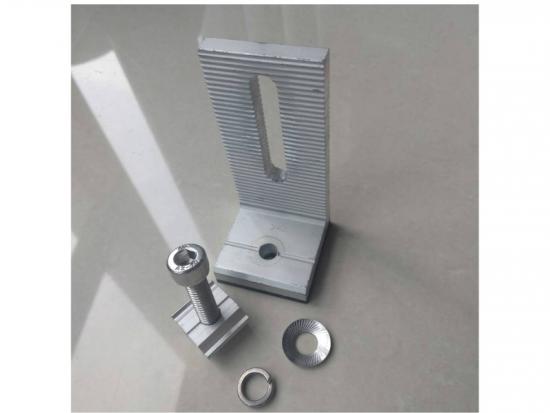

L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.

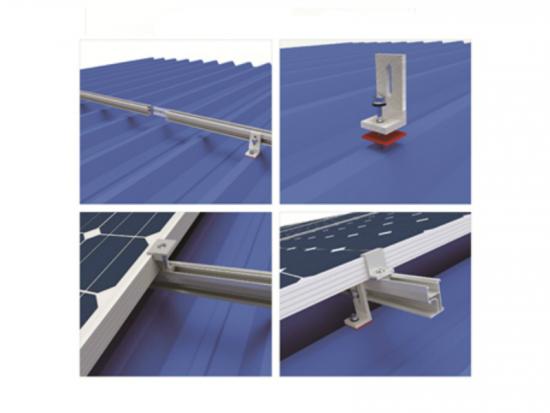

L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Design Description: Suitable for herringbone bi-directional ballasted system, which can better effectively resist the effect of negative wind pressure
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤20m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤30° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation Ground/Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5~60° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
