Item NO.:
SF-LF-01Payment:
T/T, L/C, Western UnionPrice Range:
100 - 200/$1.25Product Origin:
Fujian, ChinaColor:
GreyShipping Port:
Xiamen,FujianLead Time:
5-25days
| Installation Site | low Profile Roof Or Flat Roof |
| Installation | Roof |
| Wind Load | 60M/S |
| Snow Load | 1.4KN/M² |
| Installation Angle | 10-60 |
| PV Modules | Framed Or Frameless |
| Module Orientation | Landscape Or Portrait |
| Standard | JIS C 8955/8956-2011 |
| GB50009-2011 | |
| AS/NZS 1170 | |
| DIN1055,IBC 2006 | |
| Material | Aluminum Alloy & Stainless Steel |
| Fastener Parts Material | Sus304 |
| Anti-Corrosive | Anodized |
| Warranty | 10 Years Guarantee And 20 Years Duration |

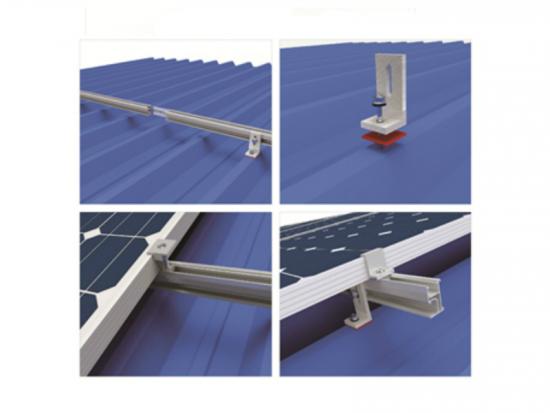

Tin Roof Solar System including L feet, rails, rail connectors etc. We can provide free design of the complete roof system.

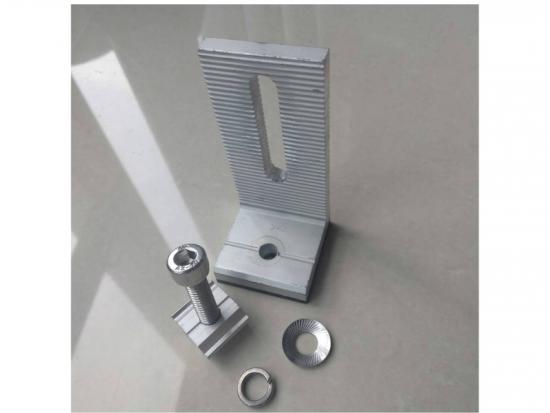

SolFirsTech Aluminum L Feet used in metal roof solar mounting system. we can provide free design and sample to test.

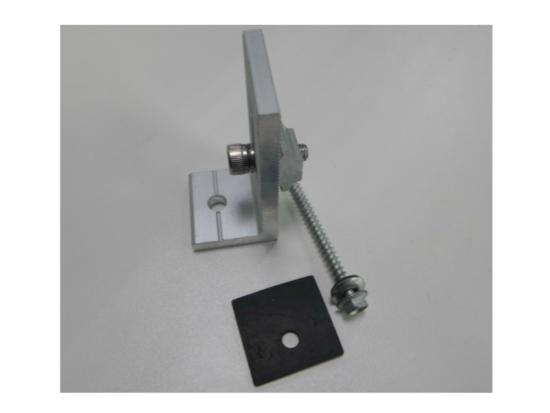

Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.

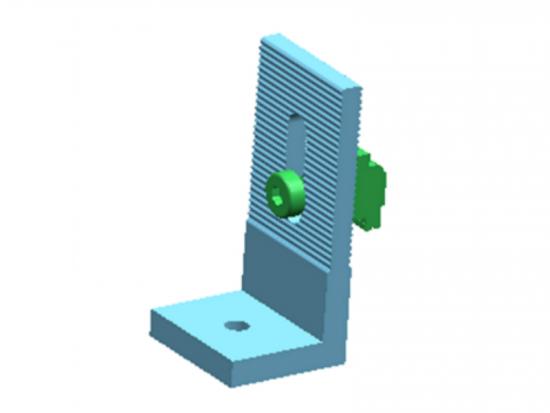

L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.

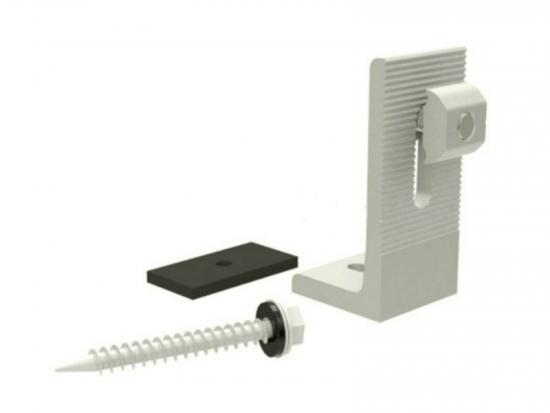

Solar L Feet is common used in Roof Solar System, it is the connector of rail and roof.

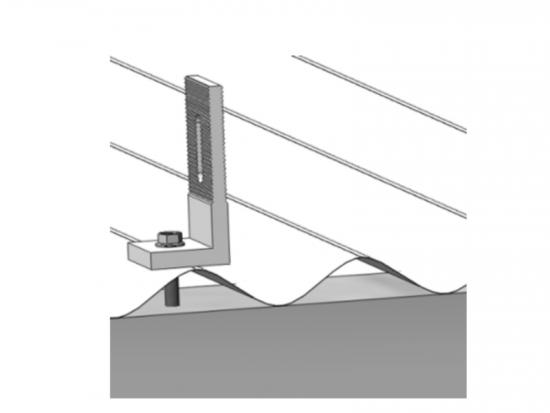

L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation Ground/Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5~60° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Characteristics ·Ultra-low starting voltage, ultra-wide voltage range ·Support anti-backflow function ·Support RS485, Wi-Fi, GPRS multiple communication methods ·Automatic voltage stabilization technology, adaptive to complex grid ·Built-in AFCI, can prevent 99% fire risk (optional) ·Easy to install and maintain Application ·Household ·Vegetable greenhouse ·Fish pond System power 3.6KW 6KW 10KW 15KW 20W 30KW Solar panel power 450W 430W 420W Number of solar panels 8 PCS 14 PCS 24 PCS 36 PCS 48 PCS 72 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 3KW 5KW 8KW 12KW 17KW 25KW Maximum output apparent power 3.3KVA 5.5KVA 8.8KVA 13.2KVA 18.7KVA 27.5KVA Rated grid voltage 1/N/PE.220V 3/N/PE,400V Grid voltage range 180~276Vac 270 〜480Vac Rated grid frequency 50Hz Grid frequency range 45~55Hz Maximum efficiency 98.20% 98.50% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Protection level IP65 Working temperature -25 〜+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
