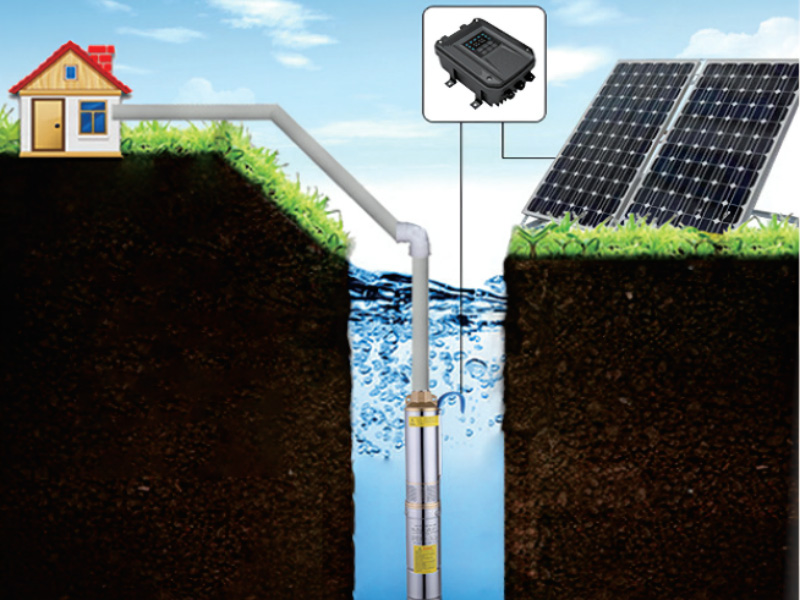

Characteristics
·Integrated, easy installation and maintenance, low operating cost, high efficiency
and safety, economical and practical
·Deep well pumping water to meet farmland irrigation or drinking by humans and animals,
effectively solving the problem of water supply in areas lacking water and electricity
·Noise free, free from other public hazards, energy saving, environmental friendly and a wide range of applications
Application
·Water shortage and power shortage areas
·Pumped for deep water
|
Solar DC Pumping System Specrfications |
||||
|
Solar panel power |
500W |
800W |
1000W |
1500W |
|
Solar panel voltage |
42-100V |
63-150V |
||
|
Rated power of water pump |
300W |
550W |
750W |
1100W |
|
Rated voltage of water pump |
DC48V |
DC72V |
||
|
Maximum lift of water pump |
35m |
50m |
72m |
|
|
Maximum flow of water pump |
3m3/h |
3. 2m3/h |
5m3/h |
|
|
Outer diameter of water pump |
3 inch |
|||
|
Pump outlet diameter |
1 inch |
|||
|
Water pump material |
Stainless steel |
|||
|
Pump conveying medium |
Water |
|||
|
Photovoltaic mounting type |
Ground mounting |
|||
Characteristics ·Integrated, simple installation and maintenance, low operating cost, high efficiency and safety, economical and practical ·Pumping water from deep well for farmland irrigation or drinking, effectively solving the problem of water supply in areas lacking water and electricity ·Photovoltaic power generation has no noise, no other public hazards, energy saving, environmental friendly and a wide range of applications Application ·Water shortage and power shortage areas ·Pumped for deep water Solar AC Pumping System Specifications Solar panel power 1800W 2400W 3400W 4500W 6000W 8500W 13500W 22500W 31550W 40800W Solar panel voltage 210-450V 350-800V Rated power of water pump 1100W 1500W 2200W 3000W 4000W 5500W 9000 W 15000W 22000W 30000W Rated voltage of water pump AC220V AC380V Maximum lift of water pump 120m 110m 235m 120m 105m 220m 100m 160m 210m 245m Maximum flow of water pump 3.83/h 5m3/h 10m3/h 18m3/h 10m3/h 53m3/h 75m3/h Outer diameter of water pump 3 inch 4inch 6inch Pump outlet diameter 1 inch 1.25inch 1.5inch 2 inch 1.5inch 3 inch Water pump material Stainless steel Pump conveying medium Water Photovoltaic mounting type Ground mounting
This series of products are mounting solutions for installing solar photovoltaic modules, inverters, combiner boxes, tranSolFirsTechormers, cables on water, such as dams, lakes, ponds, reservoirs, and coal mining subsidence areas.
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
Installation Site Tile Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Technical Details Design Description: This solution offers fast installation with minimum components. Its structure is light with high strength and good flexibility. Installation Ground / Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m2 Tilt Angle 10°, 15°, 20° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 / Hot Dip Gavanized Steel Warranty 10 Years Warranty
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Tilted Single Axis Tracker
Horizontal Single Axis Traker
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
