Payment:
T/TProduct Origin:
ChinaLead Time:
30days
Features & Characteristics

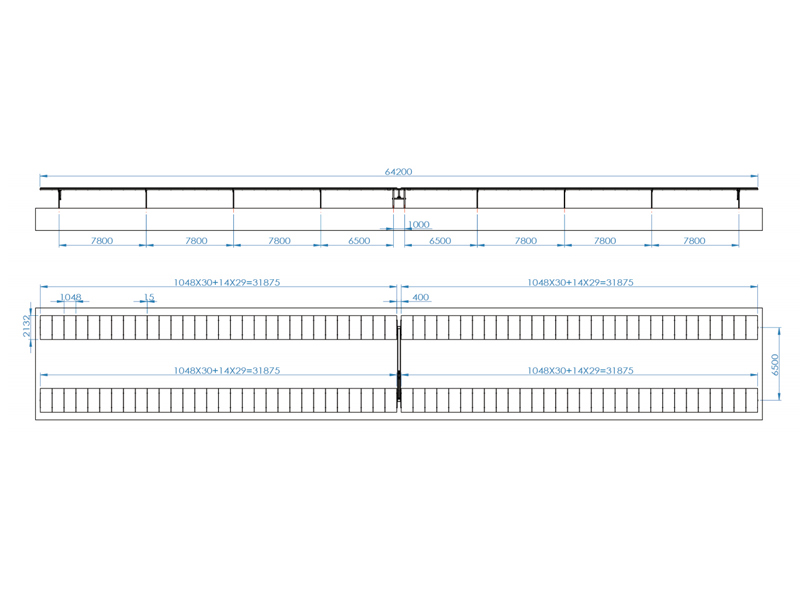

High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces)
Compatibility Compatible to 182/210mm cell solar modules
High Stability Be equipped with damper to reduce resonance under extreme environment
Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss
Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output
Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test
|

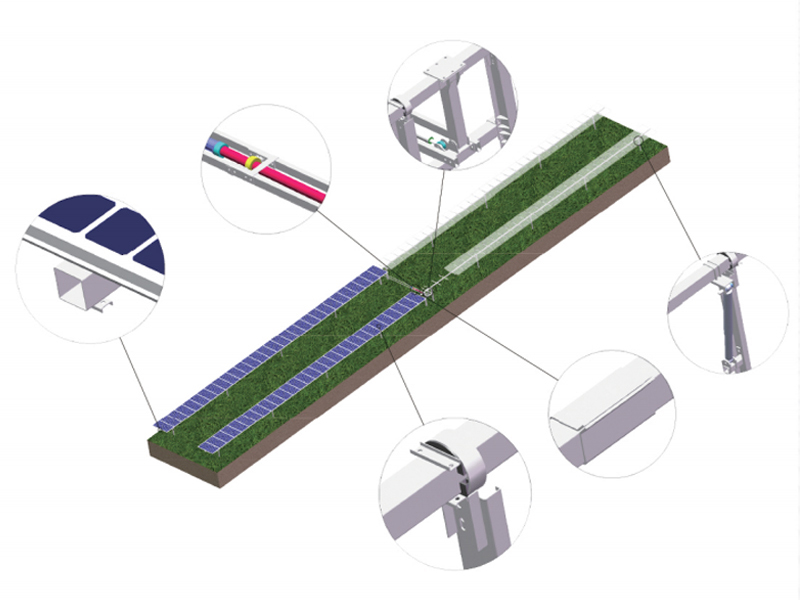

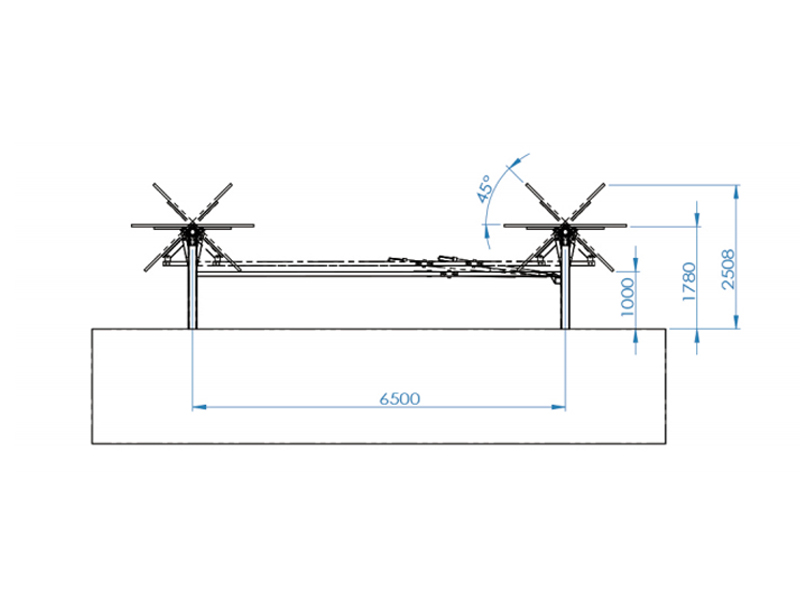

Tracker Structure |
|
|
Tracking Technology |
Horizontal Single Axis Tracker |
|
System Voltage |
1000V/1500V |
|
Tracking Range |
±50° |
|
Working Wind Speed |
18 m/s (Customizable) |
|
Max. Wind Speed |
45m/s (ASCE7-10) |
|
Max. Wind Speed |
<120 Modules (Customizable) |
|
Principal Materials |
Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel |
|
Mean Coating Thickness |
≥65 micron |
|
Drive System |
Linear Actuator |
|
Foundation type |
PHC / Cast-in-Place Pile / Steel Pile |
|
Control System |
|
|
Control System |
MCU |
|
Tracking Mode |
Closed Loop Time Control + GPS |
|
Tracking Accuracy |
<2° |
|
Communication |
Wireless (ZigBee, LoRa); Wired (RS485) |
|
Powder Acquisition |
External Supply / String Supply / Self-Powered |
|
Auto Stow at Night |
Yes |
|
Auto Stow During High Winds |
Yes |
|
Optimized Backtracking |
Yes |
|
Protection Degree |
IP65 |
|
Working Temperature |
-30°C-65°C |
|
Anemometer |
Yes |
|
Power Consumption |
0.3kWh per day |

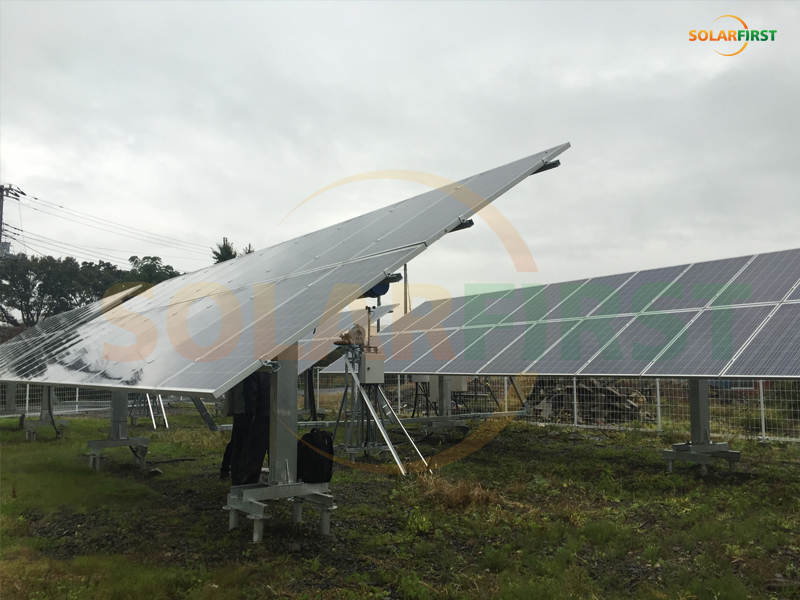

Project Reference
Horizontal Single Axis Traker
Horizontal Single Axis Traker
Horizontal Single Axis Traker
Dual Axis Traker
Tilted Single Axis Tracker
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Features & Characteristics High Stability Triangle supports and simple structure for higher stability Reliability The independent control system help to monitor the operation,find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather Tracker Structure Tracking Technology Tilted Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Inclination Angle Azimuth 5-25° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 40 m/s (ASCE 7-10) Modules per Tracker W20 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2。 Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time, clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection) Application ·Home ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V 48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set 1 100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694
Introduction: SolFirsTechPVROOF is a series of steel waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic，an eco-friendly substitution to the traditional skylight.
SolFirsTech Tilted Tile Roof Solar Bracket is suitable for installing framed and frameless modules flushed to the tilted roof. The professional design make the istallation more easily and quickly. High preassembly parts and customized solution to save your install time and money.
