Horizon S Series Solar Tracking Systems

Horizon D Series Single Point Drive Solar Tracking Systems

Horizontal Single Axis Traker

Horizon D+ Series Solar Tracking Systems

Horizontal Single Axis Traker

Duo Series Solar Tracking Systems

Dual Axis Traker

Tilt Series Solar Tracking Systems

Tilted Single Axis Tracker

Horizon D Series Single Point Drive Single Axis Solar Tracking Systems

Features & Characteristics High Adaptability  Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles  The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility   Compatible to 182/210mm cell solar modules Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability   The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking   Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design  The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day

Horizon D+ Series Multi-Point Drive Single Axis Solar Tracking Systems

Features & Characteristics High Adaptability High Adaptability  Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability  The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility  Compatible to 182/210mm cell solar modules Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability  The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design  The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference

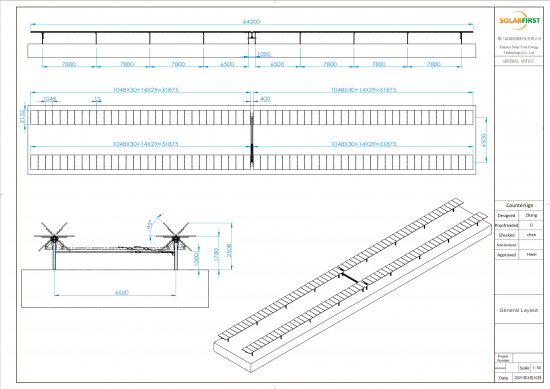

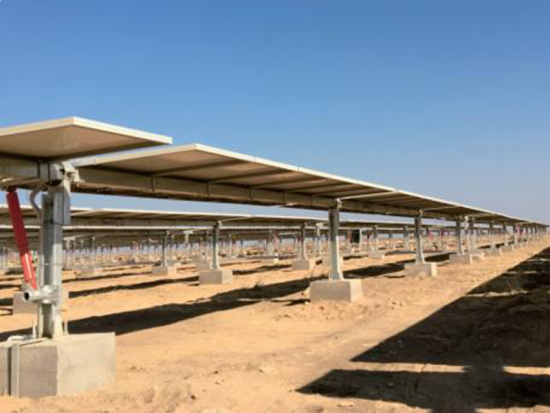

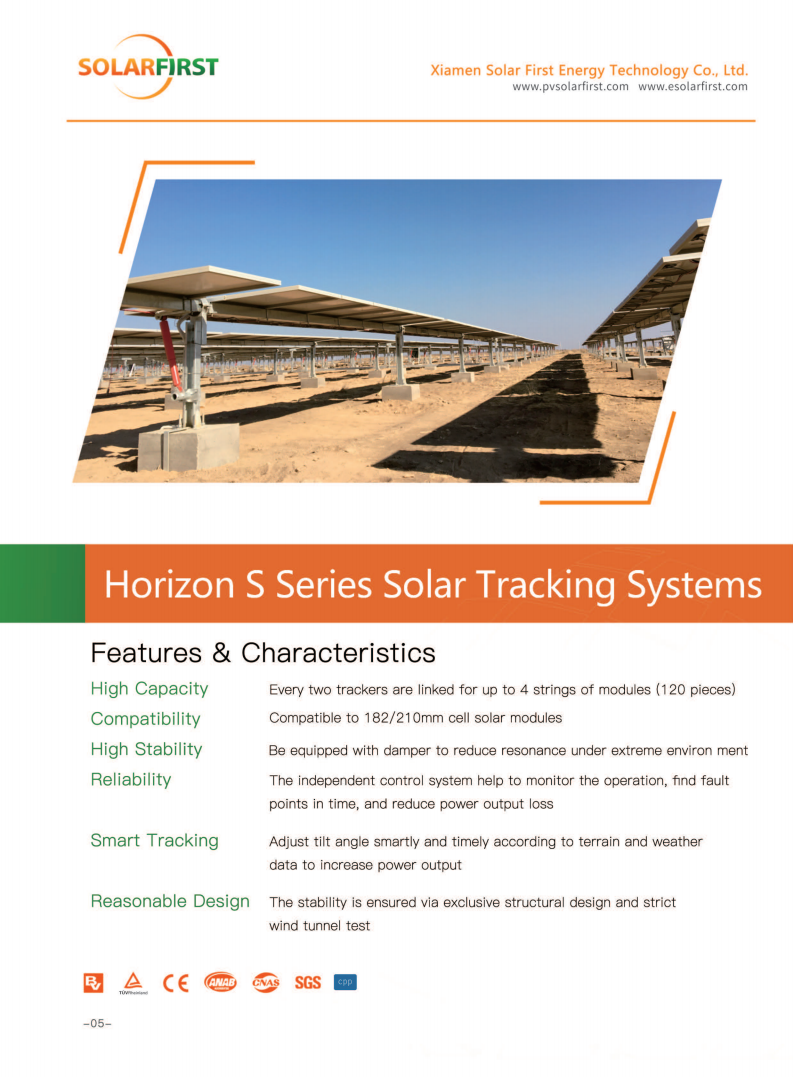

Horizon S Series Linked Single Axis Solar Tracking Systems

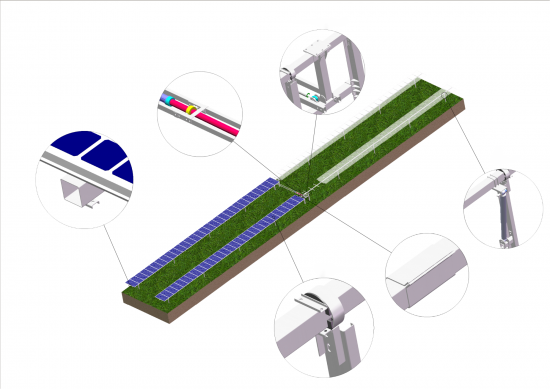

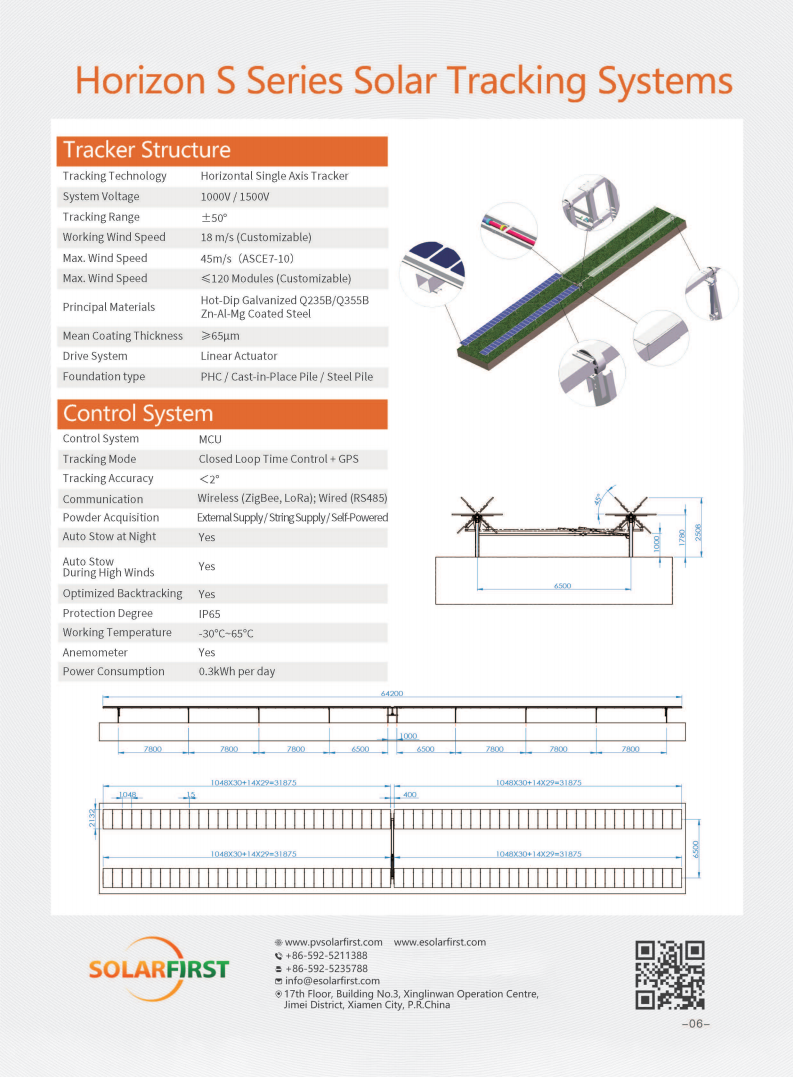

Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility  Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability  The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design   The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference

Duo Series Dual Axis Solar Tracking Systems

Features & Characteristics High Adaptability   Adapt to almost all terrain High Stability  Herringbone structure, multi-point support, square mesh shape design Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability    Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference

Tilt Series Tilted Single Axis Solar Tracking Systems

Features & Characteristics High Stability  Triangle supports and simple structure for higher stability Reliability  The independent control system help to monitor the operation,find fault points in time, and reduce power output loss Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather Tracker Structure Tracking Technology Tilted Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Inclination Angle Azimuth 5-25° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 40 m/s (ASCE 7-10) Modules per Tracker W20 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2。 Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference

SolFirsTech BIPV ROOF MOUNT

Portable PV System

Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking   Application Outdoor DC power supply places   System Parameters

SolFirsTech METAL ROOF MOUNT - L FOOT

L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
