Item NO.:
SF-GM-003Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram.Product Origin:
Xiamen ChinaShipping Port:
XiamenLead Time:
2 weeksProduct Description:

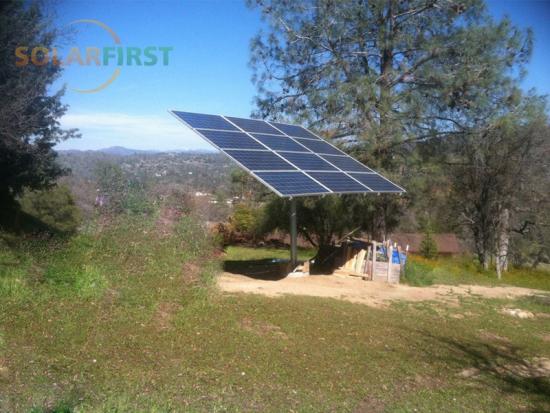

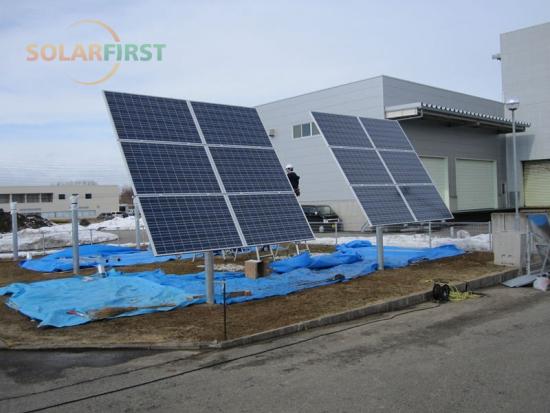

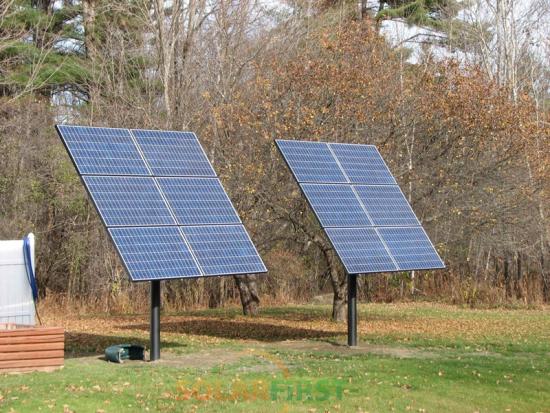

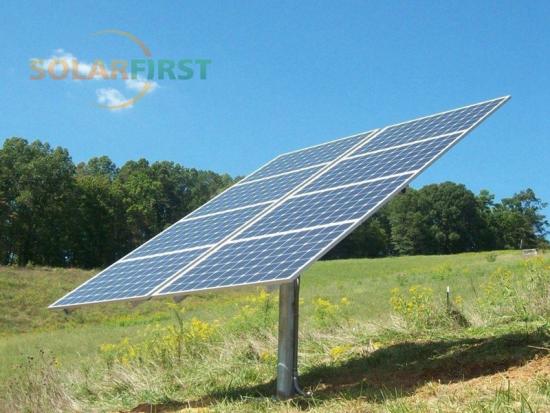

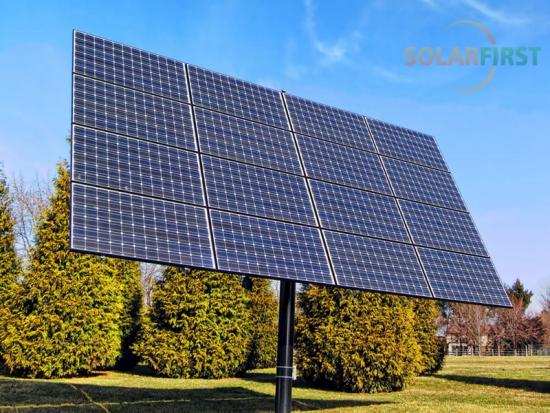

Pole ground mount system is a ground solar panel mounting system on one single pole that delivers flexible, effective and durable design to mount 4.6.8.10 panels per pole. It can be applied to large commercial scale installations, and the pole system is customized with hot-galvanized steel and aluminum which offers good corrosion-resistant capability. The single pole mounting system can be designed to be adjustable if required by the customer.
Advantage:
1.One single pole delivers flexible and effective.
2.Durable design to mount 4, 6, 8 or 10 panels per pole.
3.It can be applied to large commercial scale installation.
4.Hot-galvanized steel and aluminum offers good corrosion-resistant capability.
5.Efficient structural design can save 20% installation time and labor cost.
Product Parameter:
|
Installation Site: |
Ground |
|
Applicable Roof Cladding: |
Suitable for most types of cladding |
|
Slop: |
Up to 60o |
|
Max. Building Height: |
Up to 65ft(20m) |
|
Wind Load: |
130mph(60m/s) |
|
Snow Load: |
30pSolFirsTech(1.4kN/m2) |
|
Applicable Module: |
Framed |
|
Module Orientation: |
Landscape or portrait |
|
Code Compliance: |
AS/NZS 1170; JIS C8955:2011 |
|
Material: |
Aluminum, stainless steel |
|
Warranty: |
10 years on material |
Application:
Installation Steps Available Types of Columns Technical Details Design Description: especially suitable for hillsides and uneven ground areas. Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m2 Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 Material Anodized AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.
Whole Ground Screw can be Used for many kinds of application, like Solar System; Timer-Fram Construction; Advertising and Traffic Systems; Urban Garden and Landscape Construction; Flag Poles and so on.
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Why Fence ·To effectively protect personnel safety both inside and outside the project site. ·To prevent theft.
Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.
With variety of different Tin Roof Brackets, SolFirsTech Tin Roof Mounting System can meet trapezoid or corrugated metal roof and standing seam roof demand with or without penetrating on the roofs.
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
