Floating Mounting System

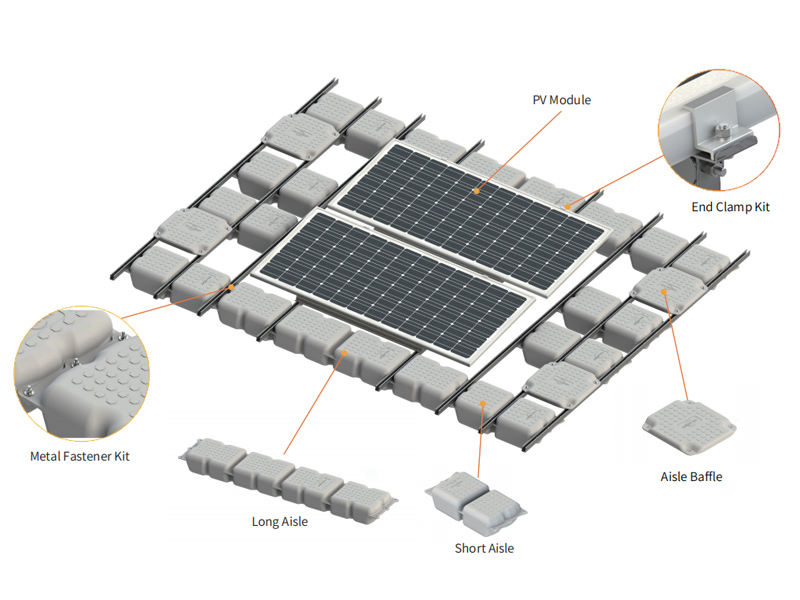

Structure

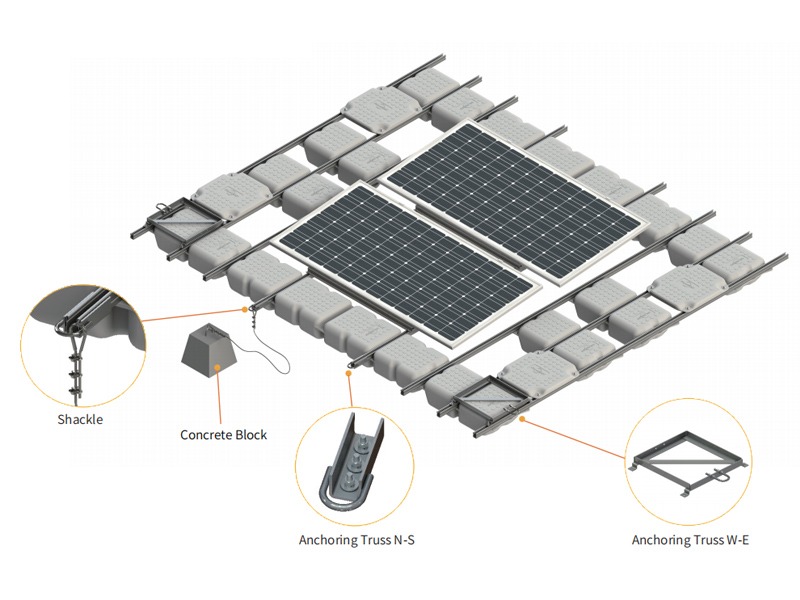

Anchoring System

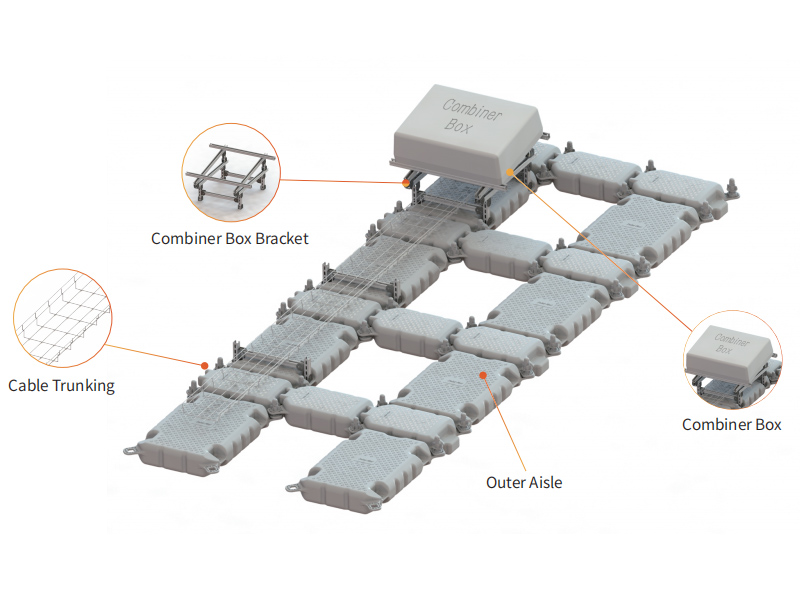

Combiner Box Bracket, Cable Trunking, Aisle

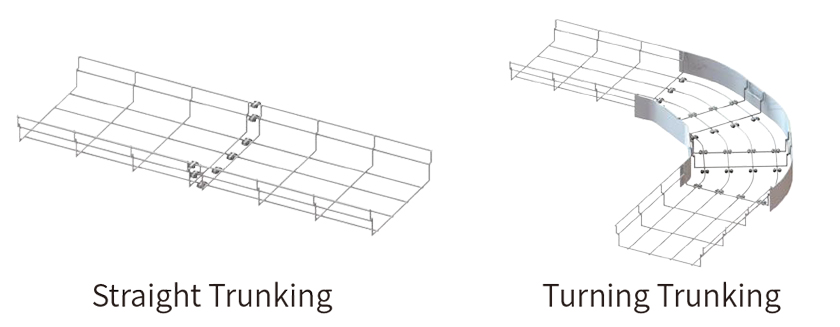

Types of Trunkings
Technical Details
Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation.
2. The bracket is made of aluminum alloy for fireproof.
3. Easy to install without heavy equipment; safe and convenient to maintain.
Installation
Water Surface
Surface Wave Height
≤0.5m
Surface Flow Rate
≤0.5m/s
Wind Load
≤36m/s
Snow Load
≤0.45kn/m²
Tilt Angle
0~25°
Standards
GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017
Material
HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304
Warranty
10 Years Warranty

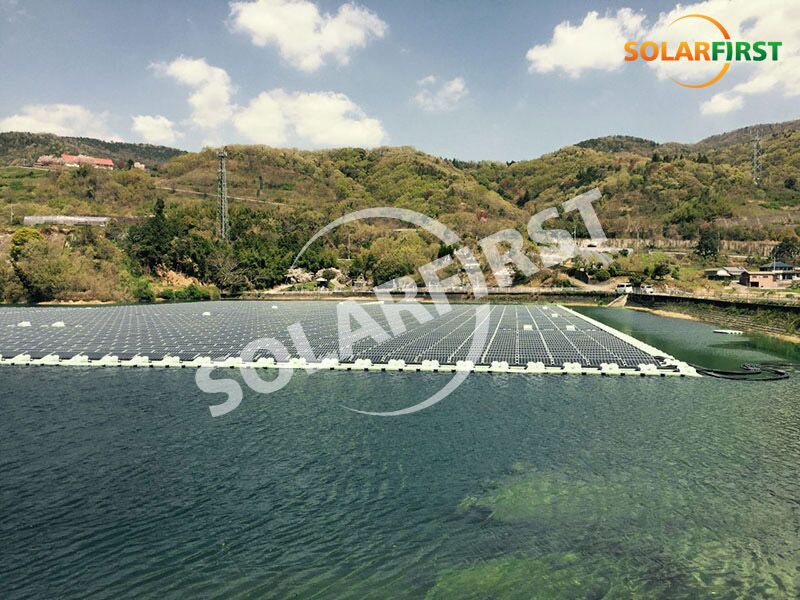

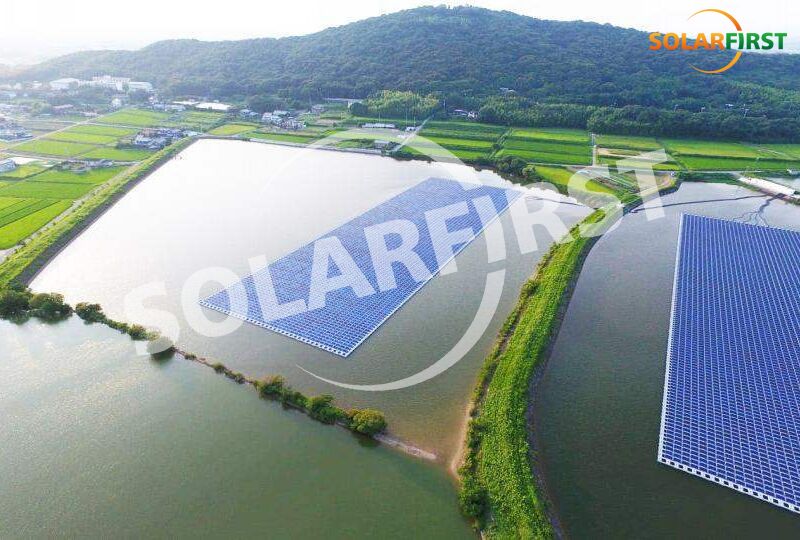

Project Reference
The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof. With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
This series of products are mounting solutions for installing solar photovoltaic modules, inverters, combiner boxes, tranSolFirsTechormers, cables on water, such as dams, lakes, ponds, reservoirs, and coal mining subsidence areas.
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System.Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
This solution is also applicable on ground or concrete roof with small inclination. Its structure is light with high strength and good flexibility.
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°） SolFirsTech-RC-15 76 21(R) 112 SolFirsTech-RC-16 76 21(R) 112 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Why Fence ·To effectively protect personnel safety both inside and outside the project site. ·To prevent theft.
Features & Characteristics High Stability Triangle supports and simple structure for higher stability Reliability The independent control system help to monitor the operation,find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather Tracker Structure Tracking Technology Tilted Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Inclination Angle Azimuth 5-25° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 40 m/s (ASCE 7-10) Modules per Tracker W20 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2。 Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
