/Aluminum Thin Film Frameless Solar panel Mid Clamp and End Clamp
Item NO.:
SF-TF-01Payment:
T/T,L/C,D/PPrice:
$0.059/pcsProduct Origin:
ChinaColor:
silver blackShipping Port:
Xiamen,ChinaLead Time:
10-15 working daysProduct Description
Aluminum Thin Film Frameless Solar panel
Mid Clamp and End Clamp
Materials
Al 6005-T5
AL 6063, AL 6003 available
Size
80mm, 120mm, 150mm
OEM available
Applicable Module
6-9mm frameless thin film solar module
Components
Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Surface
Anodized or Black Electrophoresis
Certification
ISO, SGS, Aluminum testing report.
Warranty
12 years
Introduction

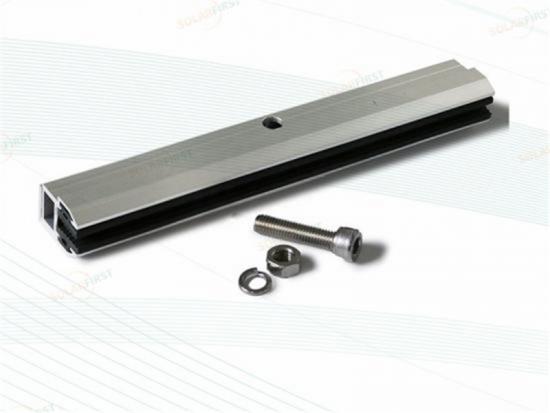

Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.

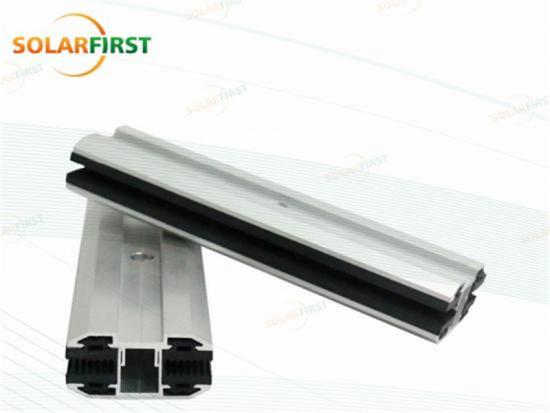

Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Solar panel mounting system for klip lok type metal roofing sheet.
Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Flashing on Roof Technical Details Design Description: Apply the flashing to prevent water leakage effectively. Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
