Characteristics
·Patented lens, bat-wing light distribution, light is well-distributed
·Intelligent control system to reduce the power consumption of the whole lamp
·Whole lamp is easy to assemble and easy to maintain
·High cycle times, economical and practical
Application
·Garden ·Plaza ·Industrial city and country road ·Highway
|

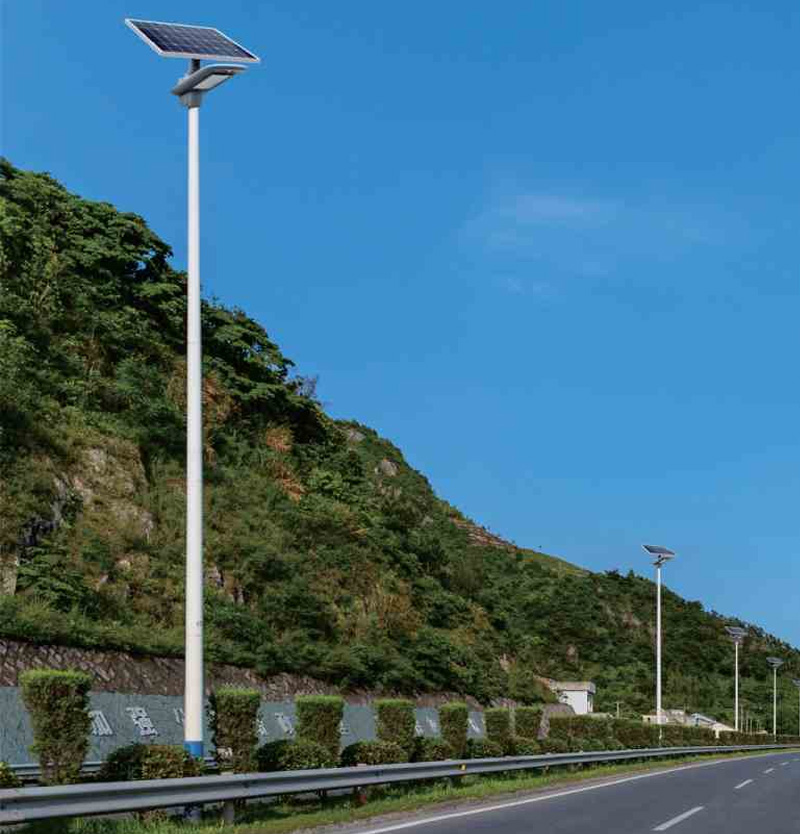

Solar Street Light Specifications |
|||||
|
Solar panel power |
85W±15% |
120W±15% |
150W±15% |
240W±15% |
240W±15% |
|
battery capacity |
12V/100Ah |
12V/150Ahx2 |
12V/100Ahx2 |
12V/150Ahx2 |
|
|
Battery Type |
Lead-acid batteries(Gel) |
||||
|
Main light power |
30W |
40W |
50W |
80W |
100W |
|
Color temperature |
4000K |
||||
|
Height of the whole lamp |
6.0m |
7.0m |
8.0m |
9.0m |
9.0m |
|
Operating temperature |
-20°C~55°C |
||||
|
Windproof strength |
27m/s（Wind grade 10） |
||||
|
Rainy days |
5~7 Days |
||||

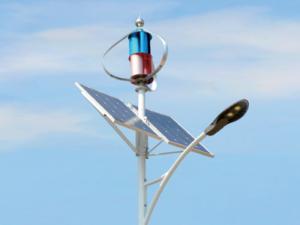

Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Road lighting ·Landscape lighting ·Schools ·Remote countryside ·Agriculture and animal husbandry Wind-solar Hybrid Street Light Specifications Solar panel power 120W±15% 150W±15% 240W±15% 300W±15% Horizontal axis wind turbine 200W 300W 400W 500W Wind and solar hybrid controller 1 SET Battery capacity 12V/150Ah 12V/100Ahx2 12V/150Ahx2 12V/200Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 7.0m 8.0m 9.0m 10.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind Grade 10) Rainy days 5〜7 days
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc

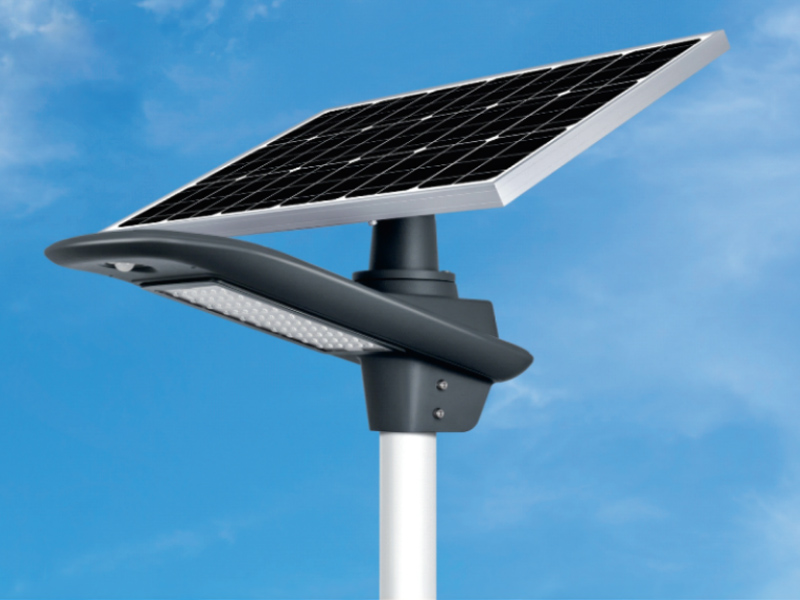

Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport Application ·Garden ·Plaza ·Residential area System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.
Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Characteristics ·Ultra-low starting voltage, ultra-wide voltage range ·Support anti-backflow function ·Support RS485, Wi-Fi, GPRS multiple communication methods ·Automatic voltage stabilization technology, adaptive to complex grid ·Built-in AFCI, can prevent 99% fire risk (optional) ·Easy to install and maintain Application ·Household ·Vegetable greenhouse ·Fish pond System power 3.6KW 6KW 10KW 15KW 20W 30KW Solar panel power 450W 430W 420W Number of solar panels 8 PCS 14 PCS 24 PCS 36 PCS 48 PCS 72 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 3KW 5KW 8KW 12KW 17KW 25KW Maximum output apparent power 3.3KVA 5.5KVA 8.8KVA 13.2KVA 18.7KVA 27.5KVA Rated grid voltage 1/N/PE.220V 3/N/PE,400V Grid voltage range 180~276Vac 270 〜480Vac Rated grid frequency 50Hz Grid frequency range 45~55Hz Maximum efficiency 98.20% 98.50% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Protection level IP65 Working temperature -25 〜+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C D SolFirsTech-RC-01 18 13.5 10.5 10 SolFirsTech-RC-02 26 12 10.5 18 SolFirsTech-RC-03 35 21.6 2.5 31.5 SolFirsTech-RC-04 16.3 16.3 2.5 12 SolFirsTech-RC-05 15 12.2 10 10 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
