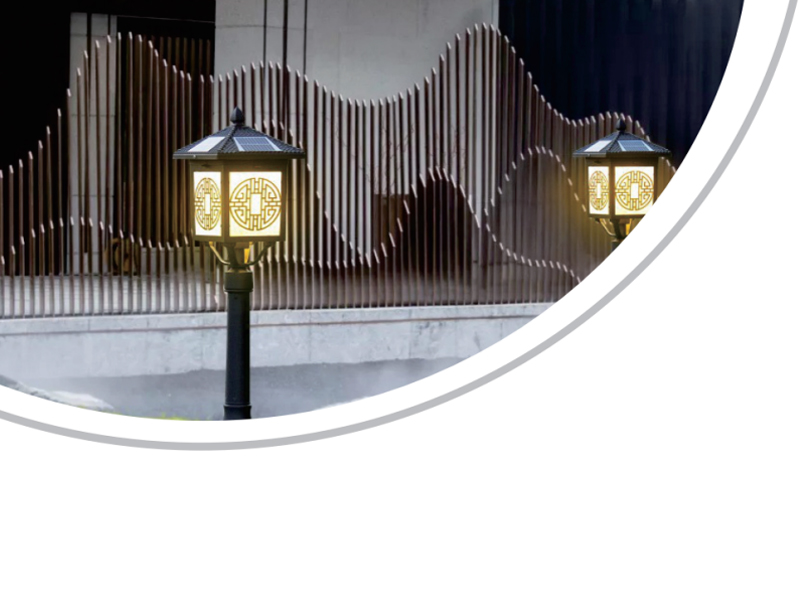

Characteristics
·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving
·Adopt intelligent power regulation technology
·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving
·The detachable light pole is easy to install and transport
Application
·Garden ·Plaza ·Residential area
System Parameters
|
Solar panel power |
48W±15% |
|
Battery Type |
Lead-acid batteries |
|
Battery capacity |
I12V/80Ah |
|
Total power of light source |
21W |
|
Main light color temperature |
3000K 〜6000K |
|
Applicable temperature range |
20°C 〜55°C |
|
Height of the whole lamp |
4. 3m |
|
Windproof strength |
27m/s (Wind grade 10) |
|
Rainy days |
5~7 Days |
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Road lighting ·Landscape lighting ·Schools ·Remote countryside ·Agriculture and animal husbandry Wind-solar Hybrid Street Light Specifications Solar panel power 120W±15% 150W±15% 240W±15% 300W±15% Horizontal axis wind turbine 200W 300W 400W 500W Wind and solar hybrid controller 1 SET Battery capacity 12V/150Ah 12V/100Ahx2 12V/150Ahx2 12V/200Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 7.0m 8.0m 9.0m 10.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind Grade 10) Rainy days 5〜7 days
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Garden ·Plaza ·Industrial city and country road ·Highway Solar Street Light Specifications Solar panel power 85W±15% 120W±15% 150W±15% 240W±15% 240W±15% battery capacity 12V/100Ah 12V/150Ahx2 12V/100Ahx2 12V/150Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 30W 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 6.0m 7.0m 8.0m 9.0m 9.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind grade 10） Rainy days 5~7 Days
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤20m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤30° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
Design Description: Suitable for herringbone bi-directional ballasted system, which can better effectively resist the effect of negative wind pressure
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
SolFirsTech Carport Mounting System product introduction specializes in SolFirsTech carport mounting manufacturing and designing to meet the needs of various pole mount installation.
