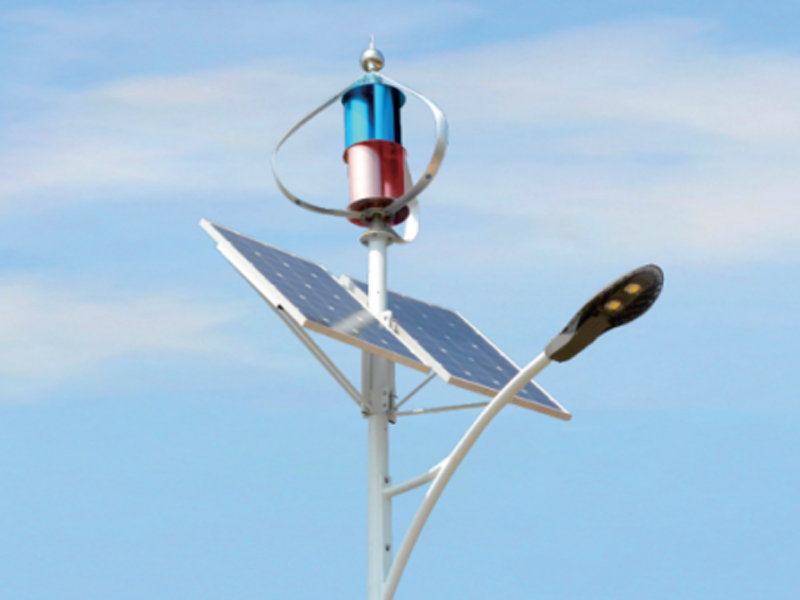

Wind-solar Hybrid Street Light

Smart Street Light

Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock   Application ·High-tech park       ·Tourist scenic area       ·Park plaza       ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc

Solar Garden Light

Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport   Application ·Garden ·Plaza ·Residential area   System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days

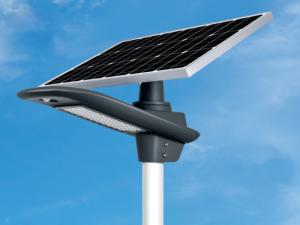

Solar Street Light

Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Garden ·Plaza ·Industrial city and country road ·Highway Solar Street Light Specifications Solar panel power 85W±15% 120W±15% 150W±15% 240W±15% 240W±15% battery capacity 12V/100Ah 12V/150Ahx2 12V/100Ahx2 12V/150Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 30W 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 6.0m 7.0m 8.0m 9.0m 9.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind grade 10） Rainy days 5~7 Days

Industrial & Commercial PV Grid-connected System

Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life   Application ·Distributed ·Roofs   ·Hotels ·Factories   ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

Steel Ground Solar Mounting Structure Ground Screw Solar Power System

Ground Screw Solar Mounting System main structure is HDG steel, beautiful appearance, strong structure and reliable. And can be customized according to customer requirements of different angle bracket.

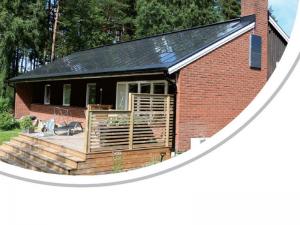

SolFirsTech BIPV ROOF MOUNT

BIPV Sunroom

SolFirsTechPVROOM series PV sunrooms are built with tempered glass and metal frame structure. The sunroom solutions provide functions of power generation, windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Tempered glass + metal frame structure + solar photovoltaic, an eco-friendly substitution to the traditional sunroom.

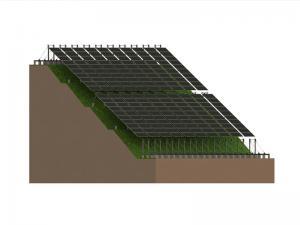

SolFirsTech FLAT GROUND MOUNT - MULTI-ROW TYPE, I TYPE

Multi-Row Type Structure Multi-row module installation design may increase land utilization rate, improve power generation efficiency, and raise economic benefits. Recommended tilt angle: Less than 15° Recommended environment: High snow load and wind load. l-Type Structure The structure is fixed by two open posts. It is stable, and convenient in installation. Recommend ed environment: Low snow and wind load. Technical Details Installation  Ground Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty  10 Years Warranty

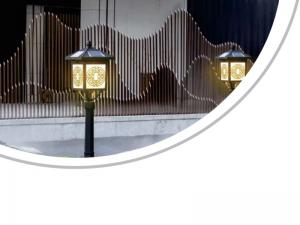

Outdoor Waterproof Solar Garden Light

Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.

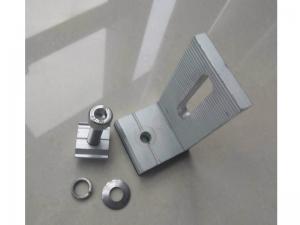

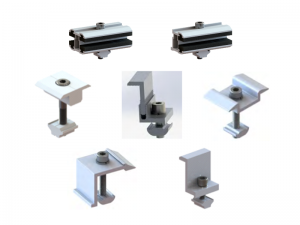

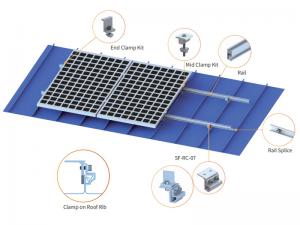

SolFirsTech METAL ROOF MOUNT - U RAIL

SolFirsTech-RC Roof Clamp Series Technical Details Installation  Metal Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

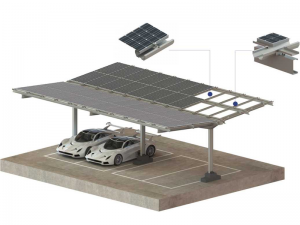

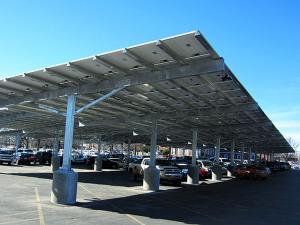

SolFirsTech Steel Cantilever Carport

Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.

Horizon D+ Series Multi-Point Drive Single Axis Solar Tracking Systems

Features & Characteristics High Adaptability High Adaptability  Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability  The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility  Compatible to 182/210mm cell solar modules Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability  The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design  The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
