Design Description: Suitable for herringbone bi-directional ballasted system, which can better effectively resist the effect of negative wind pressure |
|
|
Installation |
Ground/Concrete Roof/Fence |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
≥3° |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 |
|
Material |
Anodized Aluminum AL6005-T5, Stainless Steel SUS304, Hot Dip Galvanized Steel |
|
Warranty |
10 Years Warranty |
SolFirsTech Triangle Roof Mounting System fits for most of available solar panels, and they can scale easily from small to large installations. SolFirsTech all has a strict control process to ensure the mounting structural strength and the life of system.
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Flashing on Roof Technical Details Design Description: Apply the flashing to prevent water leakage effectively. Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty

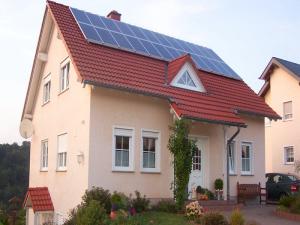

SolFirsTech Tilted Tile Roof Solar Bracket is suitable for installing framed and frameless modules flushed to the tilted roof. The professional design make the istallation more easily and quickly. High preassembly parts and customized solution to save your install time and money.
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Characteristics ·Ultra-low starting voltage, ultra-wide voltage range ·Support anti-backflow function ·Support RS485, Wi-Fi, GPRS multiple communication methods ·Automatic voltage stabilization technology, adaptive to complex grid ·Built-in AFCI, can prevent 99% fire risk (optional) ·Easy to install and maintain Application ·Household ·Vegetable greenhouse ·Fish pond System power 3.6KW 6KW 10KW 15KW 20W 30KW Solar panel power 450W 430W 420W Number of solar panels 8 PCS 14 PCS 24 PCS 36 PCS 48 PCS 72 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 3KW 5KW 8KW 12KW 17KW 25KW Maximum output apparent power 3.3KVA 5.5KVA 8.8KVA 13.2KVA 18.7KVA 27.5KVA Rated grid voltage 1/N/PE.220V 3/N/PE,400V Grid voltage range 180~276Vac 270 〜480Vac Rated grid frequency 50Hz Grid frequency range 45~55Hz Maximum efficiency 98.20% 98.50% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Protection level IP65 Working temperature -25 〜+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.

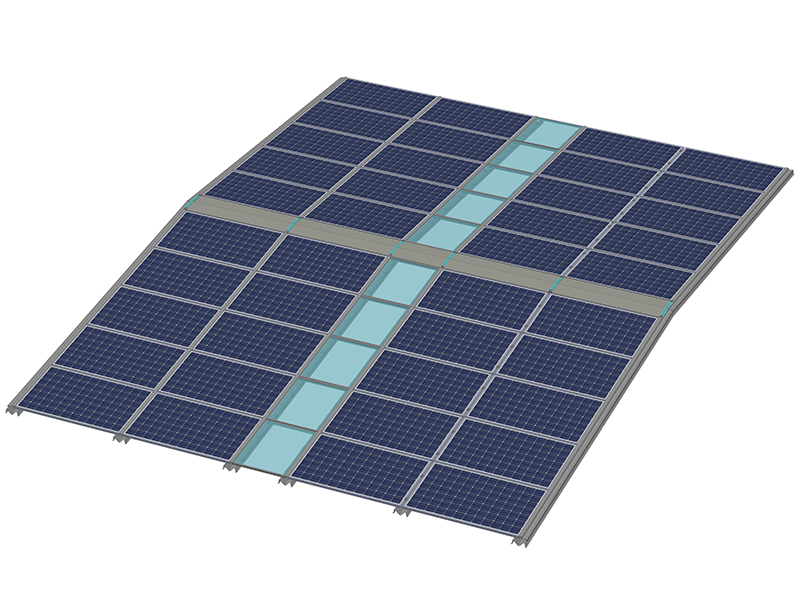

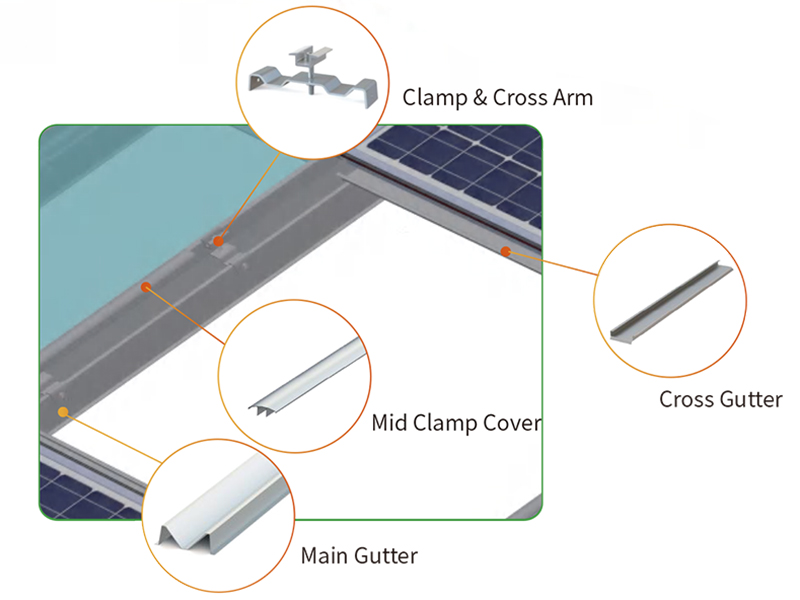

DRAINAGE OF WATER ON CARPORT Technical Details Design description: The main bracket of the carport is made of high-strength carbon steel, the rail and waterproof system are designed with aluminum alloy to meet customers' requirements for safety, installation convenience and aesthetics. Its special structural design allows multiple cars to be freely combined as a unit to maximize the use of space. Installation Ground Foundation Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Anodized AL6005-T5, Hot Dip Gavanized Steel，Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense ·Pastoral areas ·Islands ·Telecommunication base stations System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

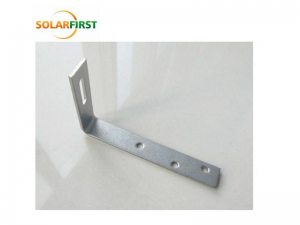

Solar L Foot use for Tin Roof PV Mounting System, with high quality and low price.
Aluminum Ballasted Mounting System,easy to install---The simple design and pre-assembled components ensure a quick and easy installation.
