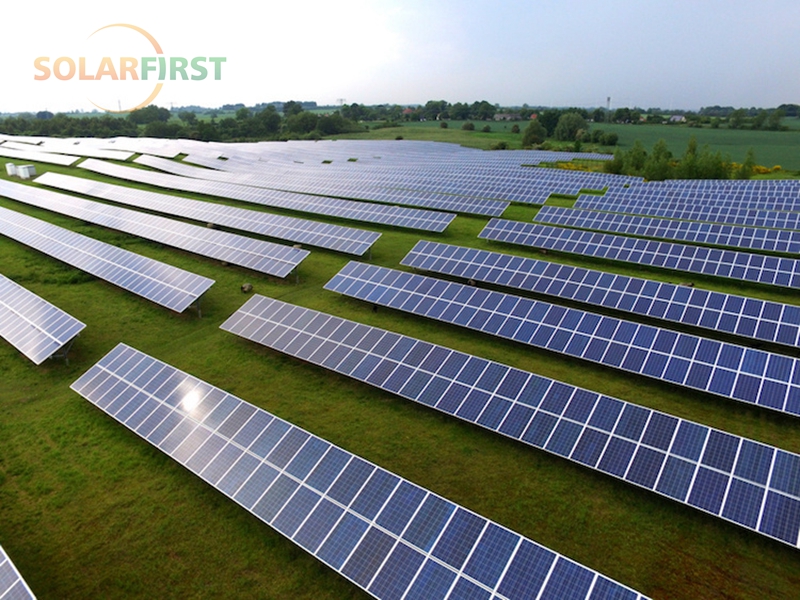

Ground screw solar mounting system for PV station
| material | 6005-T5/Q235 |
| application | ground mounting system |
| module array | 2*2/ 4*1/ Customized |
| tilt angle | as required |
| panel type | with frame |
| panel orientation | transverse/vertical |
| wind speed | 62m/s |
| snow load | 1.4kn/square meter |
| OEM mounting parts | accepted |
| warrenty | 25 years service time |
Features of mounting system
1.Widely Application
The structure is made of galvanized steel/anodized steel,with the quality of corrosion-resistance,light-weight and strong intensity. It can be used in extremely bad installation condition.
2.Strong Compatibility
The structure can not only fit for different PV kits, but also work with different PV arrangements which can be interchange randomly.
3.Safety and Reliability
Load-bearing,wind resistance and seismic resistance has been given sufficient consideration. All of these functions have beentested extremely, which will ensure the safety of the system.
4.Easy Installation
Most of the parts can be pre-assembled on factory, which not only can to save your install time, but also your cost.
5.Flexibility
Considering the construction error, the structure has been well-design that make it can adjust flexibly.
6.Warranty
10-year warranty for the mounting system and 25 years service time.
Photo Show
Contact Information:
Candy
Email: sales06@esolarfirst.com
Skype: sales1-solarfirst
Please feel free to contact me
Best Regards
Installation Steps Types of PHC Piles Technical Details Design Description: 1.Applicable to water pools, marshes, wetlands or deep mud areas. 2,Particulary suitable forflood-prone areas. Installation Ground Foundation Pile Mount / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
DRAINAGE OF WATER ON CARPORT Technical Details Design description: The main bracket of the carport is made of high-strength carbon steel, the rail and waterproof system are designed with aluminum alloy to meet customers' requirements for safety, installation convenience and aesthetics. Its special structural design allows multiple cars to be freely combined as a unit to maximize the use of space. Installation Ground Foundation Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Anodized AL6005-T5, Hot Dip Gavanized Steel，Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤50m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤15° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation Ground/Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5~60° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
SolFirsTech Solar Carport Mounting System offers a flexible, simple and affordable solution for solar mounting system.
Our Ground Screw is made of Q235 material. It is anti-corrosion with hot-dip galvanization and compatible with screwing machine in the open area easily. The length and size can be customized.
