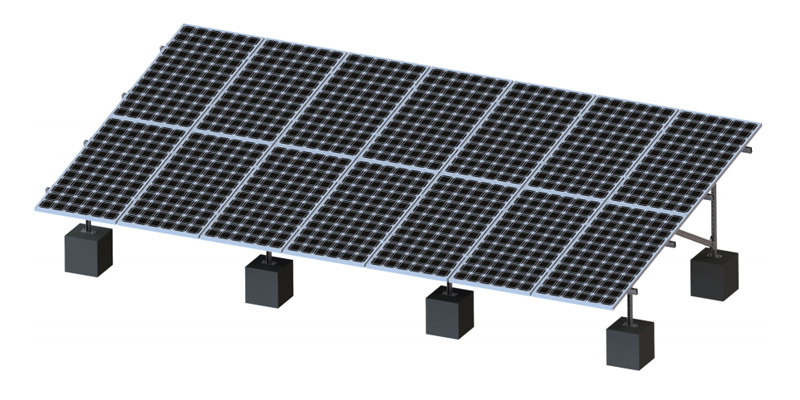

SolFirsTech C-STEEL GROUND MOUNT - CONCRETE FOUNDATION

SolFirsTech C-STEEL GROUND MOUNT - SCREW PILE FOUNDATION

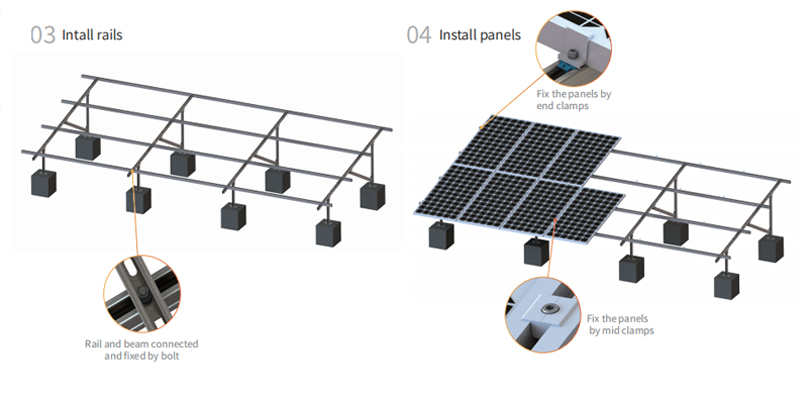

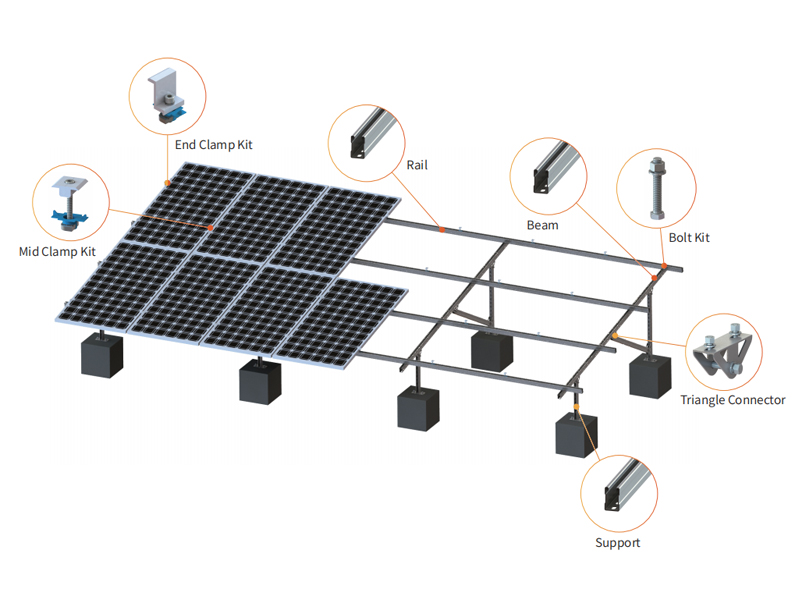

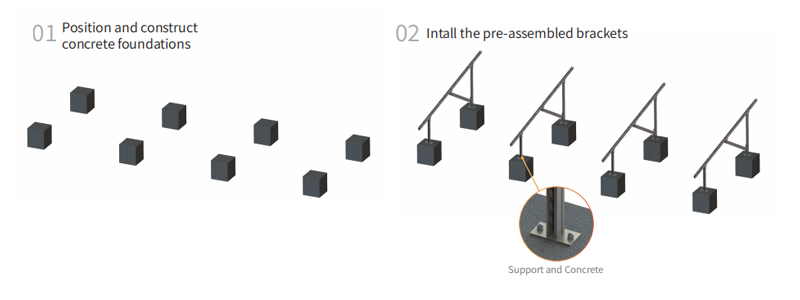

Installation Steps Accessories Technical Details Installation  Ground Foundation  Screw Pile / Concrete Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material  Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty  10 Years Warranty

Wind-solar Hybrid Street Light

Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Road lighting                   ·Landscape lighting                   ·Schools ·Remote countryside        ·Agriculture and animal husbandry   Wind-solar Hybrid Street Light Specifications Solar panel power 120W±15% 150W±15% 240W±15% 300W±15% Horizontal axis wind turbine 200W 300W 400W 500W Wind and solar hybrid controller 1 SET Battery capacity 12V/150Ah 12V/100Ahx2 12V/150Ahx2 12V/200Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 7.0m 8.0m 9.0m 10.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind Grade 10) Rainy days 5〜7 days

SUS304 Adjustable Solar Roof Hooks For Tin Roof

Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life

SolFirsTech METAL ROOF MOUNT - STANDING SEAM ROOF CLAMPS

SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B SolFirsTech-RC-06 8.5 18 SolFirsTech-RC-07 21 18 Technical Details Installation  Metal Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

PV Off-grid System

Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time,   clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection)   Application ·Home  ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters   System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V     48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set   1   100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694

SolFirsTech BALCONY MOUNT

SolFirsTech TILE ROOF HOOKS

Technical Details Installation  Tile Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Stainless Steel SUS304 Warranty  10 Years Warranty

Industrial & Commercial PV Grid-connected System

Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life   Application ·Distributed ·Roofs   ·Hotels ·Factories   ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

BIPV Waterproof Skylight Shed(steel)

Introduction: SolFirsTechPVROOF is a series of steel waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic，an eco-friendly substitution to the traditional skylight.

Module Clamps

Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit

SolFirsTech Single Layer Flexible Mounting Structure

Technical Details Installation  Ground Foundation  PHC/Cast-in-place Pile Modules Layout  Single Row in Portrait Single span  ≤20m Wind Load  0.45KN/㎡ (Adjustable according to the project) Snow Load  0.15KN/㎡ (Adjustable according to the project) Tilt Angle  ≤30° Standards  GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material  Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty  10 Years Warranty

SolFirsTech RAMMING PILE GROUND MOUNT (SLOPE AREA)

Technical Details Installation  Ground Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum  steel, Stainless Steel SUS304 Warranty  10 Years Warranty Project Reference
