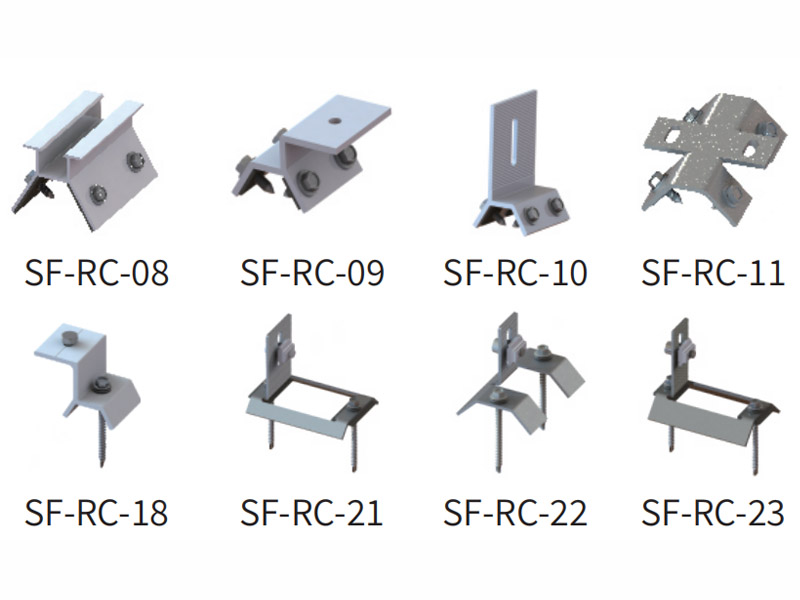

SolFirsTech-RC Roof Clamp Series
|

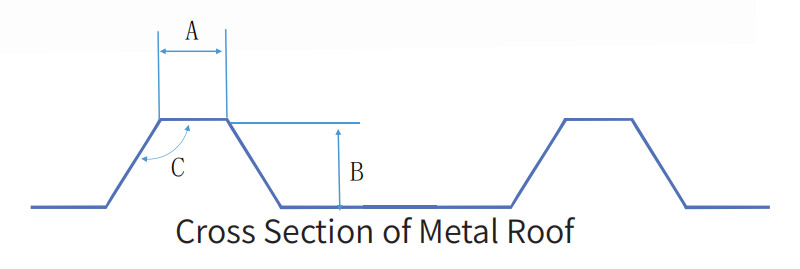

Dimensions (mm) |
A |
B |
C(°) |
|
SolFirsTech-RC-08 |
28 |
34 |
122 |
|
SolFirsTech-RC-09 |
20 |
20 |
123 |
|
SolFirsTech-RC-10 |
20 |
20 |
123 |
|
SolFirsTech-RC-11 |
25 |
23.8 |
132 |
|
SolFirsTech-RC-18 |
22 |
16 |
120 |
|
SolFirsTech-RC-21 |
52 |
12 |
135 |
|
SolFirsTech-RC-22 |
33.7 |
18 |
135 |
|
SolFirsTech-RC-23 |
33.7 |
18 |
135 |
|
Technical Details |
|
|
Installation |
Metal Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
Parallel to Roof Surface |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
Steel Pile Ground Solar Mounting System is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.
Installation Steps Technical Details Installation Ground Foundation Concrete Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Hot Dip Gavanized Steel, Anodized Aluminum AL6005-T5, Zn-Al-Mg pre-coated steel, Warranty 10 Years Warranty
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Different Tile Roof require different Tile Hook, based on tile roof mould,you can choose suitable hook as per your roof type.
LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
We design the Adjustable Mounting System surprisingly quick and easily install for every roof with outstanding quality of stainless steel and aluminum ensure the most durable brackets.
Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.
