Why Fence
·To prevent theft.
Product Origin:
ChinaLead Time:
30 days

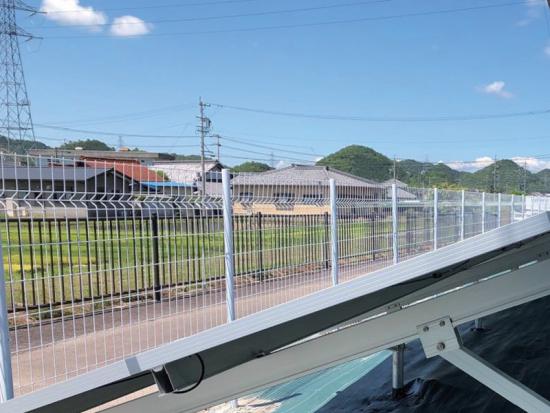

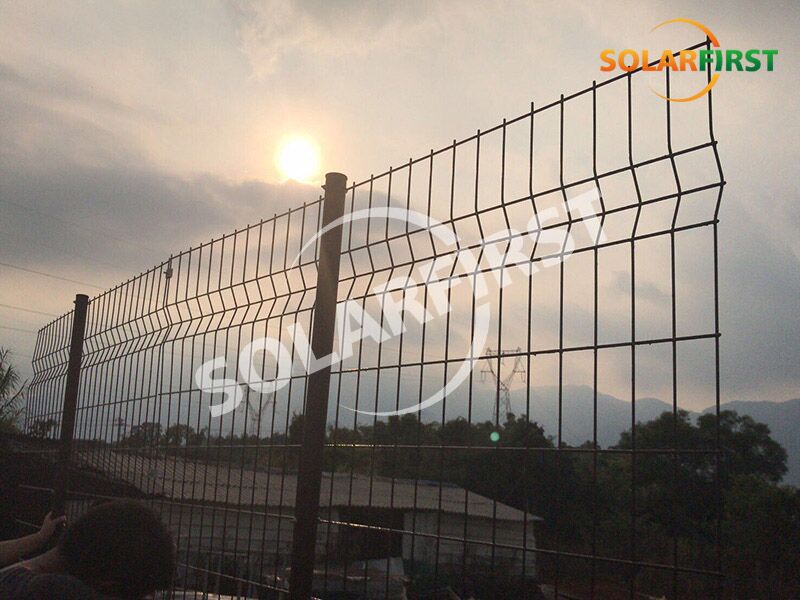

Why Fence
·To effectively protect personnel safety both
inside and outside the project site.
·To prevent theft.
Advantage
·Applicable to flat ground, as well as slopes at a certain inclination.
·Install easily, save labor costs.
·A simple protective fence with high strength, high durability, high quality and low cost.

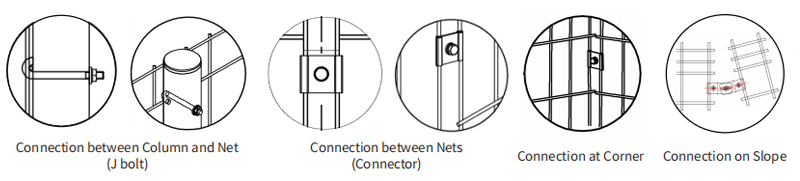

Connecting Accessories

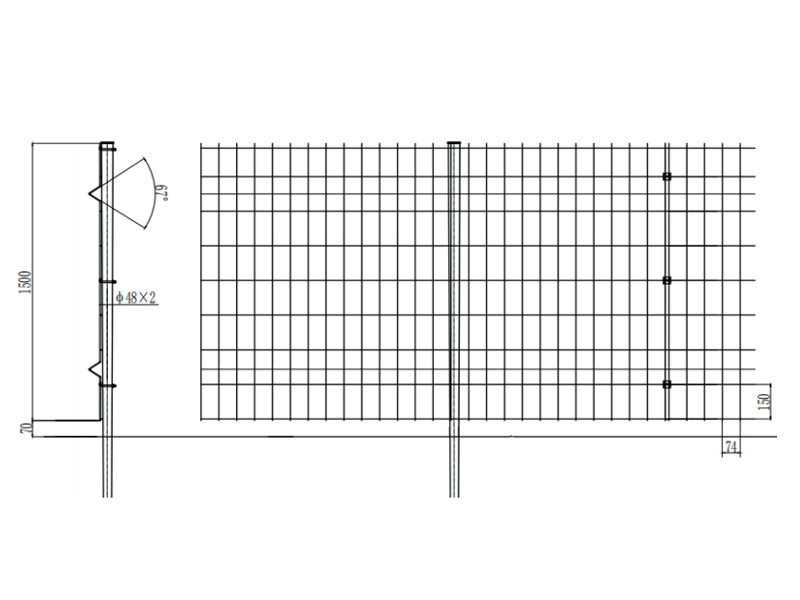

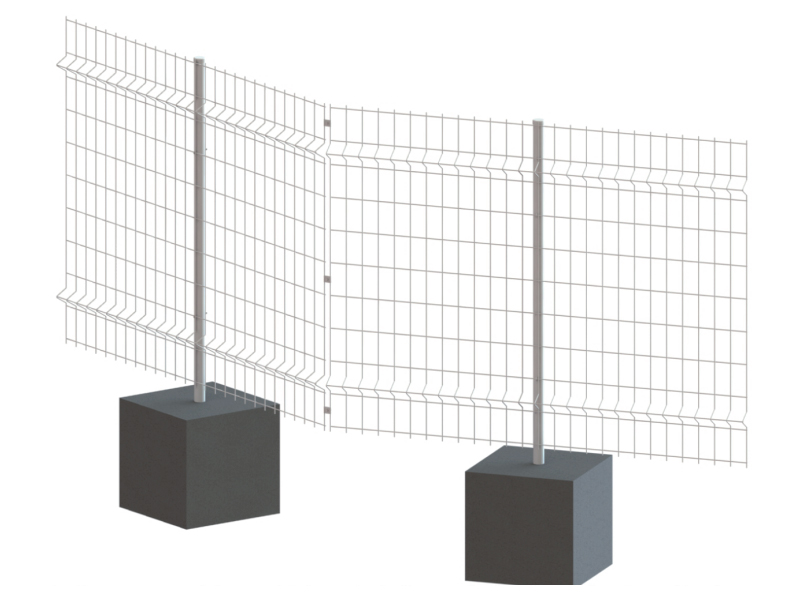

Foundation ＆ Size
|
Net Height (mm) |
Φ48 Column Length (mm) |
Ground Screw Length (mm) |
|
1000 |
1070 |
800 |
|
1200 |
1270 |
800 |
|
1500 |
1570 |
800 |
|
1800 |
1870 |
1000 |
|
2000 |
2070 |
1000 |
|
Net Height (mm) |
Φ48 Column Length (mm) |
Buried Depth (mm) |
|
1000 |
1870 |
800 |
|
1200 |
2070 |
800 |
|
1500 |
2370 |
800 |
|
1800 |
2870 |
1000 |
|
2000 |
3070 |
1000 |
|
Net Height (mm) |
Φ48 Column Length (mm) |
Buried Depth (mm) |
|
1000 |
1470 |
400 |
|
1200 |
1670 |
400 |
|
1500 |
1970 |
400 |
|
1800 |
2370 |
500 |
|
2000 |
2570 |
500 |
# Size may be customized
Component List
|
No. |
Description |
Dimension (mm) |
Material |
Surface Treatment |
Unit |
|
1 |
Mesh |
φ3.5*L2000 |
steel |
plastic dipping or galvanization |
piece |
|
2 |
Column |
φ48*T2 |
steel |
plastic dipping or galvanization |
piece |
|
3 |
Ground Screw |
φ38 |
steel |
hot dip galvanization |
piece |
|
4 |
Connector |
/ |
aluminum/stainless steel |
anodization |
set |

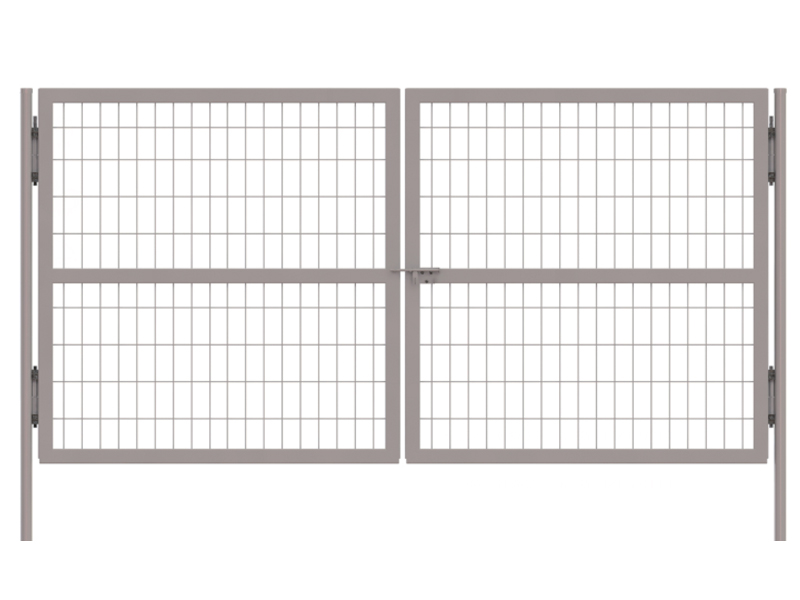

Double Gate

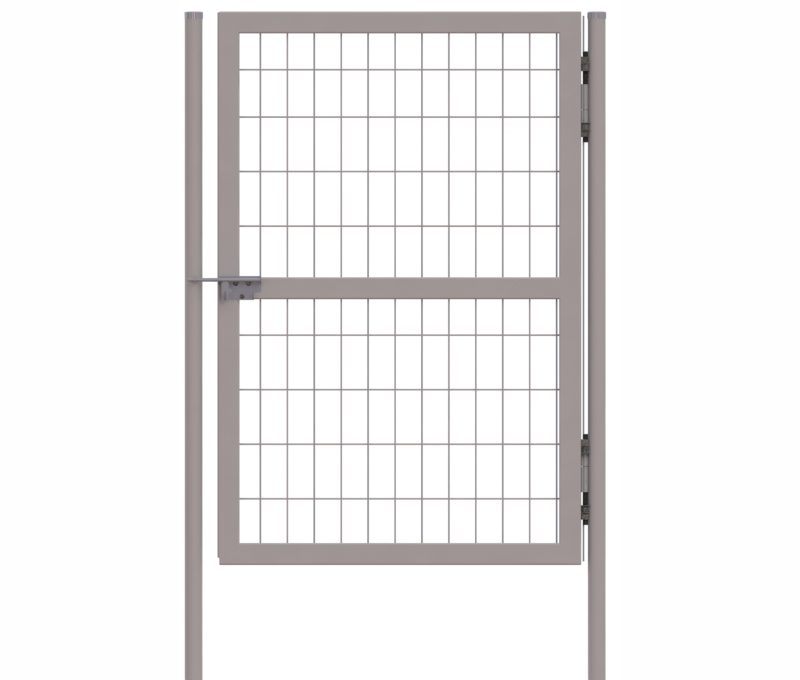

Single Gate
