Steel pile ground solar mounting system for PV station
| material | 6005-T5/Q235 |
| application | ground mounting system |
| module array | 2*2/ 4*1/ Customized |
| tilt angle | as required |
| panel type | with frame |
| panel orientation | transverse/vertical |
| wind speed | 62m/s |
| snow load | 1.4kn/square meter |
| OEM mounting parts | accepted |
| warrenty | 25 years service time |
Features of mounting system
1.Widely Application
The structure is made of galvanized steel/anodized steel,with the quality of corrosion-resistance,light-weight and strong intensity. It can be used in extremely bad installation condition.
2.Strong Compatibility
The structure can not only fit for different PV kits, but also work with different PV arrangements which can be interchange randomly.
3.Safety and Reliability
Load-bearing,wind resistance and seismic resistance has been given sufficient consideration. All of these functions have beentested extremely, which will ensure the safety of the system.
4.Easy Installation
Most of the parts can be pre-assembled on factory, which not only can to save your install time, but also your cost.
5.Flexibility
Considering the construction error, the structure has been well-design that make it can adjust flexibly.
6.Warranty
10-year warranty for the mounting system and 25 years service time.
Photo Show

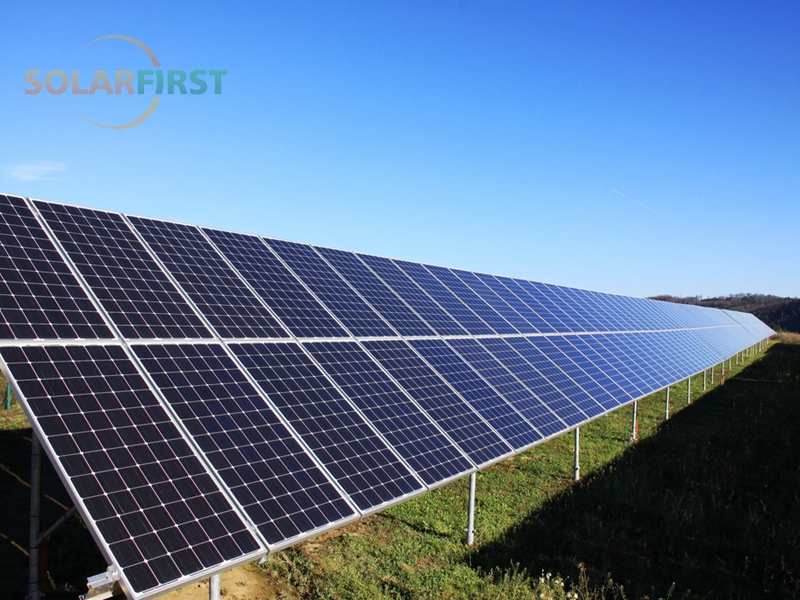

High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure

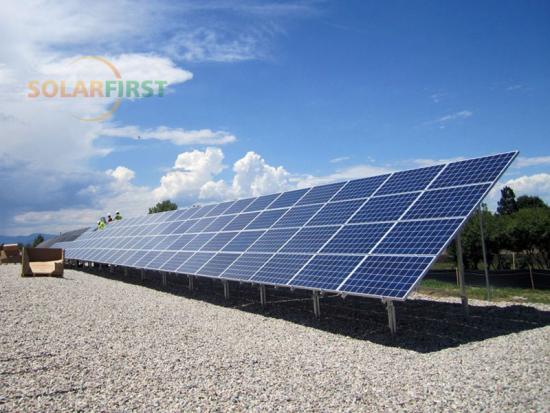

High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure

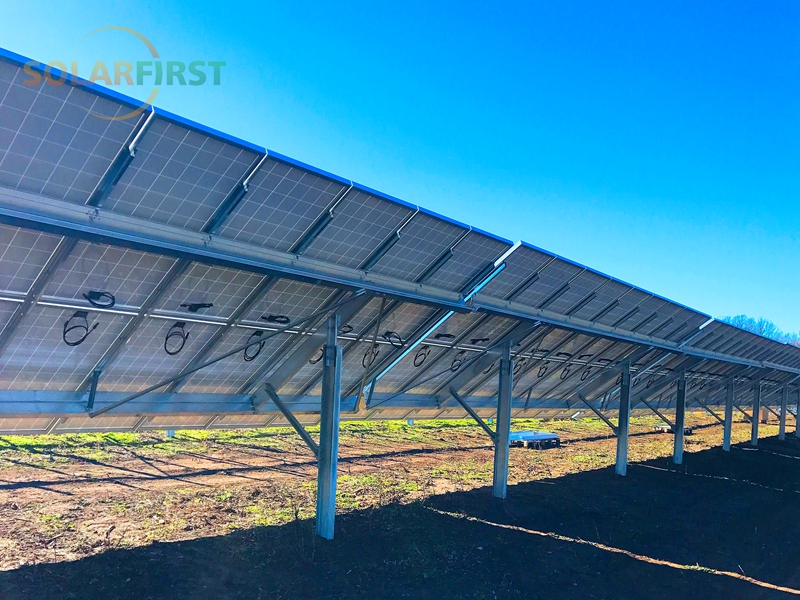

High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Characteristics ·Ultra-low starting voltage, ultra-wide voltage range ·Support anti-backflow function ·Support RS485, Wi-Fi, GPRS multiple communication methods ·Automatic voltage stabilization technology, adaptive to complex grid ·Built-in AFCI, can prevent 99% fire risk (optional) ·Easy to install and maintain Application ·Household ·Vegetable greenhouse ·Fish pond System power 3.6KW 6KW 10KW 15KW 20W 30KW Solar panel power 450W 430W 420W Number of solar panels 8 PCS 14 PCS 24 PCS 36 PCS 48 PCS 72 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 3KW 5KW 8KW 12KW 17KW 25KW Maximum output apparent power 3.3KVA 5.5KVA 8.8KVA 13.2KVA 18.7KVA 27.5KVA Rated grid voltage 1/N/PE.220V 3/N/PE,400V Grid voltage range 180~276Vac 270 〜480Vac Rated grid frequency 50Hz Grid frequency range 45~55Hz Maximum efficiency 98.20% 98.50% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Protection level IP65 Working temperature -25 〜+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B SolFirsTech-RC-06 8.5 18 SolFirsTech-RC-07 21 18 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Adjustable Triangle Solar Flat Roof Mounting System is designed with great flexibility both for the residential and commercial roof solar system. It is small and light weight to the roof sheet.
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Tin Roof Solar System including L feet, rails, rail connectors etc. We can provide free design of the complete roof system.
