Item NO.:
SF-GS-1200Payment:
TT,LCPrice:
$9.5/PCSProduct Origin:
Xiamen,ChinaColor:
silverShipping Port:
Xiamen,ChinaLead Time:
5-15 working days
|

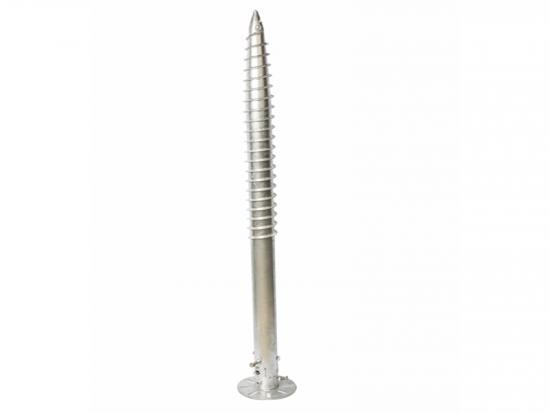

Product Name |
Ground Screw |
|
Connect Style |
Flange (Triangle, Square, Round, Hexagon), Bolts |
|
Material |
Hot-dip Galvanized Steel |
|
Surface Treatment |
HDG DIN EN ISO1461 |
|
Length |
300mm-3000mm |
|
Pipe OD |
48mm-219mm |
|
Pipe Wall Thickness |
1.8mm-4.0mm |
|
Flange Thickness |
8mm/10mm |
|
Warranty |
10 Years Warranty |
Easy installation,all kinds of length Hot Dip Galvanized Ground Screw Pile.
Whole Ground Screw can be Used for many kinds of application, like Solar System; Timer-Fram Construction; Advertising and Traffic Systems; Urban Garden and Landscape Construction; Flag Poles and so on.
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Our Ground Screw is made of Carbon Steel Q235, HDG coating ≥80μm, excellent in corrosion resistance with hot-dip galvanization and compatible with screwing machine in the open area easily. Available with custom-made solution, the length and size can be customized.
