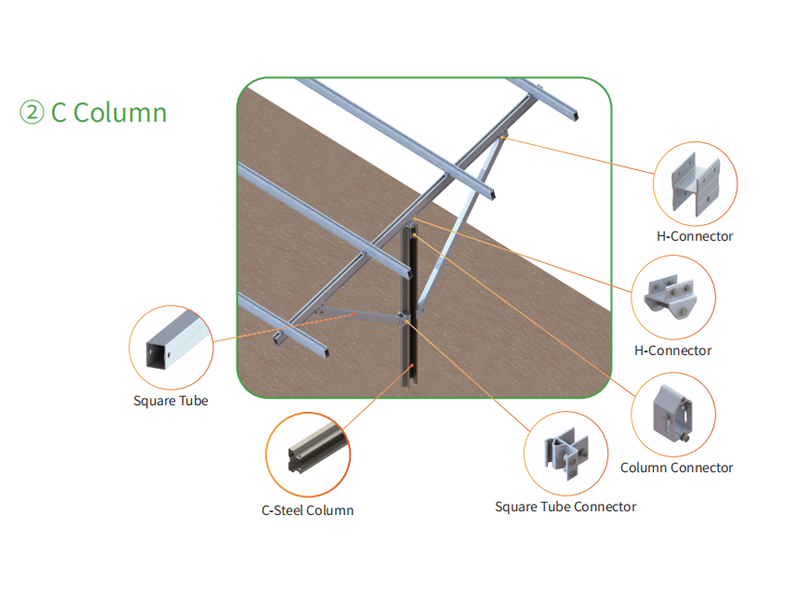

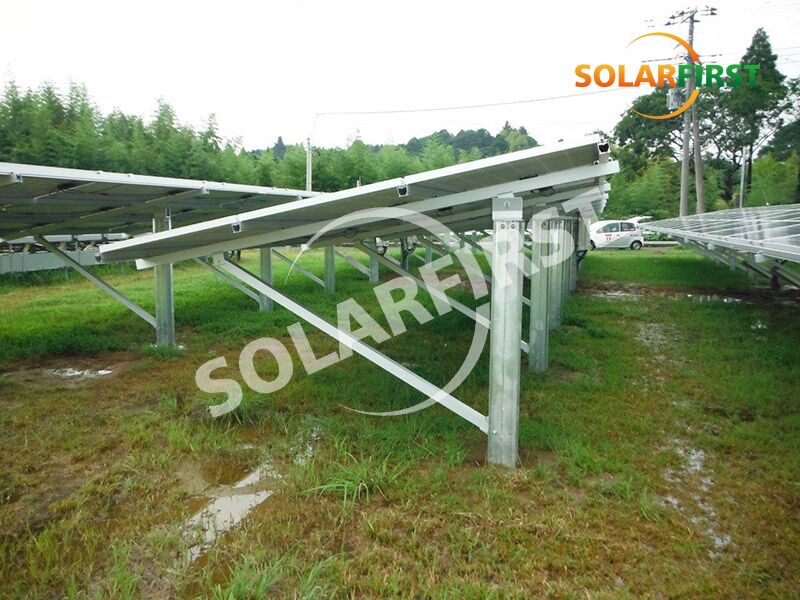

SolFirsTech RAMMING PILE GROUND MOUNT

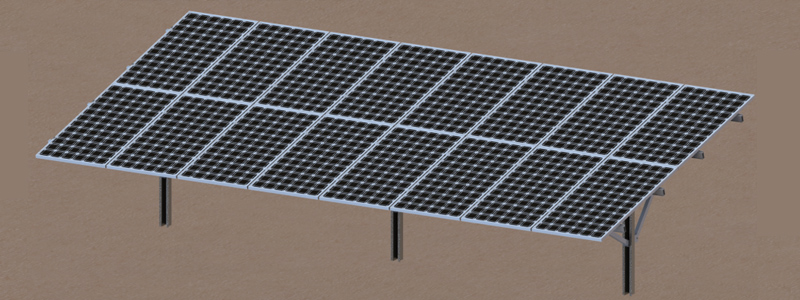

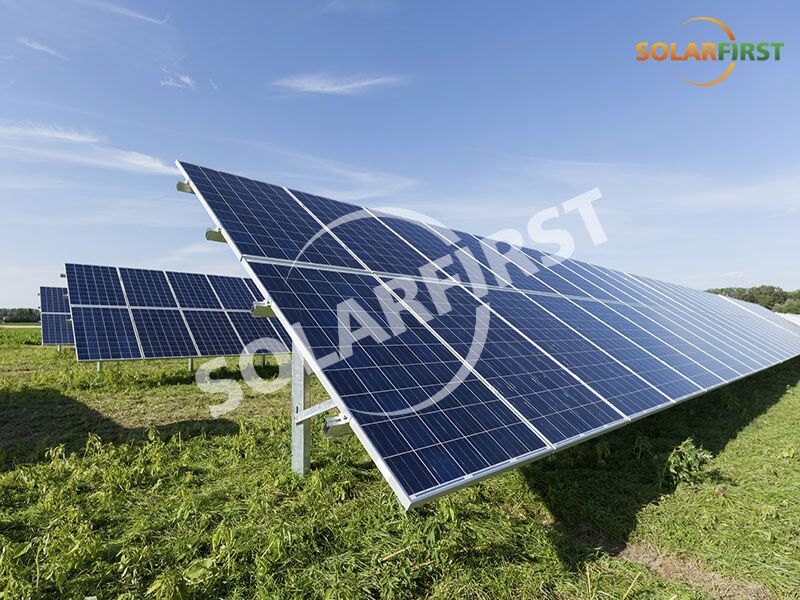

Solar Panel Single Pole Ground Mounting System

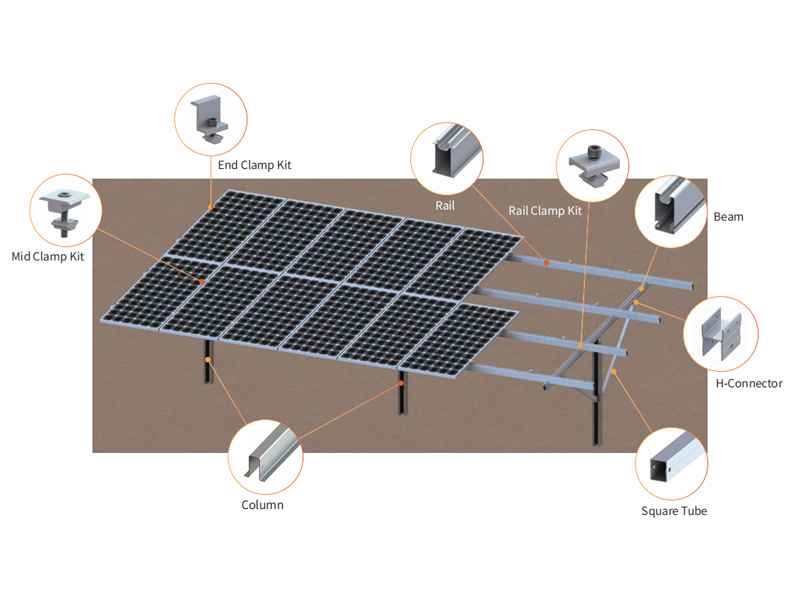

Single Pole Ground Mounting system is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.

SolFirsTech RAMMING PILE GROUND MOUNT

SolFirsTech RAMMING PILE GROUND MOUNT (SLOPE AREA)

Technical Details Installation  Ground Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum  steel, Stainless Steel SUS304 Warranty  10 Years Warranty Project Reference

Industrial & Commercial PV Grid-connected System

Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life   Application ·Distributed ·Roofs   ·Hotels ·Factories   ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

SolFirsTech BALCONY MOUNT

PHC Pile Solar Ground Mounting Structure

High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure

Wholesale Solar Roof Hooks For Tin Roof

Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life

Smart Street Light

Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock   Application ·High-tech park       ·Tourist scenic area       ·Park plaza       ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc

All in one Waterproof 20W Solar Street LED Light

All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.

SolFirsTech METAL ROOF MOUNT - ANGULAR ROOF CLAMPS

SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C D SolFirsTech-RC-01 18 13.5 10.5 10 SolFirsTech-RC-02 26 12 10.5 18 SolFirsTech-RC-03 35 21.6 2.5 31.5 SolFirsTech-RC-04 16.3 16.3 2.5 12 SolFirsTech-RC-05 15 12.2 10 10   Technical Details Installation  Metal Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

SolFirsTech PHC PILE GROUND MOUNT - STEEL

Installation Steps Types of PHC Piles Technical Details Design Description: 1.Applicable to water pools, marshes, wetlands or deep mud areas. 2,Particulary suitable forflood-prone areas. Installation  Ground Foundation  Pile Mount / High Concrete Pile (H≥600mm) Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material  Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty  10 Years Warranty Project Reference

SUS304 Adjustable Solar Roof Hooks For Tin Roof

Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
