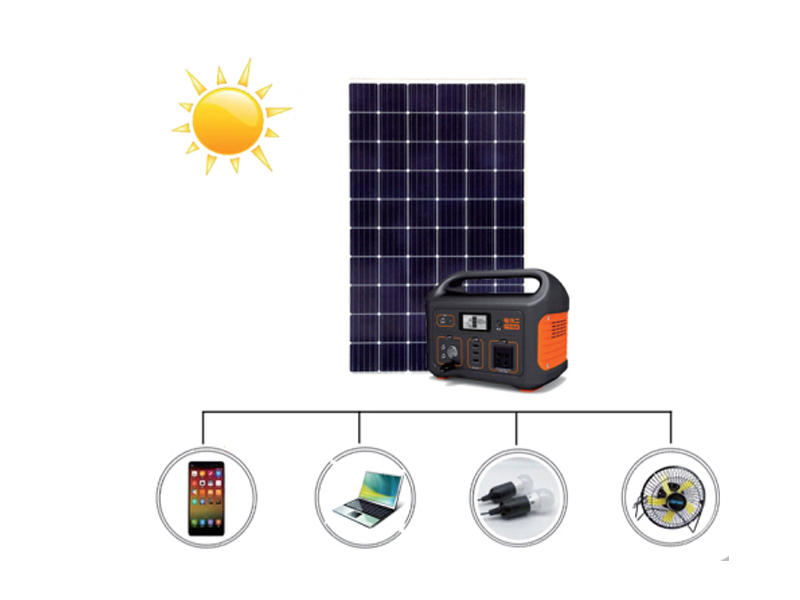

Characteristics
· Dual CPU intelligent control technology, with pure sine wave AC output, adapted to various types of loads.
· Uility power mode (mains mode) lenergy saving mode/battery mode can be set.
Flexible application
· 5VDC-USB output, convenient and practical
· Easy to carry
Application
·Expeditions
·Outdoor camping
·Night Market lighting
·Home lighting
·Poverty areas
System Parameters
|
System power |
0. 3KW |
0.5KW |
1KW |
|
Solar panel power |
180W |
250W |
360W |
|
Number of solar panels |
2片 |
||
|
Photovoltaic DC cable |
1 SET |
||
|
MC4 connector |
1 SET |
||
|
Controller |
12V30A |
24V20A |
24V30A |
|
Lithium battery/Lead-acid battery(Gel) |
12V |
24V |
|
|
Battery capacity |
60Ah |
120Ah |
|
|
DC output |
5V2A USB Output ×2 |
||
|
Inverter AC input side voltage |
170-275V |
||
|
Inverter AC input side frequency |
45-65HZ |
||
|
Inverter off-grid rated output power |
0. 3KW |
0.5KW |
1KW |
|
Rated output voltage on off-grid side |
1/N/PE, 220V |
||
|
Rated output frequency on off-grid side |
50Hz |
||
|
Working temperature |
0~+40°C |
||
|
Cooling method |
Air-cooled |
||
|
AC output copper core cable |
1 SET |
||
|
Distribution box |
1 SET |
||
|
Auxiliary material |
1 SET |
||
|
Photovoltaic mounting type |
Aluminum /Carbon steel mounting(one set) |
||
Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking Application Outdoor DC power supply places System Parameters
Steel Pile Ground Solar Mounting System is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.
Characteristics ·Integrated, simple installation and maintenance, low operating cost, high efficiency and safety, economical and practical ·Pumping water from deep well for farmland irrigation or drinking, effectively solving the problem of water supply in areas lacking water and electricity ·Photovoltaic power generation has no noise, no other public hazards, energy saving, environmental friendly and a wide range of applications Application ·Water shortage and power shortage areas ·Pumped for deep water Solar AC Pumping System Specifications Solar panel power 1800W 2400W 3400W 4500W 6000W 8500W 13500W 22500W 31550W 40800W Solar panel voltage 210-450V 350-800V Rated power of water pump 1100W 1500W 2200W 3000W 4000W 5500W 9000 W 15000W 22000W 30000W Rated voltage of water pump AC220V AC380V Maximum lift of water pump 120m 110m 235m 120m 105m 220m 100m 160m 210m 245m Maximum flow of water pump 3.83/h 5m3/h 10m3/h 18m3/h 10m3/h 53m3/h 75m3/h Outer diameter of water pump 3 inch 4inch 6inch Pump outlet diameter 1 inch 1.25inch 1.5inch 2 inch 1.5inch 3 inch Water pump material Stainless steel Pump conveying medium Water Photovoltaic mounting type Ground mounting
Horizontal Single Axis Traker
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Technical Details Design Description: This solution is applicable on ground or concrete roof with small inclination. Light structure, strong strength, good flexibility. Installation Ground / Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 0~60° Standards AGB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation Ground/Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5~60° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Different Tile Roof require different Tile Hook, based on tile roof mould,you can choose suitable hook as per your roof type.
Accessories The accessories are made of anodized aluminum 6005-T5. The fasteners are made of SUS304. No. Product Name Picture SolFirsTech-DR05-L Rail SolFirsTech-DR06-L Rail SolFirsTech-HR-L Rail SolFirsTech-HR-L Rail SolFirsTech-DR05-SP Rail Connector SolFirsTech-HR-SP Rail Connector SolFirsTech-RC-A Rail Clamp Kit
