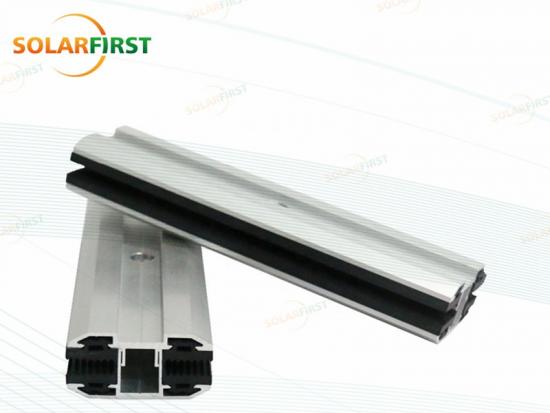

Aluminum Thin Film Frameless Solar panel
Mid Clamp and End Clamp
Materials
Al 6005-T5
AL 6063, AL 6003 available
Size
80mm, 120mm, 150mm
OEM available
Applicable Module
6-9mm frameless thin film solar module
Components

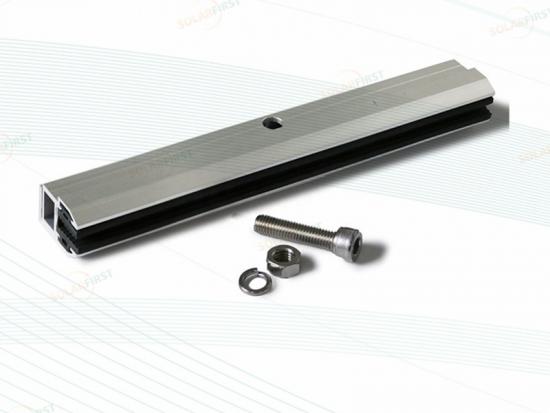

Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Surface
Anodized or Black Electrophoresis
Certification
ISO, SGS, Aluminum testing report.
Warranty
12 years
Introduction

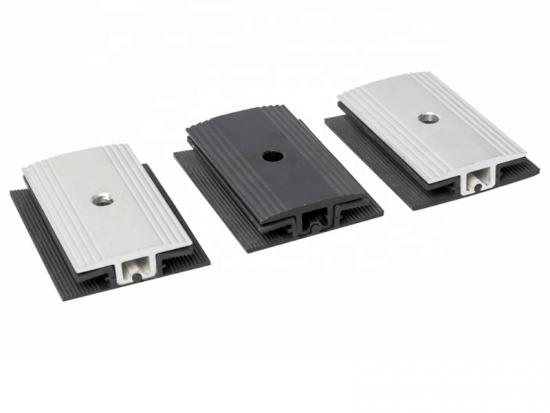

Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Characteristics · Dual CPU intelligent control technology, with pure sine wave AC output, adapted to various types of loads. · Uility power mode (mains mode) lenergy saving mode/battery mode can be set. Flexible application · 5VDC-USB output, convenient and practical · Easy to carry Application ·Expeditions ·Outdoor camping ·Night Market lighting ·Home lighting ·Poverty areas System Parameters System power 0. 3KW 0.5KW 1KW Solar panel power 180W 250W 360W Number of solar panels 2片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Controller 12V30A 24V20A 24V30A Lithium battery/Lead-acid battery(Gel) 12V 24V Battery capacity 60Ah 120Ah DC output 5V2A USB Output ×2 Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65HZ Inverter off-grid rated output power 0. 3KW 0.5KW 1KW Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0~+40°C Cooling method Air-cooled AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting(one set)
Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5°~ 45° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
