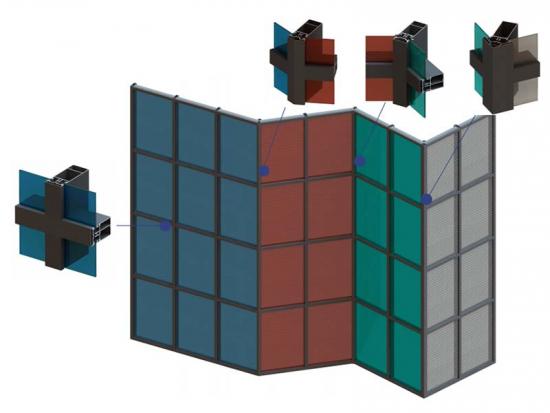

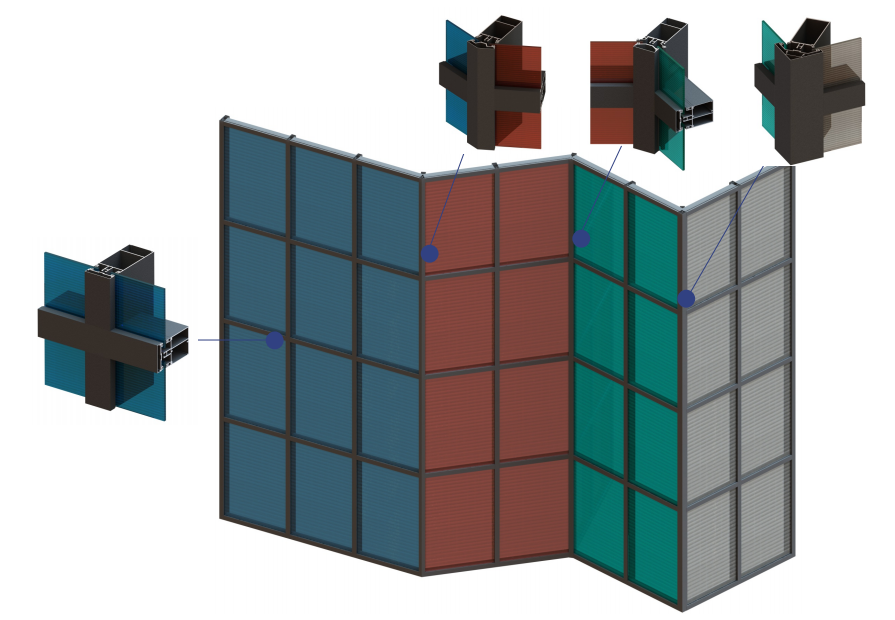

The SolFirsTechPVROOM series PV glass certain wall solutions combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites.
Curtain wall + solar photovoltaic, an eco-friendly substitution to the glass curtain wall system.
Item NO.:
SFPVROOM02Payment:
T/TProduct Origin:
ChinaLead Time:
30days
Characteristic：
Diversified Customization:
Optional aluminum profiles with colorful surface treatment, the product material can be made into different shapes: square, circle, bent, straight, or other custom-tailored styles.
Good Weather Resistance:
The aluminum structure with anodized surface ensure long service life, stability, and anti-corrosion. The solar modules and heat-insulated aluminum profile provide double assurance to block exterior heat.
High Load Resistance:
35cm snow cover and 42m/s wind speed are considered in this solution according to EN13830 standard.
Typical Applications：
For Houses and Villas For Commercial Building For Building Facade For Fence
Optional Extensions：
Steel Frame Structure Smart Sunshade Windows for Natural Ventilation
More Attachments Available
Project Reference
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Installation Steps Types of PHC Piles Technical Details Design Description: 1.Applicable to water pools, marshes, wetlands or deep mud areas. 2,Particulary suitable forflood-prone areas. Installation Ground Foundation Pile Mount / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System. Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Technical Details Design Description: This solution offers fast installation with minimum components. Its structure is light with high strength and good flexibility. Installation Ground / Concrete Roof Wind Load up to 60m/s Snow Load 1.4kn/m2 Tilt Angle 10°, 15°, 20° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 / Hot Dip Gavanized Steel Warranty 10 Years Warranty
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤50m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤15° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Our Ground Screw is made of Q235 material. It is anti-corrosion with hot-dip galvanization and compatible with screwing machine in the open area easily. The length and size can be customized.
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport Application ·Garden ·Plaza ·Residential area System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Installation Steps Available Types of Columns Technical Details Design Description: especially suitable for hillsides and uneven ground areas. Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m2 Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 Material Anodized AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
