L Foot Bracket For Solar Tin Roof Mounitng Sytem
SolFirsTech Solar Panel mounting brackets are very easy to use, can support RV Boat Off Grid Roof and Any Flat Surface.
The solar Mounting Brackets are Manufactured of High Quality Aluminum and Therefore are very Light Weight and Convenient.
The Solar Mounting Brackets can works for any solar panels. Can work with or without guide rail in on-grid and off-grid systems.
The hook can be used with either composite or metal roofs as well as with other manufacturers rail and flashed mounting systems.
Maintenance Free & Easy Installation.
Technical Specification
| Mount type |
SolFirsTech Tin Roof Mounting Brackets |
|
Installation site |
Tin Roof |
|
Structural materials |
Aluminum alloy and stainless steel |
|
Survival wind speed |
60m/s |
|
Design snow load |
1.4KN/m2 |
|
System tilt angle |
10-45° |
|
Module orientation |
Vertical or horizontal |
|
Design standard |
AS/NZS 170 |
|
Life |
Design life is 25years, Qaultity assurance for 10years |
|
Delivery time |
With 20-30 days |
|
Package |
Carton, wooden pallet for solar mounting |
Aluminum Ballasted Mounting System,easy to install---The simple design and pre-assembled components ensure a quick and easy installation.

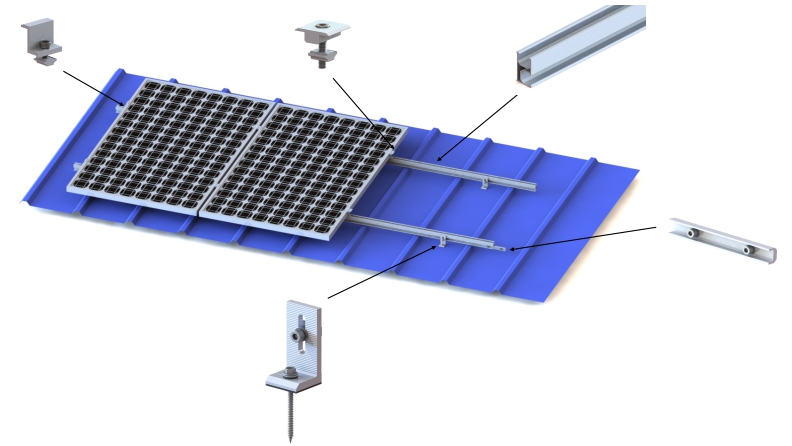

With variety of different Tin Roof Brackets, SolFirsTech Tin Roof Mounting System can meet trapezoid or corrugated metal roof and standing seam roof demand with or without penetrating on the roofs.

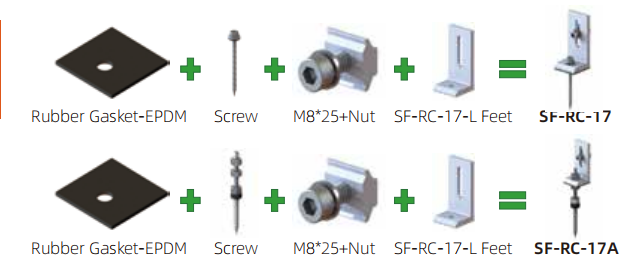

SolFirsTech Aluminum L Feet used in metal roof solar mounting system. we can provide free design and sample to test.
SolFirsTech Roof Mounting System is widely used for commercial roof & residential roof solar mounting system, fast installation and save labor cost.
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤50m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤15° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
We design the Adjustable Mounting System surprisingly quick and easily install for every roof with outstanding quality of stainless steel and aluminum ensure the most durable brackets.
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°) SolFirsTech-RC-08 28 34 122 SolFirsTech-RC-09 20 20 123 SolFirsTech-RC-10 20 20 123 SolFirsTech-RC-11 25 23.8 132 SolFirsTech-RC-18 22 16 120 SolFirsTech-RC-21 52 12 135 SolFirsTech-RC-22 33.7 18 135 SolFirsTech-RC-23 33.7 18 135 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System. Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
