/Metal Roof Mounting System Solar Panel Mounting Brackets for Tin Roof
With variety of different Tin Roof Brackets, SolFirsTech Tin Roof Mounting System can meet trapezoid or corrugated metal roof and standing seam roof demand with or without penetrating on the roofs.
Item NO.:
SF- RM-02Payment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
Fujian, ChinaColor:
NormalShipping Port:
XiamenLead Time:
within 15-30 working days

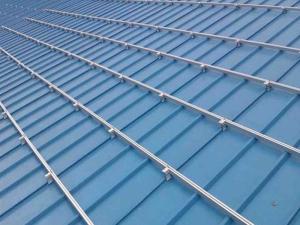

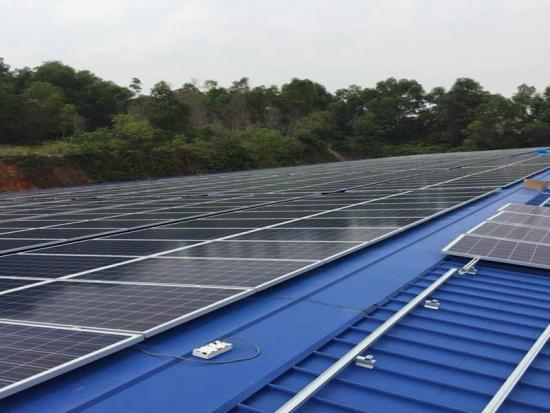

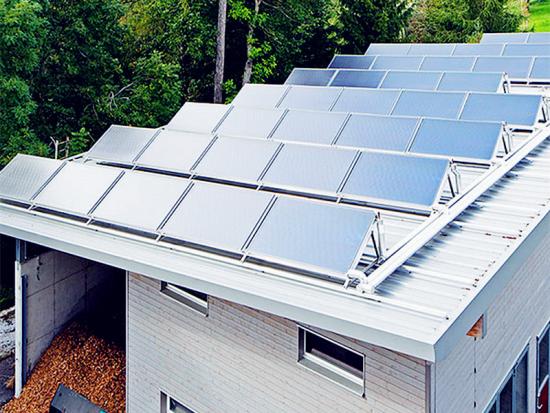

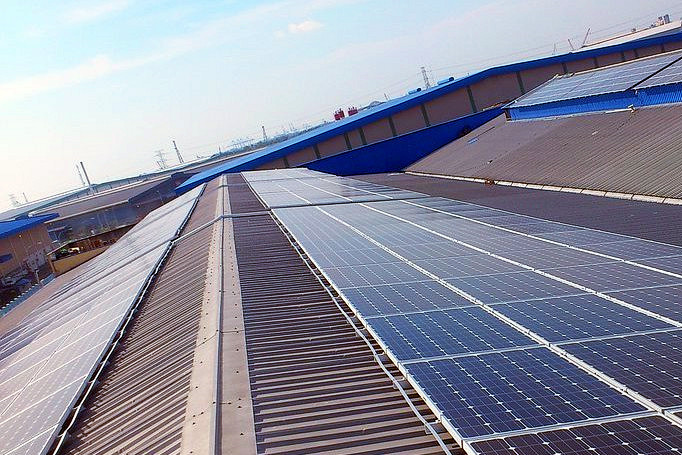

Solar PV Mounting System for Tin Roof
SolFirsTech tin roof mounting system is designed with great flexibility for both commercial and residential roof solar system. It is suitable for tin roofs from 10 degrees to 60 degrees. To samplify the brackets mounting, We have designed rails that can put into clamp fixture block easily.
SolFirsTech Technical Specification
| Mount type |
SolFirsTech Tin Roof Mounting Brackets |
|
Installation site |
Tin Roof |
|
Structural materials |
Aluminum alloy and stainless steel |
|
Survival wind speed |
60m/s |
|
Design snow load |
1.4KN/m2 |
|
System tilt angle |
10-45° |
|
Module orientation |
Vertical or horizontal |
|
Design standard |
AS/NZS 170 |
|
Life |
Design life is 25years, Qaultity assurance for 10years |
|
Delivery time |
With 20-30 days |
|
Package |
Carton, wooden pallet for solar mounting |
Advantages of SolFirsTech Tin Roof Mounting Brackets
1.Easy Installation
The
innovative SolFirsTech rail and D- modules have greatly simplified the installation
of PV modules.The System can be installed with a single Hexagon Key and
standard tool kits. Pre-assembled and pre-cut processes will highly prevent
corrosion and save your installation time and labor cost.
2.Great
Flexbilitity
SolFirsTech Tin roof mounting brackets has mounting accessories designed for use on almost every roof
and ground with excellent compatibility. Designed as a universal racking
system,framed modules from all the popular manufacturers can be used.
3.High
Accuracy
Without
the need for onsite cutting, the use of SolFirsTech unique rail extending allows the
system to be installed with millimeter accuracy.
4. Long Lifespan
All
components are made of quality extruded aluminium, C-steel and stainless
steel. The high corrosion resistance guarantees the maximum possible lifespan
and is also completely recyclable. Maximum lifespan - 10 years warranty, at least 20 years duration
5.Hight Quality
With ISO, AS/NZS1170, ASCE 7-05 and DIN1044 certificated, SolFirsTech provides a guarantee of 10 years on the durability of all components used.

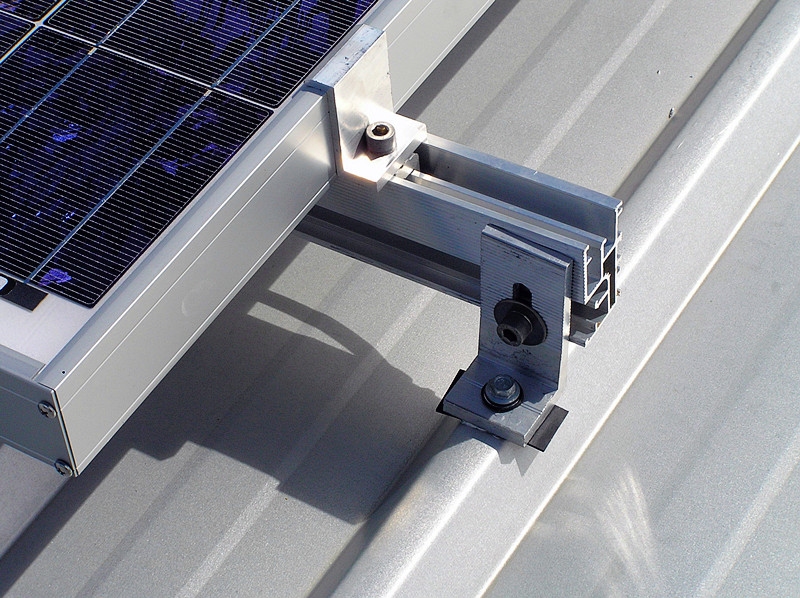

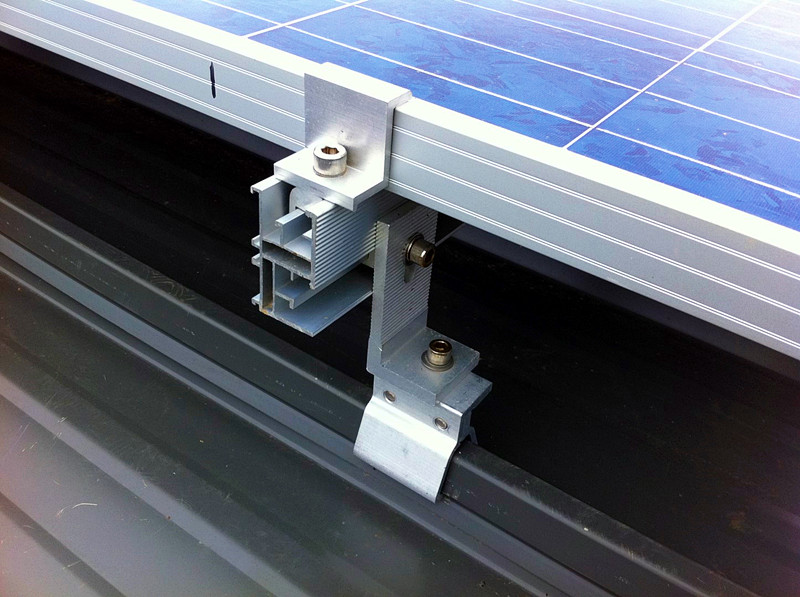

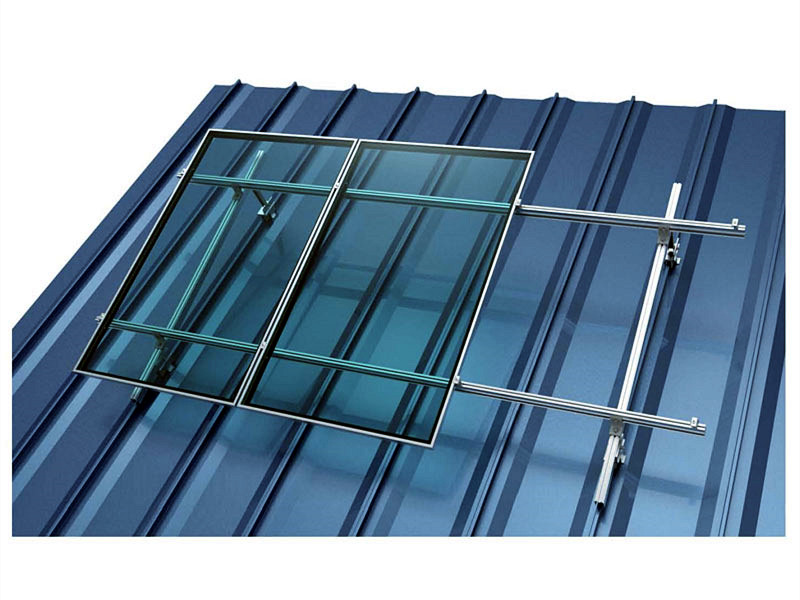

Details of Soar First Tin Roof Mounting Brackets

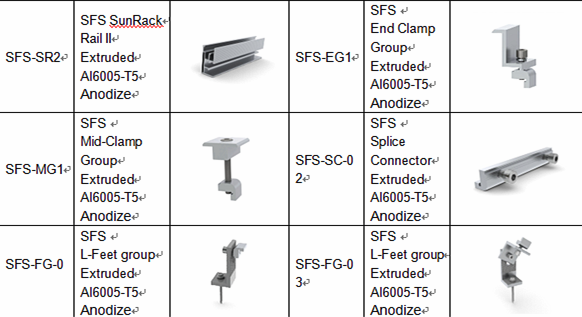

Component list of Soar First Tin Roof Mounting Brackets

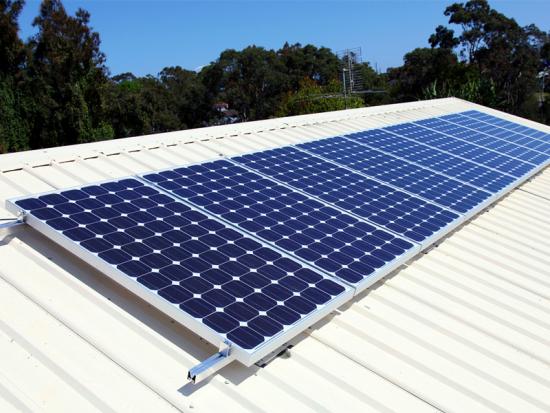

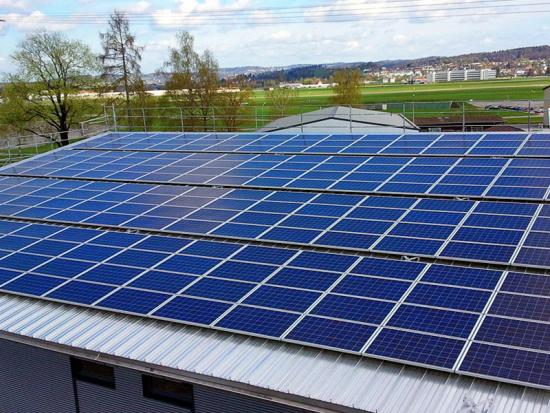

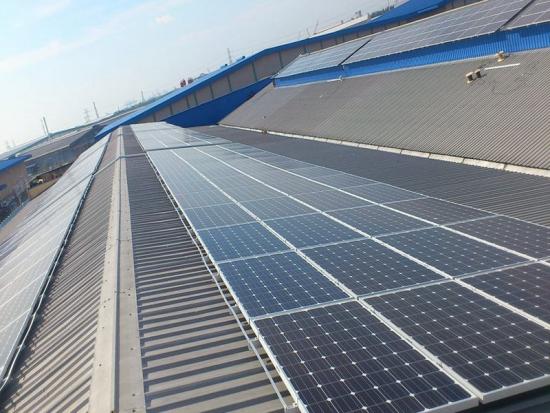

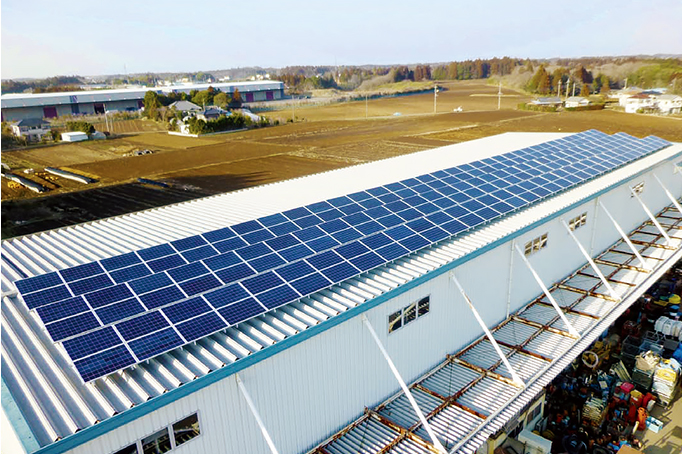

Product Show

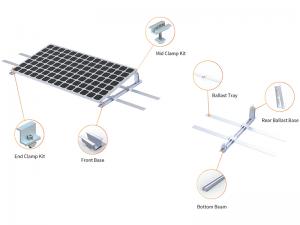

Aluminum Ballasted Mounting System,easy to install---The simple design and pre-assembled components ensure a quick and easy installation.

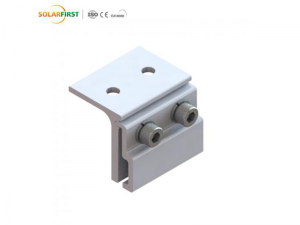

L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.

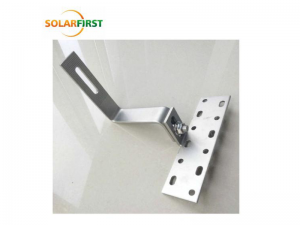

Different Tile Roof require different Tile Hook, based on tile roof mould,you can choose suitable hook as per your roof type.
