Characteristics
·DSP itelligent control inverter technology, with excellent performance
·Pure sine wave AC output, with strong adaptability to load
·LCD+LED display mode, with clear indication of operating status of the equipment
·With output overload protection, various automatic protections and alarms
·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions
·Battery can be set with multiple protection parameters, with password protection function
Application
·Large-scale solar power generation applications such as industrial and mining
·Border defense
·Pastoral areas
·Islands

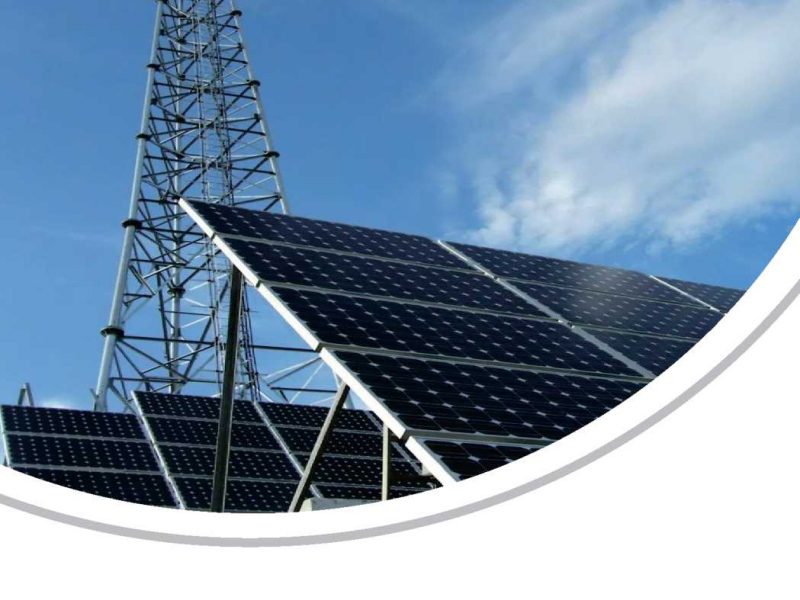

·Telecommunication base stations
System Parameters
|
System power |
10KW |
15KW |
20KW |
30KW |
50KW |
|
|
Solar panel power |
420W |
|||||
|
Number of solar panels |
24 PCS |
36 PCS |
48 PCS |
72 PCS |
120 PCS |
|
|
Photovoltaic DC cable |
1 SET |
|||||
|
MC4 connector |
1 SET |
|||||
|
DC combiner box |
1 SET |
|||||
|
Controller |
216V50A |
216V75A |
216V100A |
216V150A |
348V150A |
|
|
Lithium battery/Lead-acid battery(Gel) |
216V |
348V |
||||
|
Battery capacity |
200Ah |
300Ah |
400Ah |
600AH |
||
|
Inverter AC input side voltage |
304-456V |
|||||
|
Inverter AC input side frequency |
45-65Hz |
|||||
|
Inverter off-grid rated output power |
8KW |
12KW |
16KW |
24KW |
40KW |
|
|
Maximum output apparent power on off-grid side |
10KVA10min |
15KVA10min |
20KVA10min |
30KVA10min |
50KVA10min |
|
|
Rated output voltage on off-grid side |
3/N/PE,380/400 |
|||||
|
Rated output frequency on off-grid side |
50Hz |
|||||
|
Working temperature |
0~+40*C |
|||||
|
Cooling method |
Air-cooling |
|||||
|
AC output copper core cable |
1 SET |
|||||
|
Distribution box |
1 SET |
|||||
|
Auxiliary material |
1 SET |
|||||
|
Photovoltaic mounting type |
Aluminum /Carbon steel mounting (one set) |
|||||
