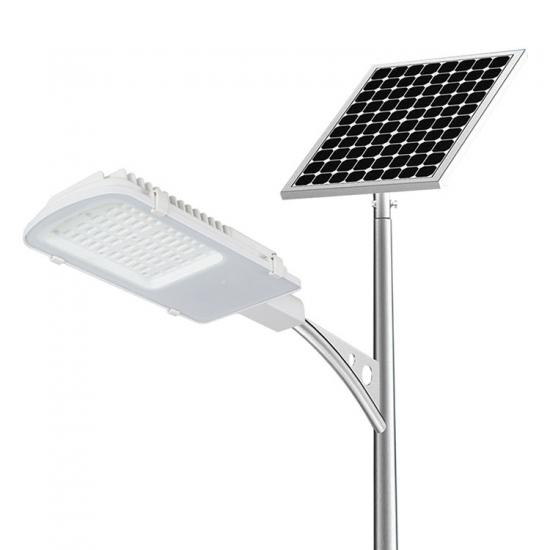

Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
Item NO.:
SF-SL-30WPayment:
TT,LCProduct Origin:
ChinaShipping Port:
Xiamen,ChinaLead Time:
20-30 working daysProduct description
Advantages
Aluminum waterproof solar street LED light Specifications
Model
SolFirsTech-SL-20W
SolFirsTech-SL-30W
SolFirsTech-SL-40W
Solar Panle
Max Power
60W
80W
100W
Solar cell
High efficiency Mono/Poly
Life time
25 years
LED Light
Power
15W-20W
22W-32W
32W-48W
Lumen (LM)
3200-4000LM
4800-6000LM
6400-8000LM
Life time
50,000 hours
Battery
Capacity
36Ah 12V
54Ah 12V
72Ah 12V
Type
Lithium battery
Life time
5-8 years
Charging
By sun
6-10 hours effective sunlight
Work temp
Range(℃)
-40℃ - +70℃
Colour temp
Range(k)
4200K-6500K
Installation Height
Range (m)
6-8m
8-10m
10-15m
Work mode
Light on at dusk, light off at dawn auto.
Motion sensor mode, Dimming mode,Time control mode for choice.
Material
Aluminium alloy
Certificate
CE / ROHS / IP65

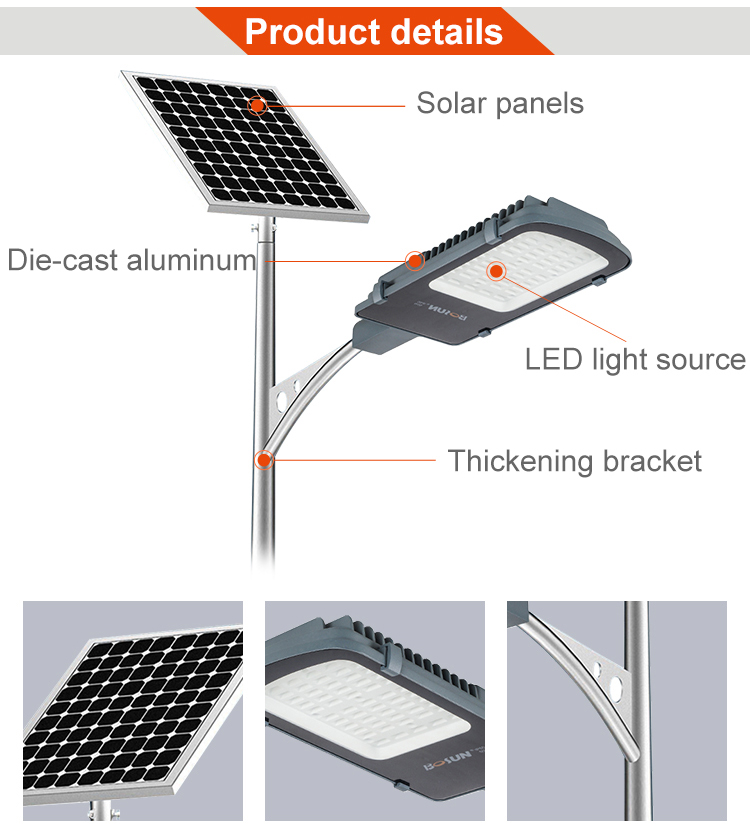

Product Dtetails

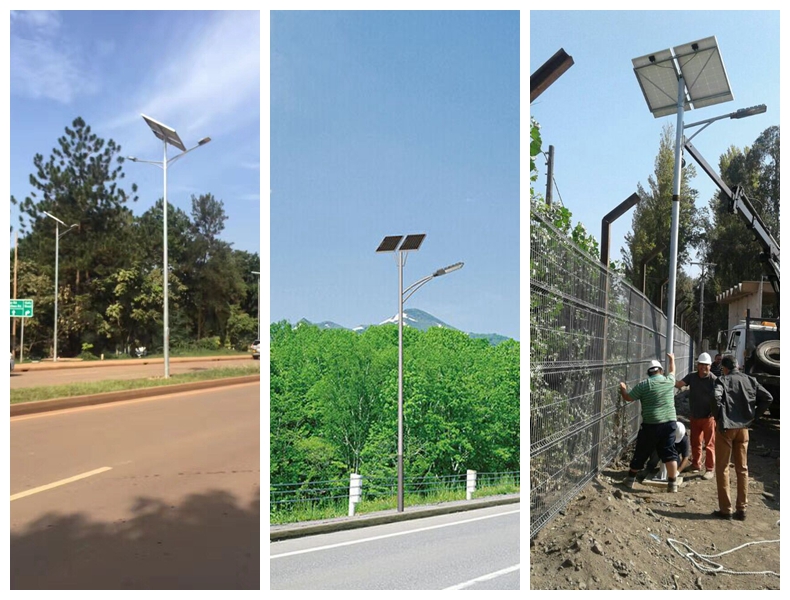

Applications
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
Wind and Solar two charging mode Solar Street Light
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.

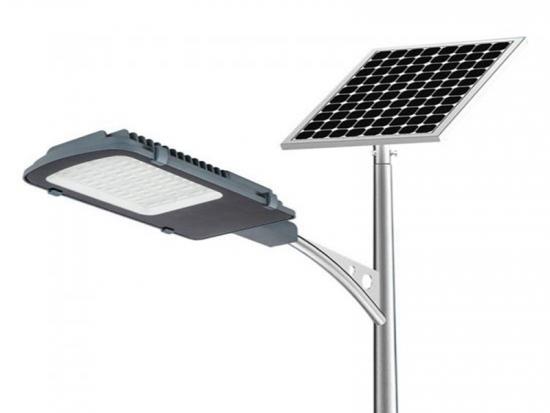

LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.
We design the Adjustable Mounting System surprisingly quick and easily install for every roof with outstanding quality of stainless steel and aluminum ensure the most durable brackets.
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Steel Solar Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Features & Characteristics High Adaptability Adapt to almost all terrain High Stability Herringbone structure, multi-point support, square mesh shape design Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference
Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
