Payment:
T/TProduct Origin:
Xiamen ChinaShipping Port:
XiamenLead Time:
2 weeks

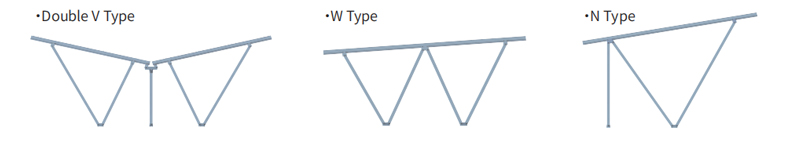

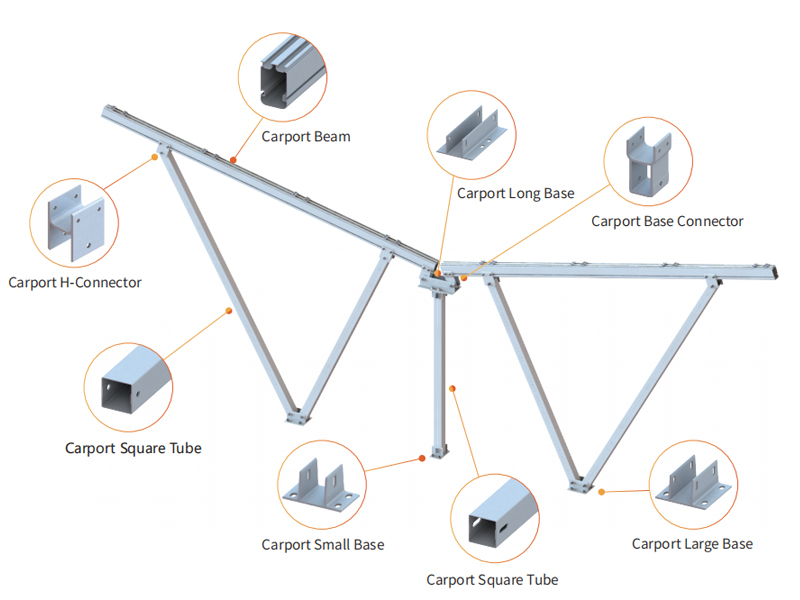

Types of Pre-assembly Brackets
Technical Details

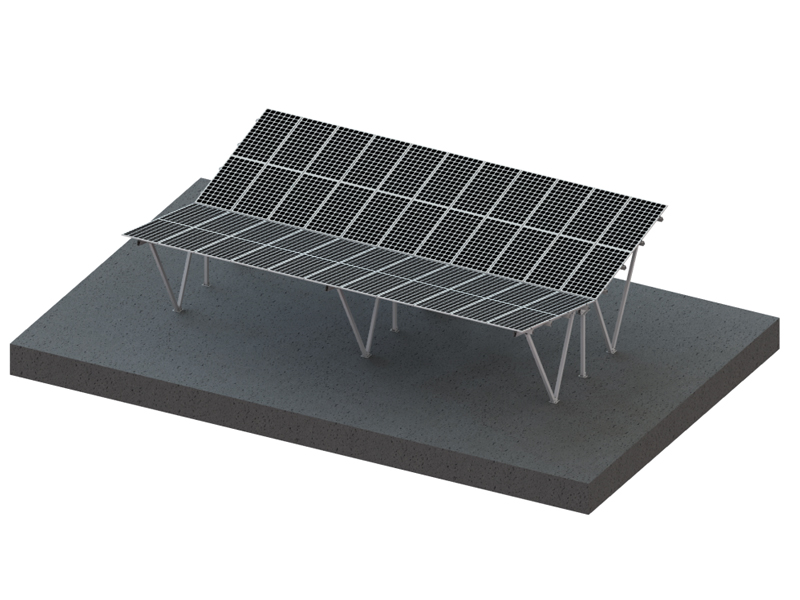

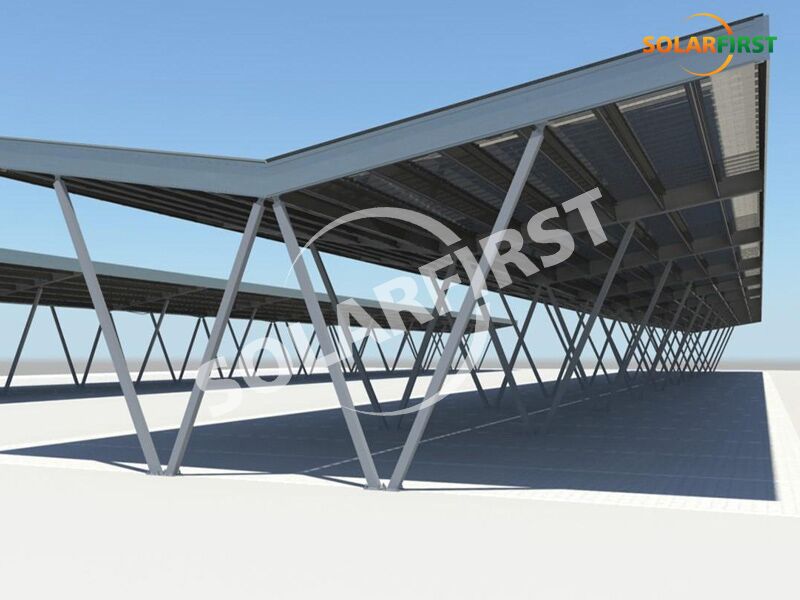

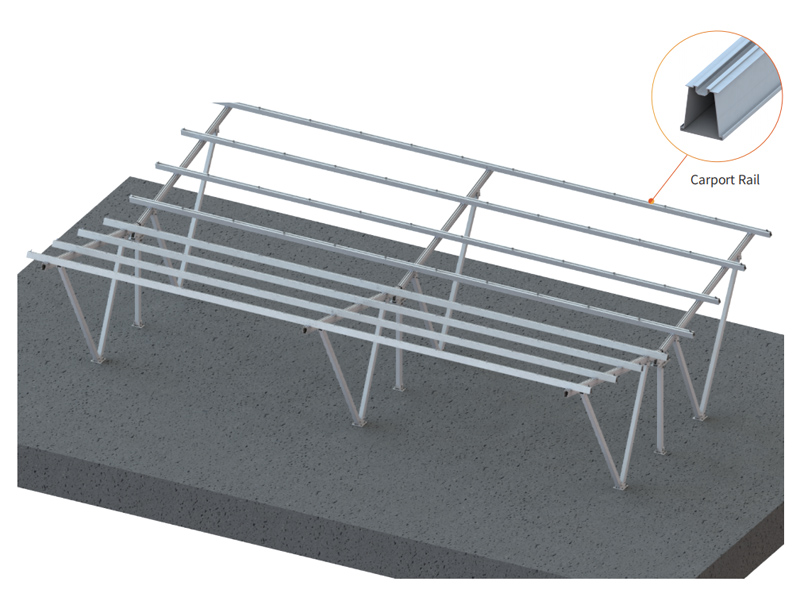

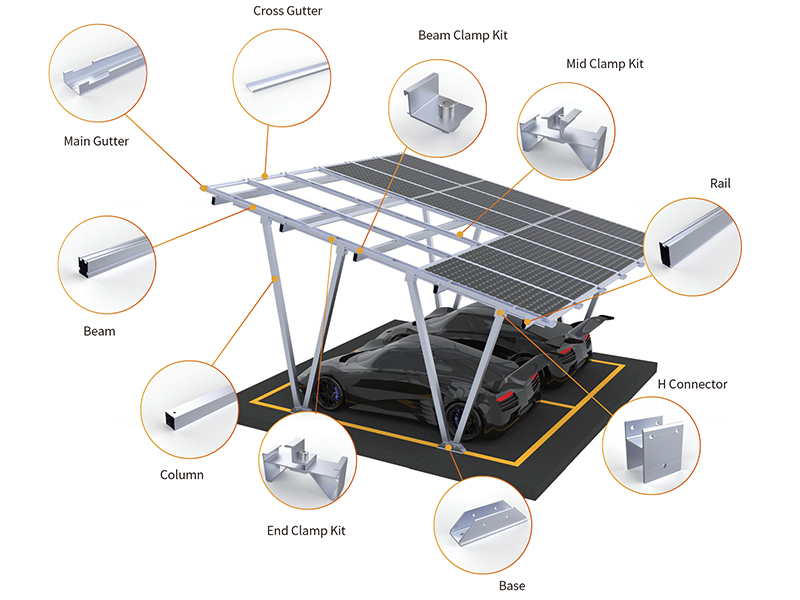

Design description: The carport is made of high-strength aluminum alloy to meet customers' requirements for safety, installation convenience and aesthetics. Its special structural design allows two or four cars to be freely combined as a unit to maximize the use of space.
Installation
Ground
Foundation
Concrete
Wind Load
up to 60m/s
Snow Load
1.4kn/m²
Tilt Angle
0~15°
Standards
GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50429-2007
Material
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304
Warranty
10 Years Warranty

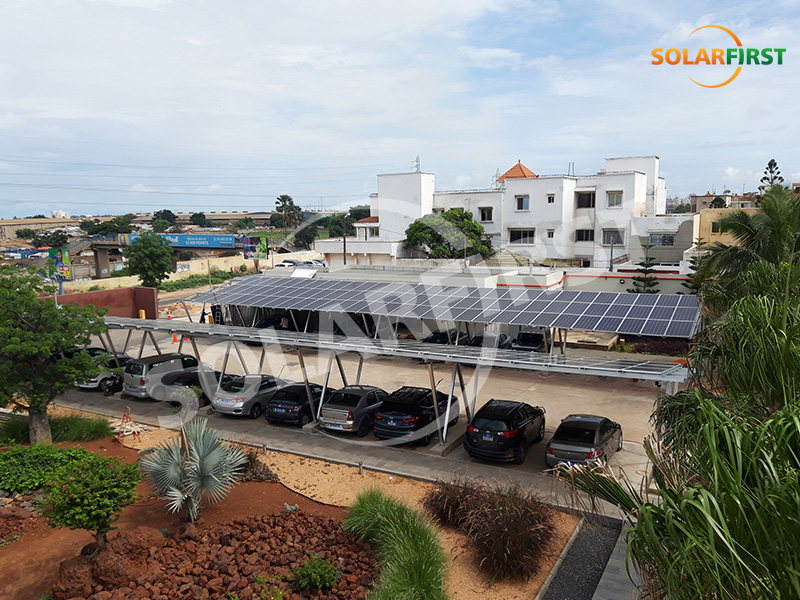

Project Reference
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System.Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System. Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
SolFirsTech Aluminum Carport Mounting Systems specializes in manufacturing and designing to meet the needs of various pole mount installation.
SolFirsTech Carport Mounting System product introduction specializes in SolFirsTech carport mounting manufacturing and designing to meet the needs of various pole mount installation.
Our Ground Screw is made of Carbon Steel Q235, HDG coating ≥80μm, excellent in corrosion resistance with hot-dip galvanization and compatible with screwing machine in the open area easily. Available with custom-made solution, the length and size can be customized.
This photovoltaic smart street light converts solar energy to electrics for lighting compared to traditional street lights. It has obvious advantages of environmental protection, energy saving, and high efficiency. Combined with smart functions, this street light system also provides not only comfortable and automatic light, but also information collection, information transmission, and information release. It will be an important approach for and a terminal of smart communities and smart cities in the future . Smart system + solar; a new type of energy-saving model; a symbol of the smart city.
Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time, clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection) Application ·Home ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V 48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set 1 100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694
Characteristics ·Adopt microwave radar intelligent sensing technology, adjust the brightness of the light according to the moving object, humanized design and more energy-saving ·Adopt intelligent power regulation technology ·Embedded microcomputer control system, intelligent control of charging and discharging, multiple working modes, efficient system operation and energy-saving ·The detachable light pole is easy to install and transport Application ·Garden ·Plaza ·Residential area System Parameters Solar panel power 48W±15% Battery Type Lead-acid batteries Battery capacity I12V/80Ah Total power of light source 21W Main light color temperature 3000K 〜6000K Applicable temperature range 20°C 〜55°C Height of the whole lamp 4. 3m Windproof strength 27m/s (Wind grade 10) Rainy days 5~7 Days
Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense ·Pastoral areas ·Islands ·Telecommunication base stations System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Installation Steps Technical Details Design Description: This solution allows solar panels to generate power from sunlight, while its lower structure provides a suitable growing environment for crops, edible fungi and livestock. Installation Ground Foundation Ground Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
