SolFirsTech Aluminum Carport Mounting Systems specializes in manufacturing and designing to meet the needs of various pole mount installation.
Item NO.:
SF-CM-004Payment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
Fujian, ChinaColor:
NormalShipping Port:
XiamenLead Time:
within 15-30 working daysSolar PV Carport Mounting Structure N Shape Design
SolFirsTech aluminum carport mounting systems adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts & nuts material, it is with concise and beautiful appearance. It is quite easy and fast installation without any welding in the site.
Specifications for PV Carport Mounting Structures
|
Mount Type |
carport mounting systems |
|
Applicable site |
Open ground |
|
Applicable Module |
framed panel or frameless panel |
|
Module Orientation |
landscape or portrait |
|
Wind load |
Up to130mph(60m/s) |
|
Snow load |
Up to 30pSolFirsTech (1.4KN/m2) |
|
Material |
aluminum alloy |
|
Warranty |
10years on Al6005 and SS304 |
Features of SolFirsTech Carport Mounting System
• Easy Installation
Parts have been high pre-assembly on factory to save your installation time.
• Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
• High Flexibility
Smart Designed project-specific to meet local building situations.
• Extremely Fastness
All racks connected N/S, E/W. Each section is bonded together by the N/S connection
• Long lifespan
Strong Anti-corrosive, Strong stability, High Intensity. 10 years Warranty for guarantee.
• High quality service
Customized requirements available
Design Details

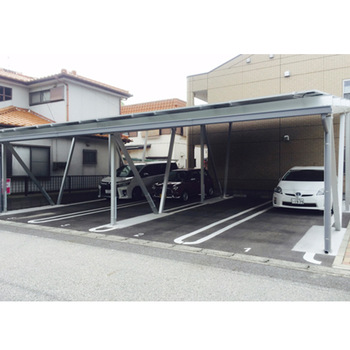

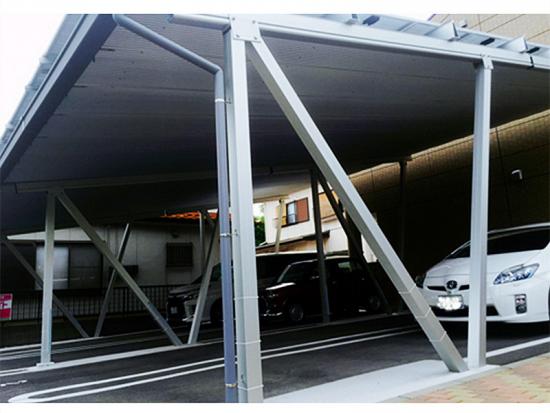

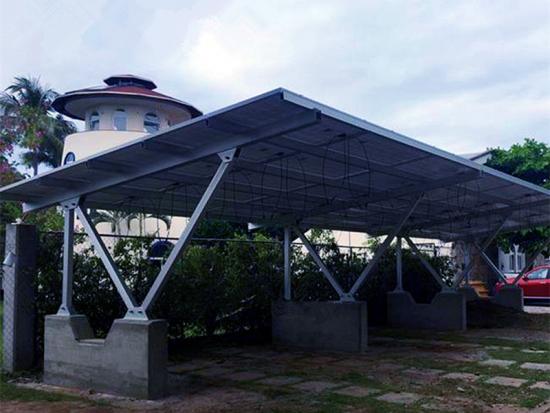

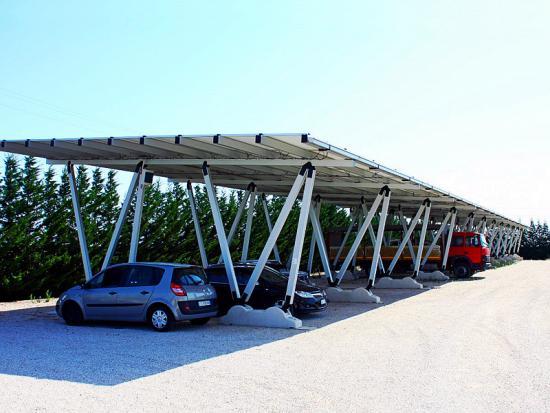

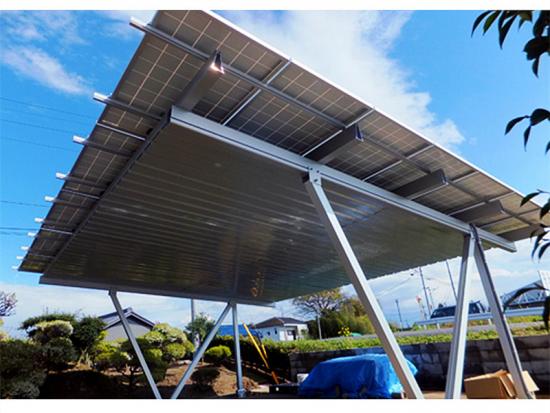

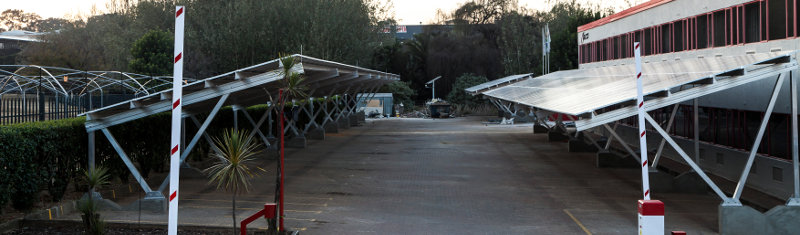

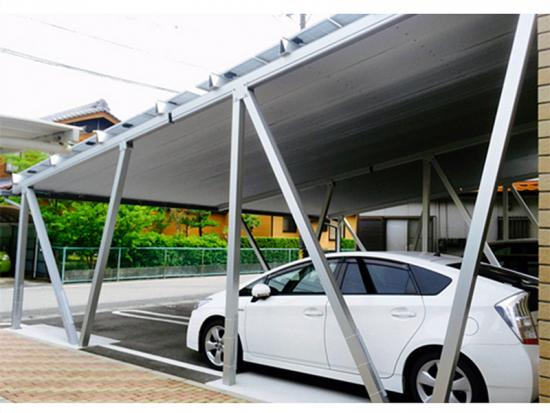

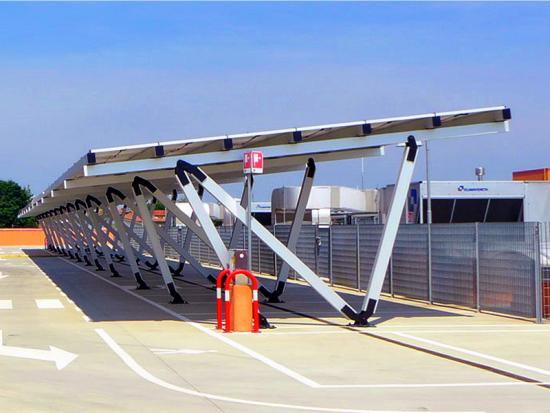

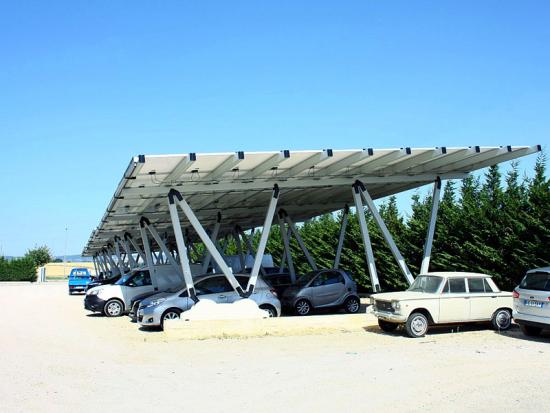

Photo Show of SolFirsTech Carport Mounting System
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System.Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System. Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
SolFirsTech Carport Mounting System product introduction specializes in SolFirsTech carport mounting manufacturing and designing to meet the needs of various pole mount installation.

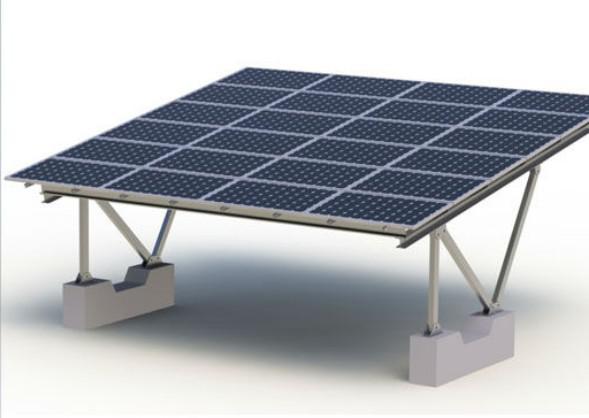

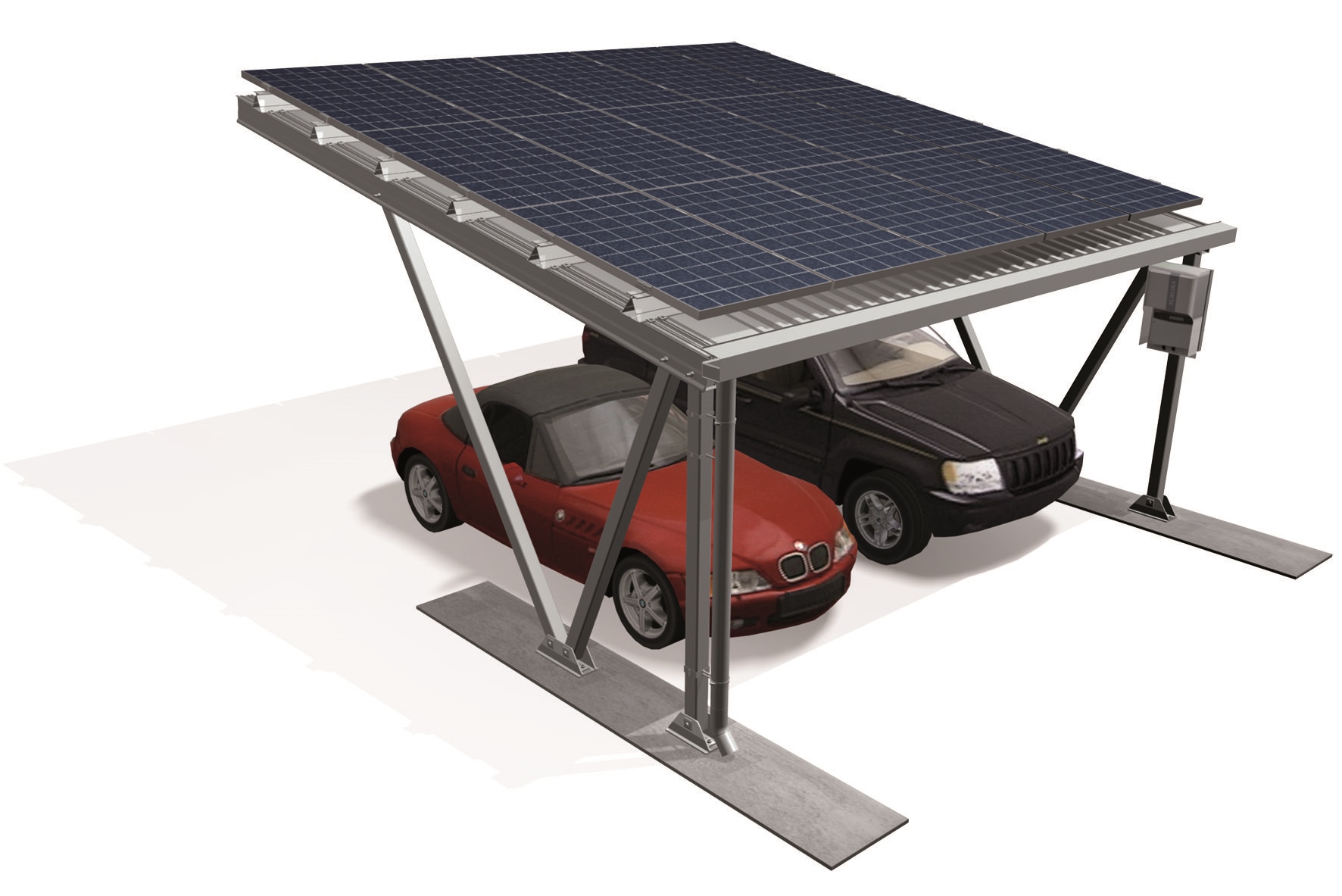

SolFirsTech aluminum solar carport is made of high-strength aluminum alloy to meet customer's demand for safety installation, efficiency and aesthetics. To maximize the use of space, the carport bracket utilizes a special structural design, which allows to park two or four cars in each unit.
Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
