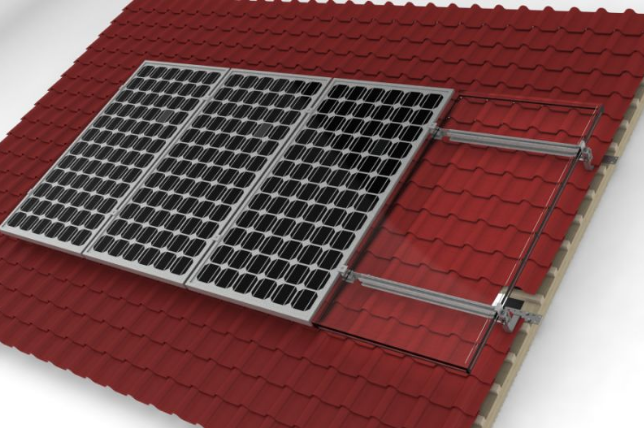

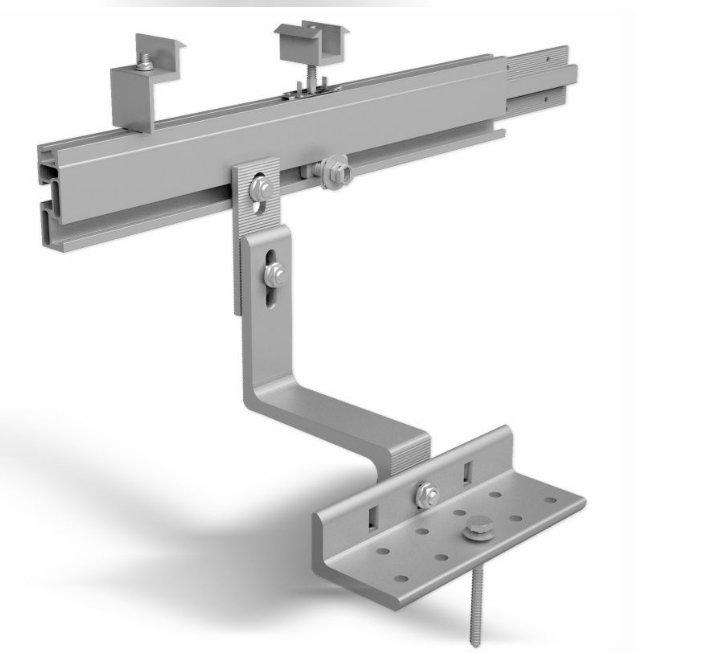

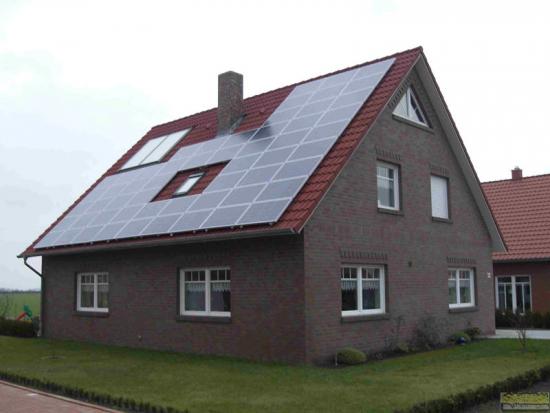

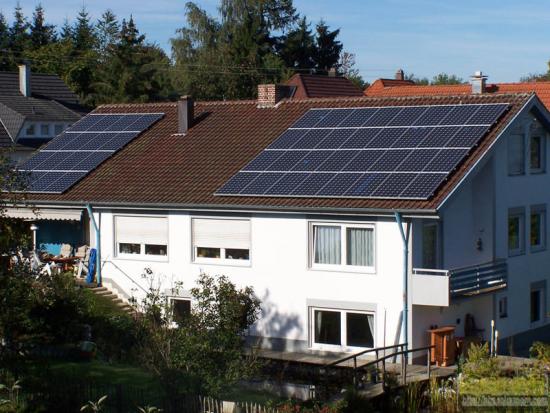

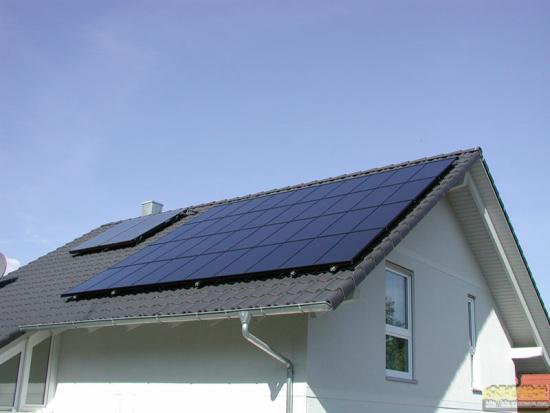

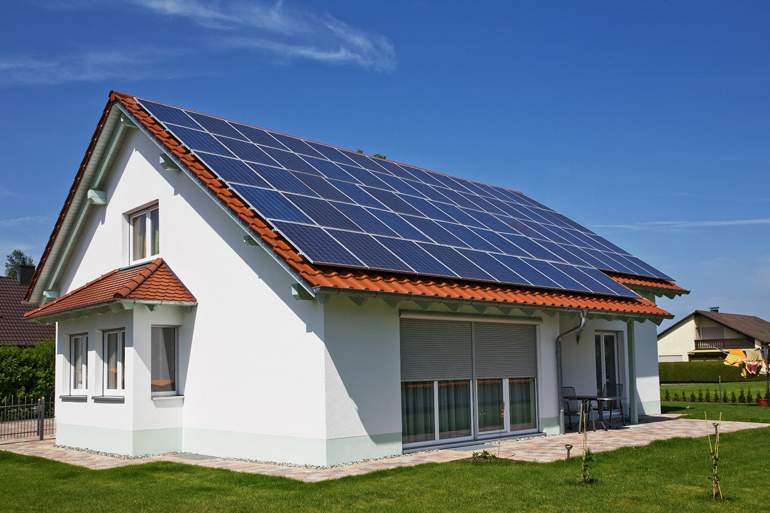

Pitched Roof PV Brackets Solar Panel Mounting Kit for Tile Roof

Tilted Tile Roof Mounting Bracket Solar Panel Mounting for Tile Roof

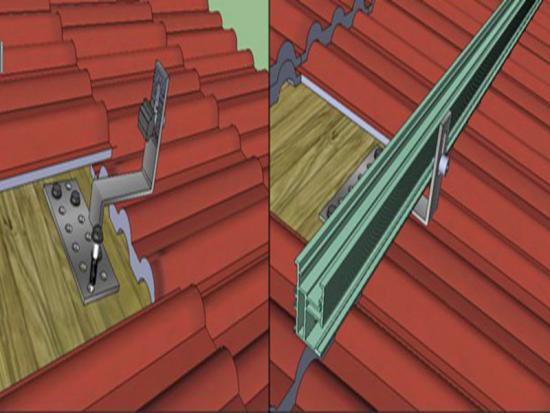

SolFirsTech Tilted Tile Roof Solar Bracket is suitable for installing framed and frameless modules flushed to the tilted roof. The professional design make the istallation more easily and quickly. High preassembly parts and customized solution to save your install time and money.

SolFirsTech FLAT GROUND MOUNT - N TYPE, V TYPE, W TYPE

N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation  Ground Wind Load  up to 60m/s Snow Load   1.4kn/m² Standards   GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty   10 Years Warranty

PV Off-grid System

Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time,   clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection)   Application ·Home  ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters   System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V     48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set   1   100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694

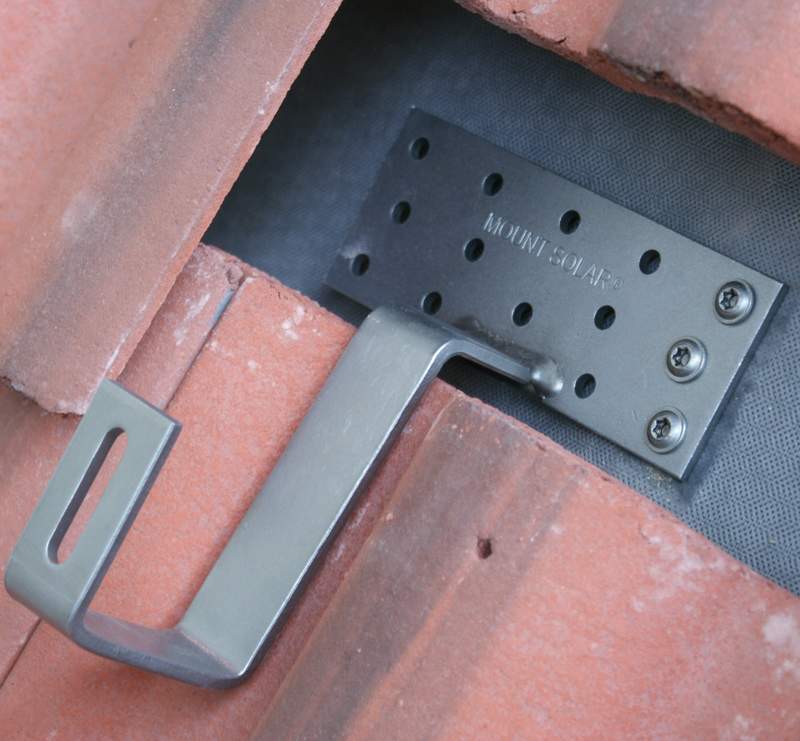

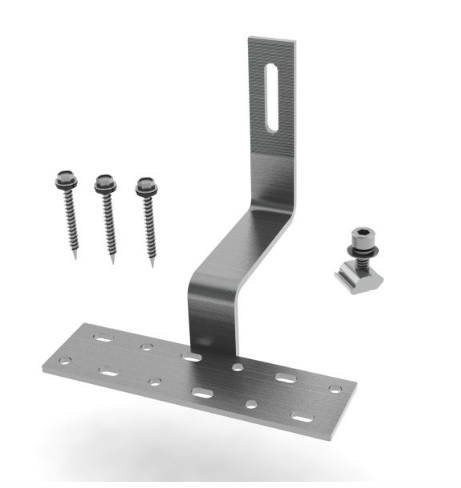

SUS304 Solar Roof Hooks For Tile Roof

Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life

Flat Roof Ballast Solar Mounting Bracket Concrete Foundation

Solar First Ballast Roof Mounting Bracket is suitable for most types of roof with different roof hooks. With innovative rail and module, tile roof mount enables significantly faster and easier installation.

SolFirsTech C-STEEL GROUND MOUNT - SCREW PILE FOUNDATION

Installation Steps Accessories Technical Details Installation  Ground Foundation  Screw Pile / Concrete Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material  Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty  10 Years Warranty

SolFirsTech CONCRETE ROOF MOUNT - ADJUSTABLE TRIANGLE

Technical Details Design Description: This solution is also applicable to ground or concrete roof with small inclination. Light structure, strong strength, good flexibility, customer may choose tilt angle according to project need. Installation  Ground/Concrete Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  5~60° Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty  10 Years Warranty

Customized High Quality U Rail for Trapezoidal Rooftop

Duo Series Dual Axis Solar Tracking Systems

Features & Characteristics High Adaptability   Adapt to almost all terrain High Stability  Herringbone structure, multi-point support, square mesh shape design Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability    Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Smart Tracking  Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Tracker Structure Tracking Technology Dual Axis Tracker System Voltage 1000V/1500V Tracking Range Azimuth ±120°, Elevation 0-60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker W40 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Independent Foundation Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.5kWh per day Project Reference

Factory supply high quality aluminum alloy middle clamp with thin film for photovoltaic panel mounting system

Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.

Galvanized Ground Screw Pile Anchor with Flange

Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram

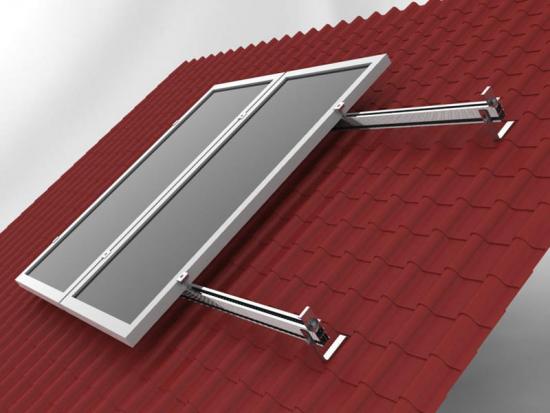

Triangle Roof Mounting System fixed Tilt Solar Roof Mount

SolFirsTech Triangle Roof Mounting System fits for most of available solar panels, and they can scale easily from small to large installations. SolFirsTech all has a strict control process to ensure the mounting structural strength and the life of system.
