Item NO.:
SF-GS-01Payment:
TT, L/CProduct Origin:
Xiamen, ChinaColor:
silverShipping Port:
Xiamen,ChinaLead Time:
within 20 working days
|
Product Name |
Ground Screw |
|
Connect Style |
Flange (Triangle, Square, Round, Hexagon), Bolts |
|
Material |
Hot-dip Galvanized Steel or Aluminum Alloy |
|
Surface Treatment |
HDG DIN EN ISO1461 |
|
Length |
300mm-3000mm |
|
Pipe OD |
48mm-219mm |
|
Pipe Wall Thickness |
1.8mm-4.0mm |
|
Flange Thickness |
8mm/10mm |
|
Warranty |
10 Years Warranty |

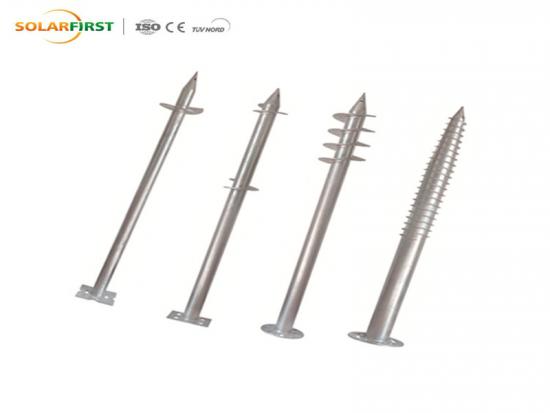

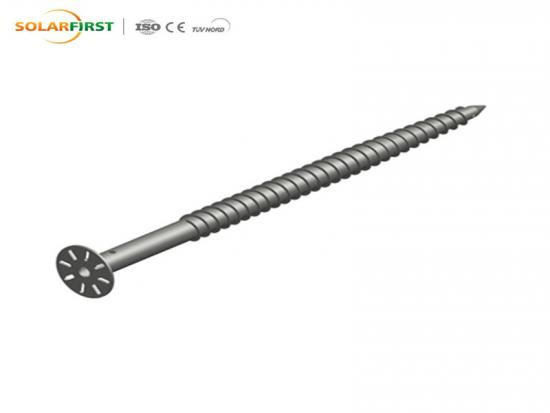

Easy installation,all kinds of length Hot Dip Galvanized Ground Screw Pile.
Whole Ground Screw can be Used for many kinds of application, like Solar System; Timer-Fram Construction; Advertising and Traffic Systems; Urban Garden and Landscape Construction; Flag Poles and so on.

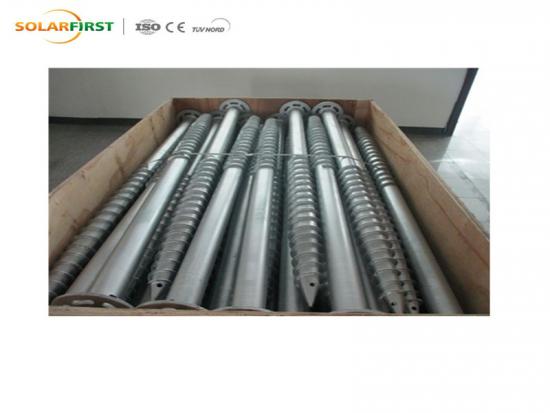

Our Ground Screw is made of Q235 material. It is anti-corrosion with hot-dip galvanization and compatible with screwing machine in the open area easily. The length and size can be customized.
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.

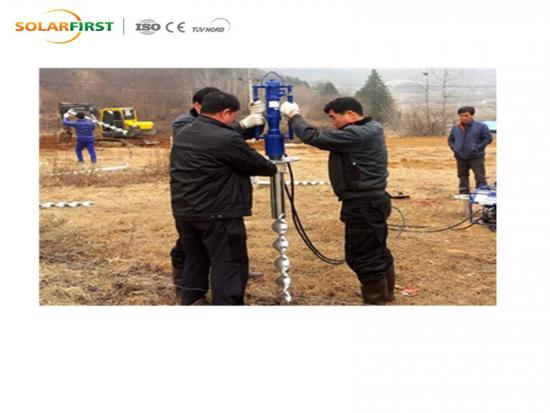

Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram

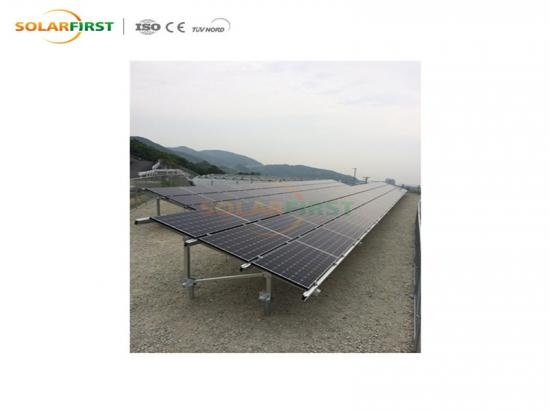

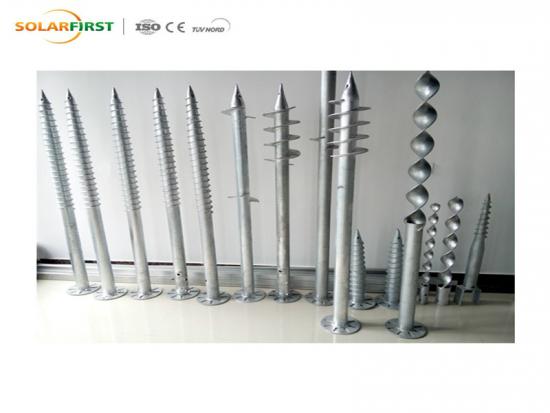

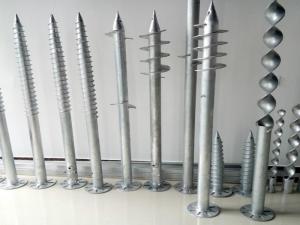

Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Characteristics · Dual CPU intelligent control technology, with pure sine wave AC output, adapted to various types of loads. · Uility power mode (mains mode) lenergy saving mode/battery mode can be set. Flexible application · 5VDC-USB output, convenient and practical · Easy to carry Application ·Expeditions ·Outdoor camping ·Night Market lighting ·Home lighting ·Poverty areas System Parameters System power 0. 3KW 0.5KW 1KW Solar panel power 180W 250W 360W Number of solar panels 2片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Controller 12V30A 24V20A 24V30A Lithium battery/Lead-acid battery(Gel) 12V 24V Battery capacity 60Ah 120Ah DC output 5V2A USB Output ×2 Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65HZ Inverter off-grid rated output power 0. 3KW 0.5KW 1KW Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0~+40°C Cooling method Air-cooled AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting(one set)
Solar panel mounting system for klip lok type metal roofing sheet.
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
Aluminum L Feet use for Roof Mounting System, connect the rails and solar panel. The size can be customized.
