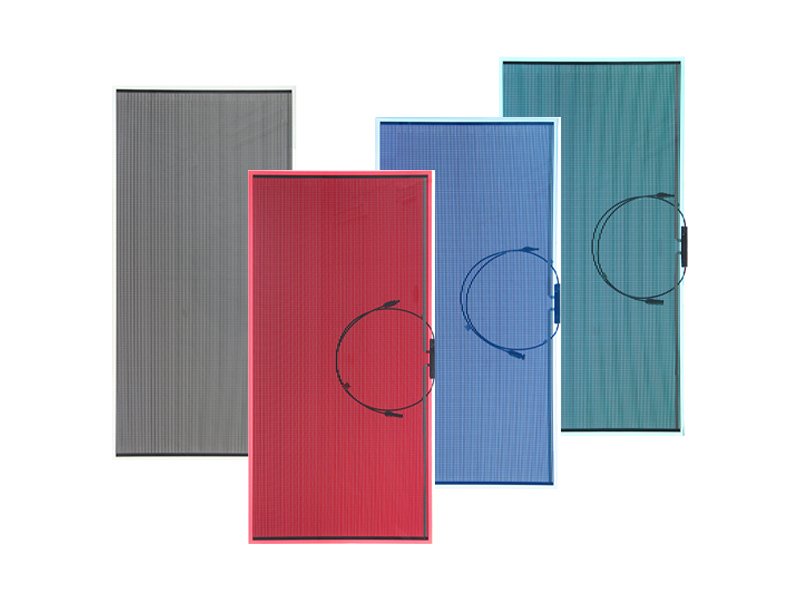

Features
EXCELLENT POWER GENERATION PERFORMANCE
SolFirsTech series CdTe thin film modules have a high efficiency and a proven excellent
record on power generation performance.
HIGH CONVERSION EFFICIENCY
Cadmium Telluride is a semiconductor compound with a high absorption coefficient, 100 times higher than silicon. The band gap width of cadmium telluride is more suitable for photovoltaic energy conversion than silicon. To absorb the same amount of light, the thickness of cadmium
telluride film is only one hundredth that of silicon wafer. Today, the world record of cadmium telluride thin film conversion efficiency has reached 22.1% in the laboratory. And the CdTe thin film solar module produced by SolFirsTech reaches to 14% and above on conversion efficiency. The SolFirsTech series products have obtained TUV, UL and CQC certififications.
LOW TEMPERATURE COEFFICIENT
The temperature coefficient of SolFirsTech CdTe thin film solar module is only about -0.21%/℃, as the traditional silicon solar module temperature coefficient reaches to -0.48%/℃. For most of high solar irradiance regions on earth, the temperature of solar module at working can reach to 50℃ or above. Thus this fact have greater
EXCELLENT LOW-IRRADIANCE EFFECT
Cadmium telluride is a direct-band gap material with high absorption for the full spectrum. Under low lightcondition, in dawn, dusk of a day or in a diffuse lighting, the power generation performance of CdTe thin film solar module has been proven to be higher than that of crystalline
silicon solar module which is made by an indirect band gap material.
GOOD STABILITY
No intrinsic light-induced degradation effects.
LOW HOT SPOT EFFECT
The elongated cells of CdTe thin film module help to reduce the hot spot effect of module,which leads to a great advantage of improving the power generation capacity, ensuring the safety in usage and product life.
MINIMAL BREAKAGE RATE
Contributed by a proprietary technology adapted in SolFirsTech's CdTe modules manufacturing process, SolFirsTech CdTe module has a minimal breakage rate.
EXCELLENT APPEARANCE
CdTe modules have uniformity color - pure black which provides an excellent appearance, fit best in buildings that have higher standards on appearance, unity and energy-independance.

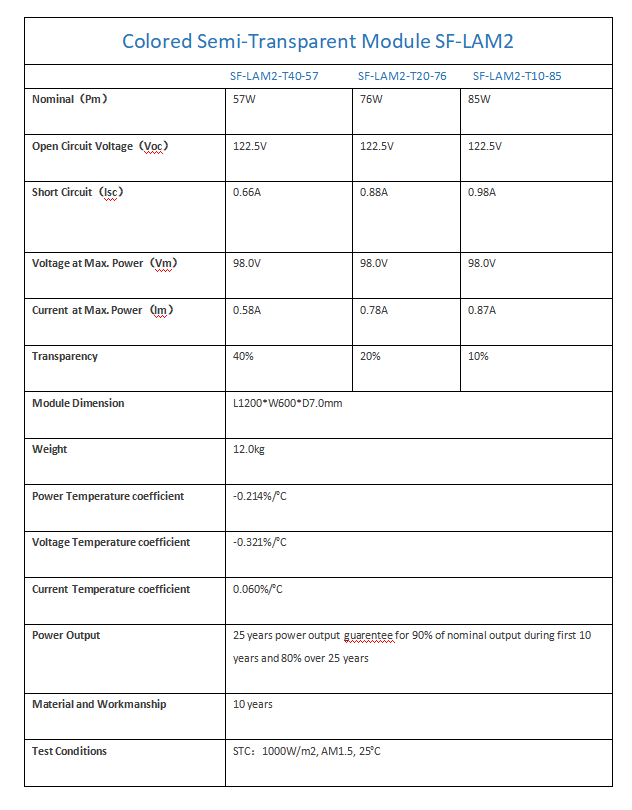

Parameters:
Project Reference
SolFirsTech Roof Mounting System is widely used for commercial roof & residential roof solar mounting system, fast installation and save labor cost.
Solar First Ballast Roof Mounting Bracket is suitable for most types of roof with different roof hooks. With innovative rail and module, tile roof mount enables significantly faster and easier installation.
Characteristics · Dual CPU intelligent control technology, with pure sine wave AC output, adapted to various types of loads. · Uility power mode (mains mode) lenergy saving mode/battery mode can be set. Flexible application · 5VDC-USB output, convenient and practical · Easy to carry Application ·Expeditions ·Outdoor camping ·Night Market lighting ·Home lighting ·Poverty areas System Parameters System power 0. 3KW 0.5KW 1KW Solar panel power 180W 250W 360W Number of solar panels 2片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Controller 12V30A 24V20A 24V30A Lithium battery/Lead-acid battery(Gel) 12V 24V Battery capacity 60Ah 120Ah DC output 5V2A USB Output ×2 Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65HZ Inverter off-grid rated output power 0. 3KW 0.5KW 1KW Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0~+40°C Cooling method Air-cooled AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting(one set)
Multi-Row Type Structure Multi-row module installation design may increase land utilization rate, improve power generation efficiency, and raise economic benefits. Recommended tilt angle: Less than 15° Recommended environment: High snow load and wind load. l-Type Structure The structure is fixed by two open posts. It is stable, and convenient in installation. Recommend ed environment: Low snow and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Technical Details Installation Tile Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Stainless Steel SUS304 Warranty 10 Years Warranty
Aluminum Ballasted Mounting System,easy to install---The simple design and pre-assembled components ensure a quick and easy installation.
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
SolFirsTech-RC Roof Clamp Series Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
