Grounding Accessories

SolFirsTech ACCESSORIES

Ground Screw Apply carbon steel Q235 with HDG coating > 80μm, excellent in corrosion resistance. Custom-made solutions are available. DRAWING

Rail

Accessories The accessories are made of anodized aluminum 6005-T5. The fasteners are made of SUS304. No. Product Name Picture SolFirsTech-DR05-L Rail SolFirsTech-DR06-L Rail SolFirsTech-HR-L Rail SolFirsTech-HR-L Rail SolFirsTech-DR05-SP Rail Connector SolFirsTech-HR-SP Rail Connector SolFirsTech-RC-A Rail Clamp Kit

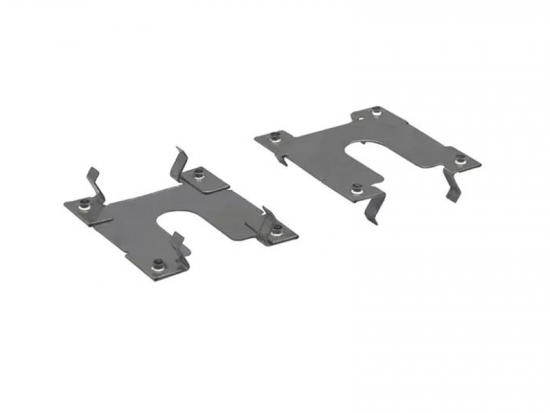

Cable Clip

One of the best things you can do for the long-term success of a photovoltaic (PV) system is to prioritize wire management during the installation process. SolFirsTech-CC-01 SolFirsTech-CC-02 SolFirsTech-CC-03 SolFirsTech-CC-04 SolFirsTech-CC-05

Module Clamps

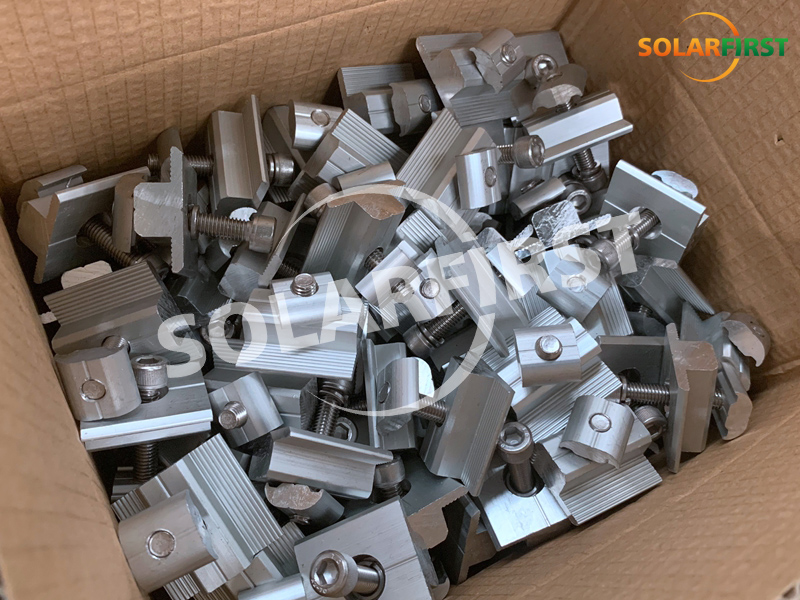

Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit

PV Telecommunication Base Station

Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense     ·Pastoral areas     ·Islands     ·Telecommunication base stations   System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)

Horizon D Series Single Point Drive Single Axis Solar Tracking Systems

Features & Characteristics High Adaptability  Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles  The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility   Compatible to 182/210mm cell solar modules Accessibility  Obstacle-free among independent trackers, easy for construction and maintenance Reliability   The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking   Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design  The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day

SolFirsTech FENCE

Why Fence ·To effectively protect personnel safety both inside and outside the project site. ·To prevent theft.

SolFirsTech TILE ROOF HOOKS

Technical Details Installation  Tile Roof Wind Load  up to 60m/s Snow Load  1.4kn/m² Tilt Angle  Parallel to Roof Surface Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Stainless Steel SUS304 Warranty  10 Years Warranty

Customized High Quality U Rail for Trapezoidal Rooftop

SolFirsTech BIPV ROOF MOUNT

SUS304 Solar Roof Hooks For Tile Roof

Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life

SolFirsTech FLAT GROUND MOUNT - MULTI-ROW TYPE, I TYPE

Multi-Row Type Structure Multi-row module installation design may increase land utilization rate, improve power generation efficiency, and raise economic benefits. Recommended tilt angle: Less than 15° Recommended environment: High snow load and wind load. l-Type Structure The structure is fixed by two open posts. It is stable, and convenient in installation. Recommend ed environment: Low snow and wind load. Technical Details Installation  Ground Wind Load  up to 60m/s Snow Load  1.4kn/m² Standards  GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material  Anodized Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty  10 Years Warranty
