SolFirsTech Mini Rail Clip Lock is well-received by customers and is widely applied in our Malaysian Rooftop projects.

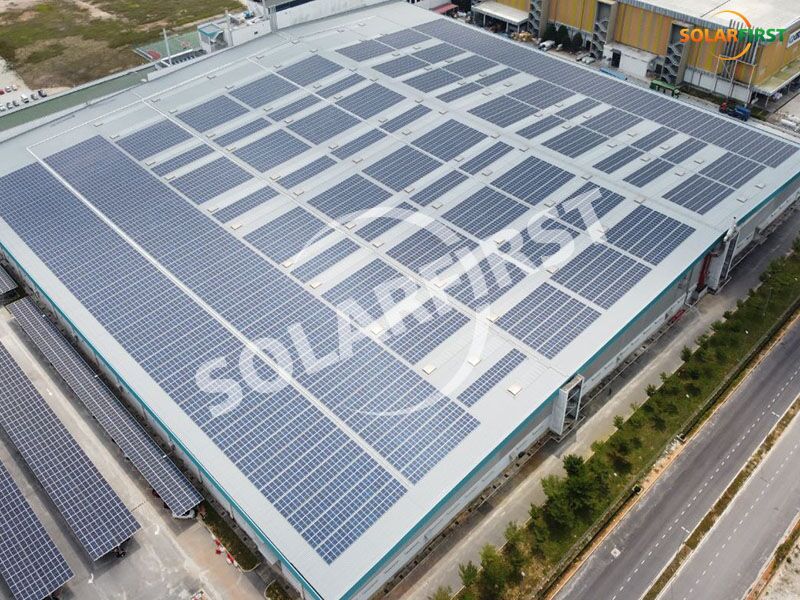

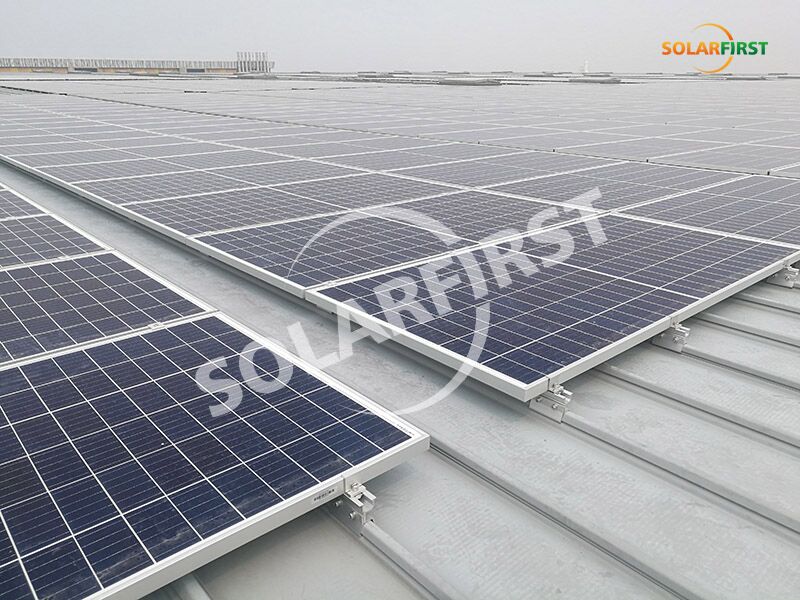

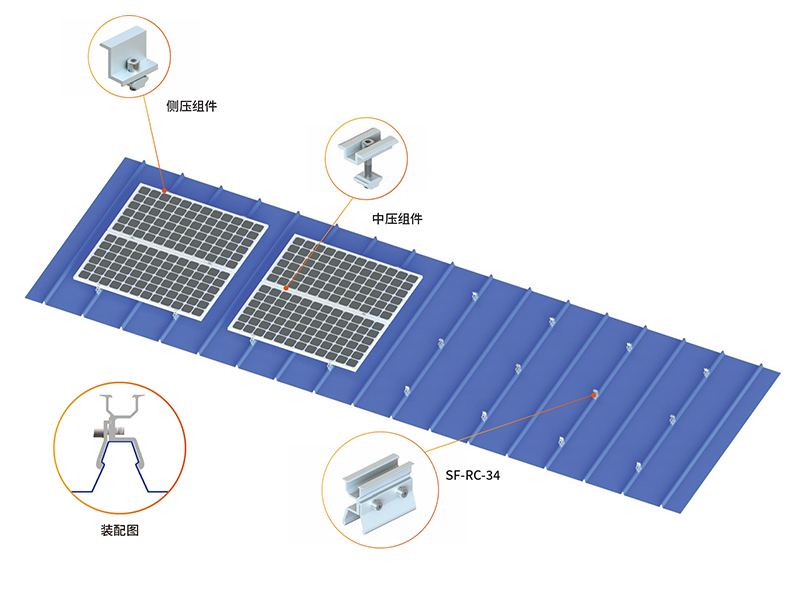

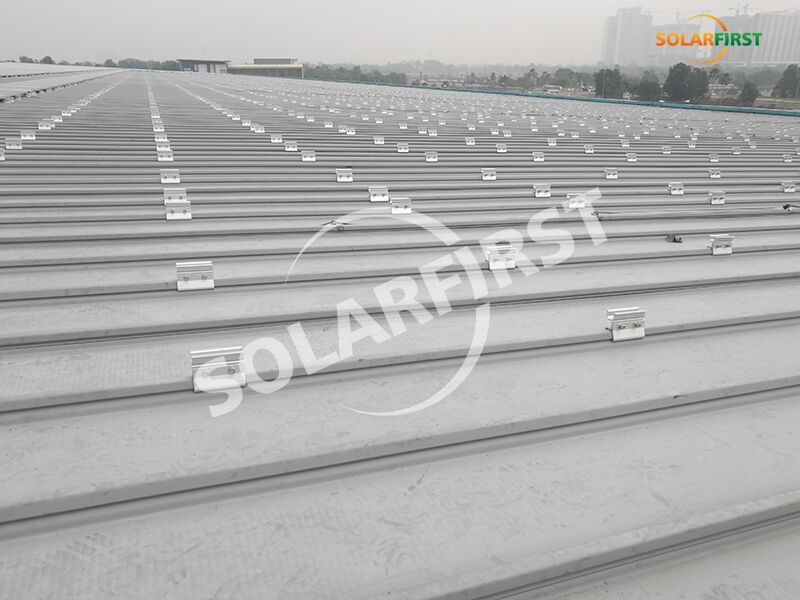

SolFirsTech Mini Rail Clip Lock used in Malaysia 4MW Rooftop. Project is made of AL6005-T5 and SUS304 bolts, and is locked on metal roof directly. End Clamp Kits and Mid Clamp Kits are placed above the Clip Locks to fix the solar panels tight.
Payment:
T/TMarket Price:
$0.05Price:
$0.02/WattProduct Origin:
Xiamen, ChinaColor:
silverShipping Port:
Xiamen,ChinaLead Time:
within 20 working days
Compared with traditional clamp solutions, this Mini Rail Clip Lock has the following characteristics：
1. Aluminum alloy material: anodizing treatment makes the structure resistant to corrosion.
2. Accurate positioning: install the mini rail clip lock according to the drawing, no errors, no adjustments.
3. Quick installation: easier to mount the solar panel without long roof rails.
4. No hole-drilling: no leaking will occur after assembling.
5. Low shipping cost: no long rails, smaller size and lighter weight, can save container space and shipping cost.
Light weight, no rail and no hole-drilling solution make SolFirsTech Mini Rail Clip Lock project cost-saving, time-saving and easy for assembling.

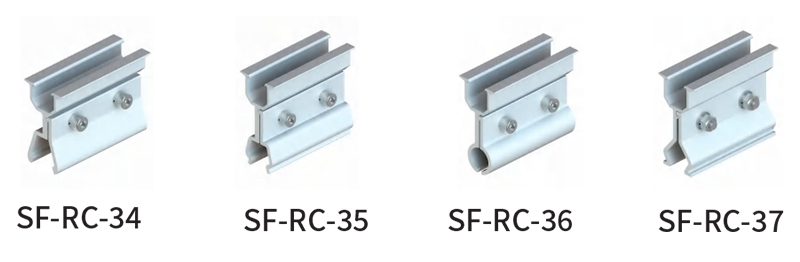

SolFirsTech-RC Roof Clamp Series
|
Technical Details |
|
|
Installation |

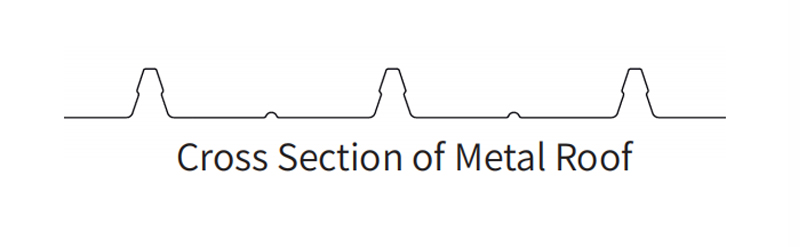

Metal Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
Parallel to Roof Surface |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Single Pole Ground Mounting system is designed to mount 4, 6, 8 or 10 panels each pole which delivers effective, flexible and long-term durable. Use our pole mounting, rail and clamps highly pre-assembly ensure easy to install for saving time and amount of labor.
N-Type Structure Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load. V-Type Structure Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach. Recommended environment: Low snow load and wind load. W-Type Structure Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments. Recommended environment: High snow load and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
SolFirsTech Tilted Tile Roof Solar Bracket is suitable for installing framed and frameless modules flushed to the tilted roof. The professional design make the istallation more easily and quickly. High preassembly parts and customized solution to save your install time and money.
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Garden ·Plaza ·Industrial city and country road ·Highway Solar Street Light Specifications Solar panel power 85W±15% 120W±15% 150W±15% 240W±15% 240W±15% battery capacity 12V/100Ah 12V/150Ahx2 12V/100Ahx2 12V/150Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 30W 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 6.0m 7.0m 8.0m 9.0m 9.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind grade 10） Rainy days 5~7 Days
Characteristics ·Integrated, easy installation and maintenance, low operating cost, high efficiency and safety, economical and practical ·Deep well pumping water to meet farmland irrigation or drinking by humans and animals, effectively solving the problem of water supply in areas lacking water and electricity ·Noise free, free from other public hazards, energy saving, environmental friendly and a wide range of applications Application ·Water shortage and power shortage areas ·Pumped for deep water Solar DC Pumping System Specrfications Solar panel power 500W 800W 1000W 1500W Solar panel voltage 42-100V 63-150V Rated power of water pump 300W 550W 750W 1100W Rated voltage of water pump DC48V DC72V Maximum lift of water pump 35m 50m 72m Maximum flow of water pump 3m3/h 3. 2m3/h 5m3/h Outer diameter of water pump 3 inch Pump outlet diameter 1 inch Water pump material Stainless steel Pump conveying medium Water Photovoltaic mounting type Ground mounting
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
Solar Carports offers a fexible,simple and affordable solution for Solar Mounting System.Solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
This photovoltaic smart street light converts solar energy to electrics for lighting compared to traditional street lights. It has obvious advantages of environmental protection, energy saving, and high efficiency. Combined with smart functions, this street light system also provides not only comfortable and automatic light, but also information collection, information transmission, and information release. It will be an important approach for and a terminal of smart communities and smart cities in the future . Smart system + solar; a new type of energy-saving model; a symbol of the smart city.
Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
