Work with thin film solar module, glass-glass solar module, frame less solar module
No.q`

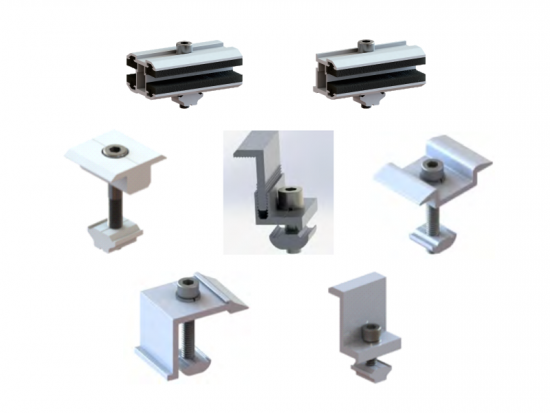

Product Name
SolFirsTech-BM-EC80
End Clamp Kit for Frameless Module
SolFirsTech-BM-IC80
Mid Clamp Kit for Frameless Module
SolFirsTech-MC-HP12
Mid Clamp Kit
SolFirsTech-MC-HP18
End Clamp Kit
SolFirsTech-MC-SolFirsTech71
End Clamp Kit
SolFirsTech-MCSolFirsTech70
Mid Clamp Kit
SolFirsTech-EC-F35-50
Adjustable End Clamp Kit

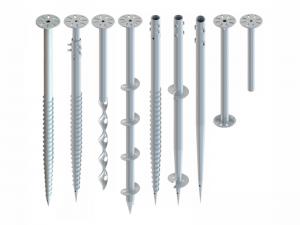

Ground Screw Apply carbon steel Q235 with HDG coating > 80μm, excellent in corrosion resistance. Custom-made solutions are available. DRAWING

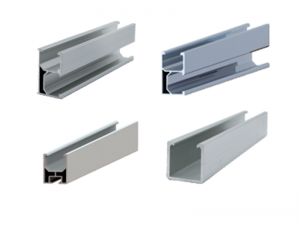

Accessories The accessories are made of anodized aluminum 6005-T5. The fasteners are made of SUS304. No. Product Name Picture SolFirsTech-DR05-L Rail SolFirsTech-DR06-L Rail SolFirsTech-HR-L Rail SolFirsTech-HR-L Rail SolFirsTech-DR05-SP Rail Connector SolFirsTech-HR-SP Rail Connector SolFirsTech-RC-A Rail Clamp Kit

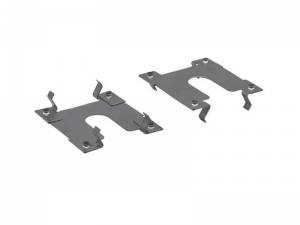

Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
One of the best things you can do for the long-term success of a photovoltaic (PV) system is to prioritize wire management during the installation process. SolFirsTech-CC-01 SolFirsTech-CC-02 SolFirsTech-CC-03 SolFirsTech-CC-04 SolFirsTech-CC-05
L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Garden ·Plaza ·Industrial city and country road ·Highway Solar Street Light Specifications Solar panel power 85W±15% 120W±15% 150W±15% 240W±15% 240W±15% battery capacity 12V/100Ah 12V/150Ahx2 12V/100Ahx2 12V/150Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 30W 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 6.0m 7.0m 8.0m 9.0m 9.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind grade 10） Rainy days 5~7 Days

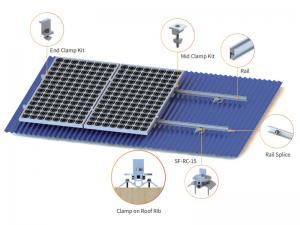

Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle 5°~ 45° Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Site Tile Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Solar L Feet is common used in Roof Solar System, it is the connector of rail and roof.
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
