Technical Details |
|
|
Design Description: This solution offers fast installation with minimum components. Its structure is light with high strength and good flexibility. |
|
|
Installation |
Ground / Concrete Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m2 |
|
Tilt Angle |
10°, 15°, 20° |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017 |
|
Material |
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 / Hot Dip Gavanized Steel |
|
Warranty |
10 Years Warranty |

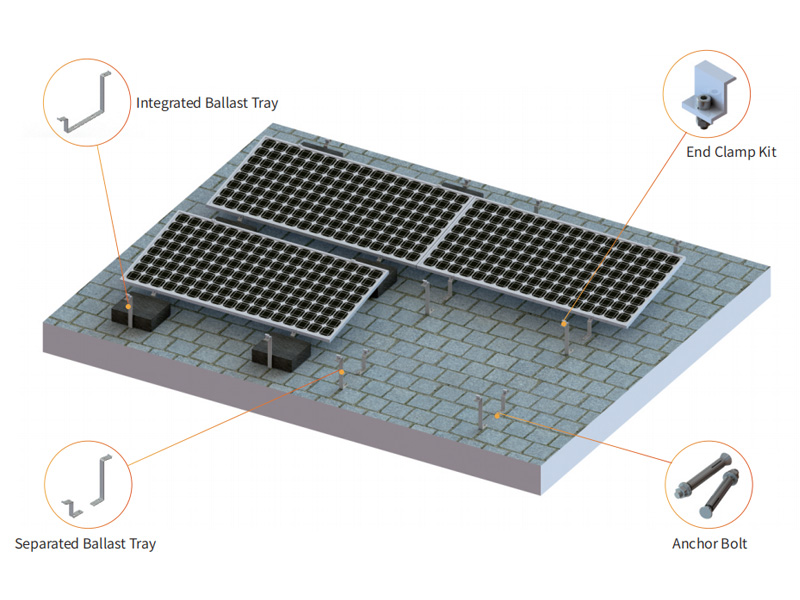

Solar First Ballast Roof Mounting Bracket is suitable for most types of roof with different roof hooks. With innovative rail and module, tile roof mount enables significantly faster and easier installation.

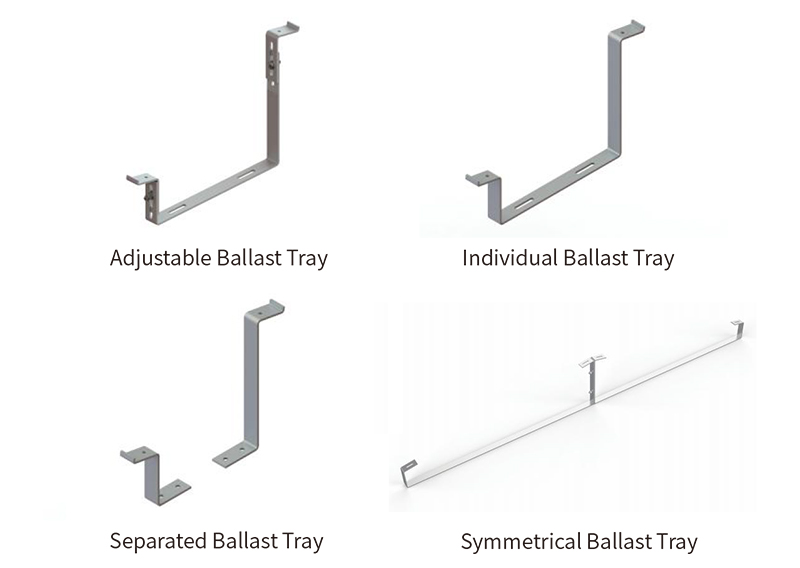

Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
Characteristics ·MCU dual-core design,excellent performance ·Utility power mode (mains mode)/energy-saving mode/battery mode can be switched, and the application is flexible ·Pure sine wave AC output, which can adapt to various types of loads ·Wide input voltage range, high-precision output, fully automatic voltage stabilization function ·The LCD module displays the operating parameters of the equipment in real time, clear operation status indication ·All-round protection function (battery overcharge, high voltage, low voltage protection, overload protection, short circuit protection, over temperature protection) Application ·Home ·School ·Street ·Frontier defense ·Pastoral area ·Industrial equipment ·Satellite communication equipment ·Ships and other new energy power generation fields System Parameters System power 1KW 3KW 5KW 10KW 15KW 20KW Solar panel power 335W 420W Number of solar panels 3 PCS 9 PCS 12 PCS 24 PCS 36 PCS 48 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 24V40A 48V60A 96V50A 216V50A 216V75A 216V100A Lithium battery/Lead-acid battery(Gel) 24V 48V 96V 216V Battery capacity 200Ah 250Ah 200Ah 300Ah 400Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 0.8KW 2. 4KW 4KW 8KW 12KW 16KW Maximum output apparent power on off-grid side 1KVA30S 3KVA30s 5KVA30s 10KVA10min 15KVA10min 20KVA10min Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Working temperature 0 ~+40 °C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic bracket type Aluminum /Carbon steel bracket (one set) Electrical loads for 3KW off-grid solar system Electrical equipment No. Power（W） Daily Expense (h) Total electricity consumption（Wh） Desk fan 2 45 5 450 LED lights 4 2/3/5Z7 6 204 TV set 1 100 4 400 Micro-wave oven 600 0.5 300 Juicer 300 0.6 180 Refrigerator 150 24 150*24*0.8=2880 Air conditioner 1100 6 1100*6*0. 8=5280 Total electricity consumption 9694
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Installation Steps Technical Details Installation Ground Foundation Concrete Screw / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50017-2017 Material Hot Dip Gavanized Steel, Anodized Aluminum AL6005-T5, Zn-Al-Mg pre-coated steel, Warranty 10 Years Warranty
Solar L Foot use for Tin Roof PV Mounting System, with high quality and low price.
Technical Details Installation Tile Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Stainless Steel SUS304 Warranty 10 Years Warranty
Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
SolFirsTech Roof Mounting System is widely used for commercial roof & residential roof solar mounting system, fast installation and save labor cost.
