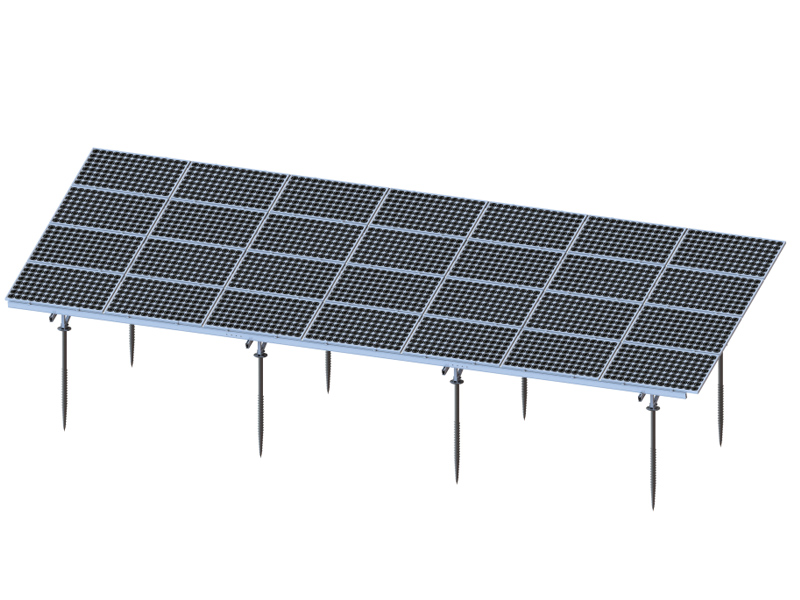

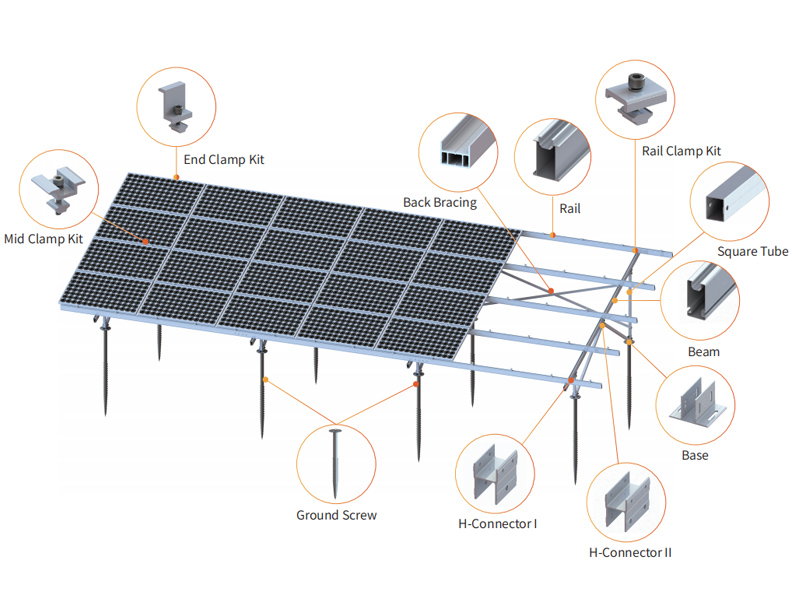

Concrete Foundation Solar Mounting System for PV Station
| Type: | Ground solar mounting Kit |
| Installation site: | According to Ground Type |
| Material: | Aluminum6063 T3-T5;Steel |
| Fasten material: | Aluminum |
| Anticorrosive: | Hot-dip galvanized |
| Survival Wind Speed: | < 60m/s |
| Design Snow load: | Up to 1.4KN/ Square meters |
| Solar panel type: | Framed or Frameless |
| Panel Orientation: | Transverse or vertical |
| Design Standard: | CE;IOS9001 |
| Quality warranty: | 12-25 years |
| Duration: | More than 20 years |
| Delivery time: | 7-15 days |
| Package: | Standard Packing |
Advantages as follow:
1. T connectors :40% installation time saving at least
2. Square tube enforcement pipe: Supporting strength increase 30% at least.
3. Multi panel arrays: meet for solar power plant project requirements.
4. Lower and Competitive price.
5. High strength and rust-resistance.

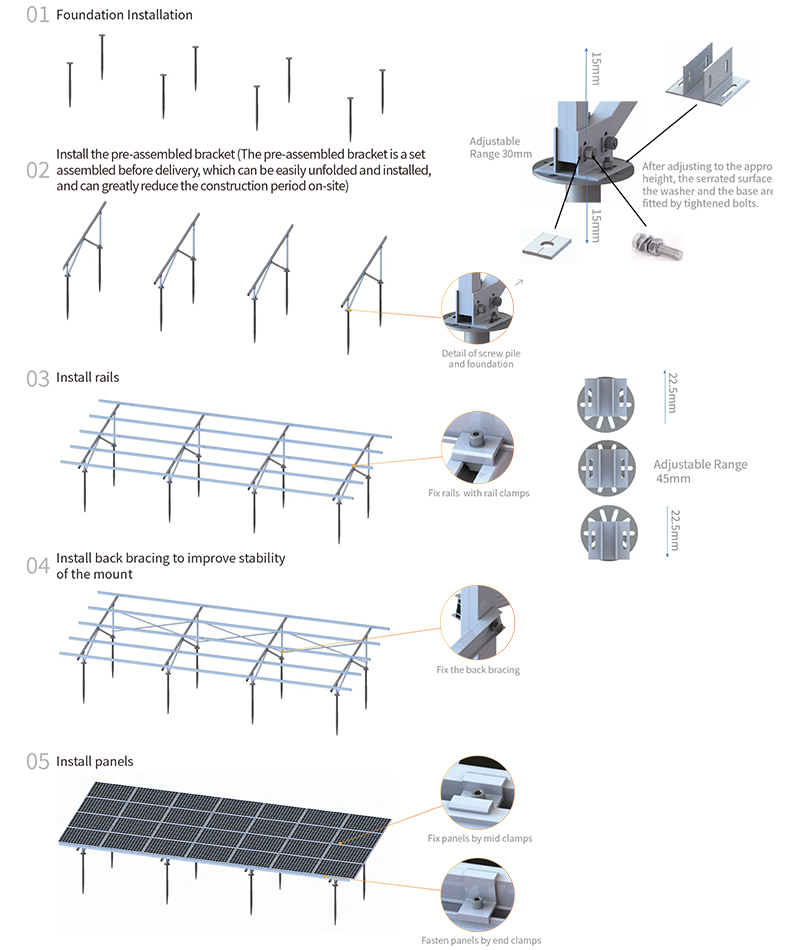

Installation Steps
Technical Details
Installation
Ground
Wind Load
up to 60m/s
Snow Load
1.4kn/m²
Standards
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007
Material
Anodized Aluminum AL 6005-T5, Stainless Steel SUS304
Warranty
10 Years Warranty
Project Reference
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C D SolFirsTech-RC-01 18 13.5 10.5 10 SolFirsTech-RC-02 26 12 10.5 18 SolFirsTech-RC-03 35 21.6 2.5 31.5 SolFirsTech-RC-04 16.3 16.3 2.5 12 SolFirsTech-RC-05 15 12.2 10 10 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Best configuration,fast installation,SolFirsTech PV Ballasted Mounting System through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.
This solution is also applicable on ground or concrete roof with small inclination. Its structure is light with high strength and good flexibility.
Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Galvanized magnesium aluminum steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤50m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤15° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
SolFirsTech Solar Carport Mounting System offers a flexible, simple and affordable solution for solar mounting system.
We design the Adjustable Mounting System surprisingly quick and easily install for every roof with outstanding quality of stainless steel and aluminum ensure the most durable brackets.
Installation Steps Accessories Technical Details Installation Ground Foundation Screw Pile / Concrete Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
