Item NO.:
SF-WS-60WPayment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
ChinaColor:
NormalShipping Port:
Xiamen,ChinaLead Time:
20-30 working daysProduct description

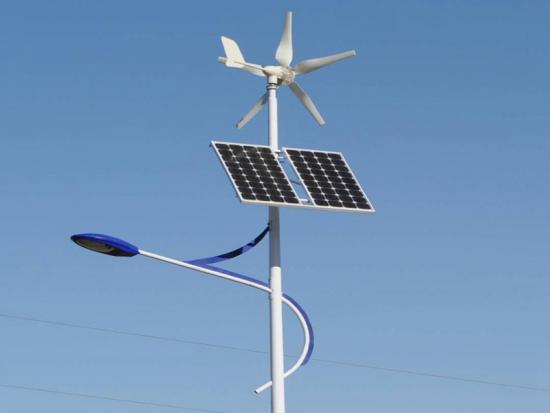

Two charging mode solar street lights are designed into one combined system,if there is sunlight bu no wind energy,the solar panel can charges the battery,meanwhile,if there is wind energy but no sunlight, the wind turbine can charge the battery.If both wind & solar energy is good enough ,both can charge the battery.

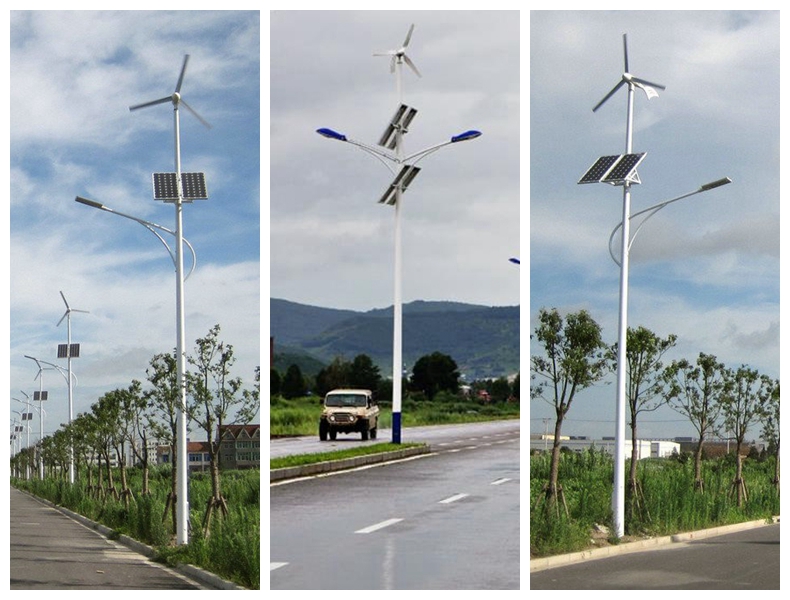

Major application if wind and solar street light: Highway ,Main road of city ,school campus road ,sidewalk,pathway,farm& ranches lighting,villa lighting ,landscape lighting -park,square etc.Especially used for those area with good wind energy.
|
Model No. |
SolFirsTech-WS-50W |
SolFirsTech-WS-60W |
SolFirsTech-WS-80W |
|
|
Performance |
Running hour per day |
above 12 hours, 360 days no off |
||
|
Battery backup days |
5-7 days |
|||
|

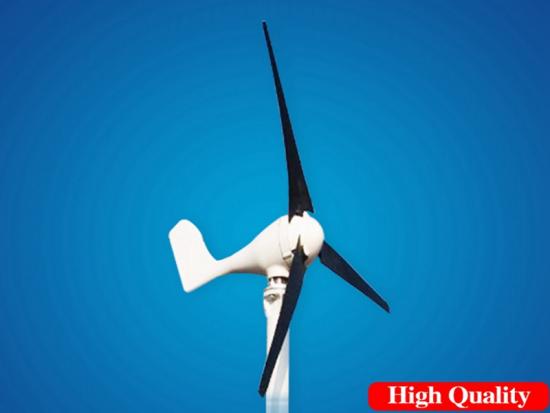

Wind Turbines |
Rated voltage |
24V |
||
|
Rated Power |
300W | 300W | 400W | |
|
Rated vellocity |
13m/s |
|||
|

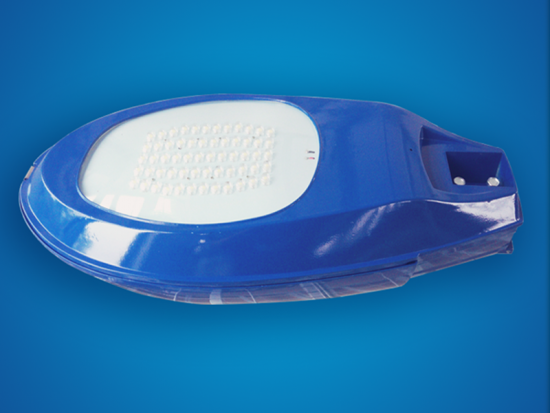

Light Source |
Working temperature |
-40 - + 75℃ |
||
|
Power |
50W | 60W | 80W | |
|
Lumens |
5500LM | 6600LM | 8800LM | |
|
Color Temperature |
3000K-6000K | 3000K-6000K | 3000K-5700K | |
|
Lighting Pole |
Height (M) |
7 | 8 | 10 |
|
Material |
Aluminum/Q235 |
|||
|
Process |
Hot-dip galvanized |
|||
|

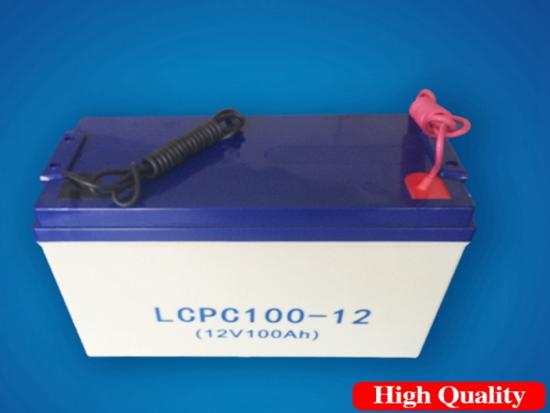

Battery |
Capacity |
120AH × 2pcs |
150AH x 2pcs | 200AH X 2pcs |
|
Type |
Lithium Battery |
|||
|
Controller |
Control Mode |
Photocell dimmable control + time contro |
||
|
IP Grade |
IP 65 |
|||
|
Protective Function |
Overcharging, discharging, voltage surge, reverse polarity |
|||

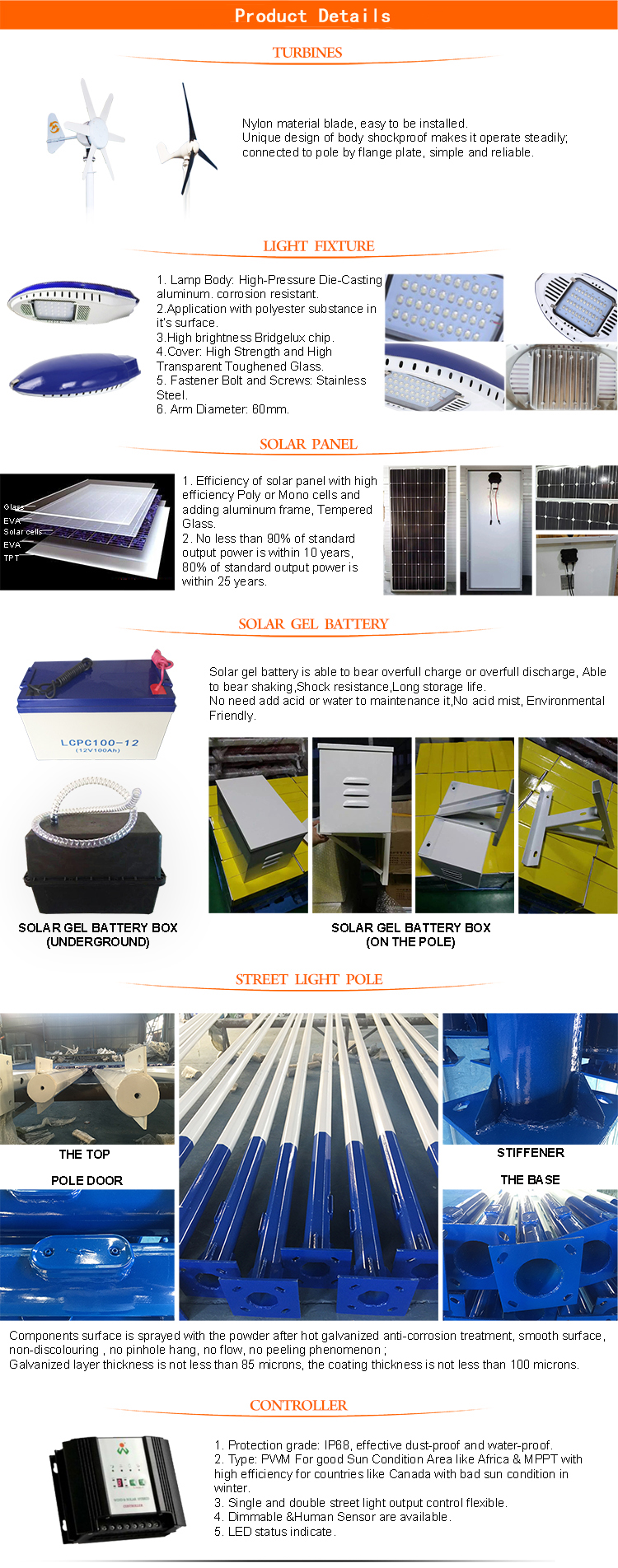

Product Details
Applications
Aluminum Waterproof Solar Street LED Light, simple design,practical,powered by solar, saving energy and environmental friendly.
Outdoor Waterproof Solar Garden Light, all in one design,easy install,high efficiency and energy saving.
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.
Characteristics ·Wind-solar hybrid system stable and reliable ·Cost-effective ·Flexible deployment ·Multiple application range ·Low maintenance cost ·High system integration lerel, small land area Application ·Scientific research demonstration ·Communication base station ·Household power supply ·Hydrological monitoring ·Forest fire prevention ·Frontier guard post ·Island power supply System Parameters Solar panel power 200W 250W 250W Number of solar panels 2 PCS 4 PCS 6 PCS Horizontal axis wind turbine 1KW 2KW 3KW Photovoltaic DC cable 1 SET MC4 connector 1 SET Wind and solar hybrid controller 1KW 2KW 3KW Lithium battery/Lead-acid battery(Gel) 24V 48V Battery capacity 200Ah 200Ah 300Ah Inverter AC input side voltage 170-275V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 1KW 2KW 3KW Maximum output apparent power on off-grid side 1.2KVA,30S 2. 4KVA, 30S 3. 6KVA, 30S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Switching time <10ms Working temperature 0 ~+40°C Cooling method Natural cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting（one set）
