Technical Details |
|
|
Installation |
Tile Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
Parallel to Roof Surface |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Installation Site Roof Type Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life

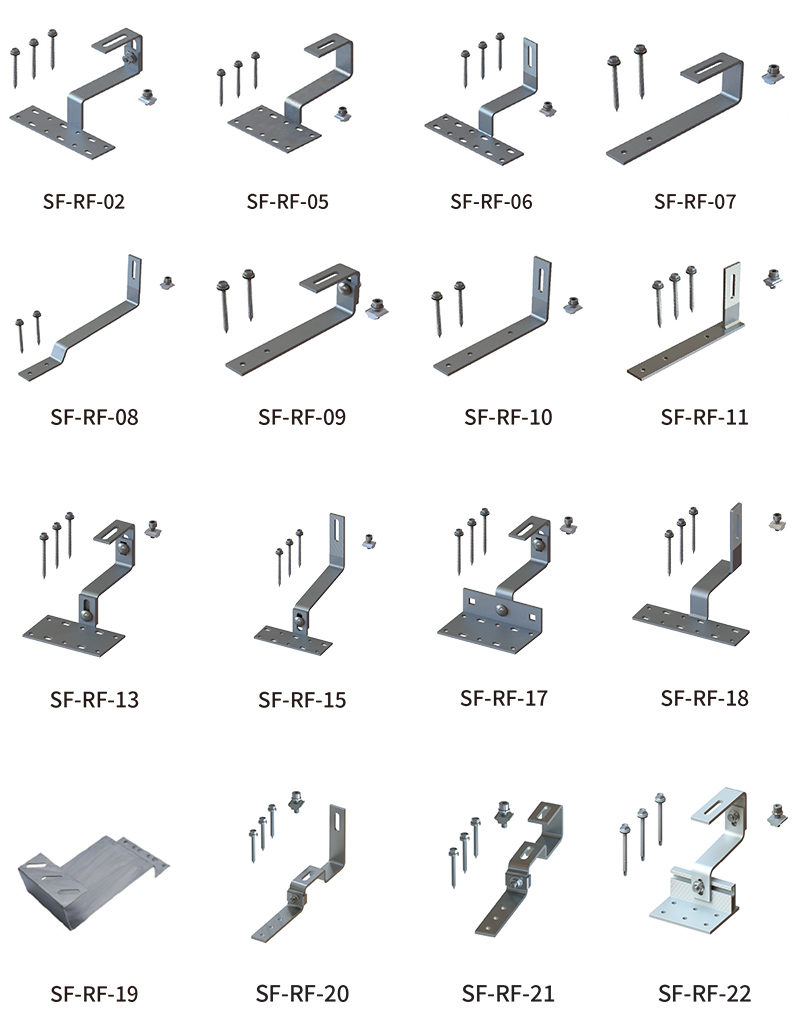

Different Tile Roof require different Tile Hook, based on Tile Roof mould,you can choose suitable hook as per your roof type.
Whole Ground Screw can be Used for many kinds of application, like Solar System; Timer-Fram Construction; Advertising and Traffic Systems; Urban Garden and Landscape Construction; Flag Poles and so on.
High quality Aluminum/Galvanized Steel Ground Solar Panel Mounting Structure
SolFirsTech Mini Rail Clip Lock is well-received by customers and is widely applied in our Malaysian Rooftop projects. SolFirsTech Mini Rail Clip Lock used in Malaysia 4MW Rooftop. Project is made of AL6005-T5 and SUS304 bolts, and is locked on metal roof directly. End Clamp Kits and Mid Clamp Kits are placed above the Clip Locks to fix the solar panels tight.
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
Ground Screw Pile Foundation Systems is the intelligent alternative fixing method for all types of ground anchor installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Types of PHC Piles Technical Details Design Description: 1. Applicable to water pools, marshes, wetlands or deep mud areas. 2. Particularly suitable for flood-prone areas. Installation Ground Foundation Concrete Spun Pile / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m2 Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 Material Anodized AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Features & Characteristics High Adaptability High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% High Stability The multi-point drive greatly increase the wind torsion resistance and critical wind speed Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45 m/s (ASCE 7-10) Modules per Tracker ≤120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive / Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
