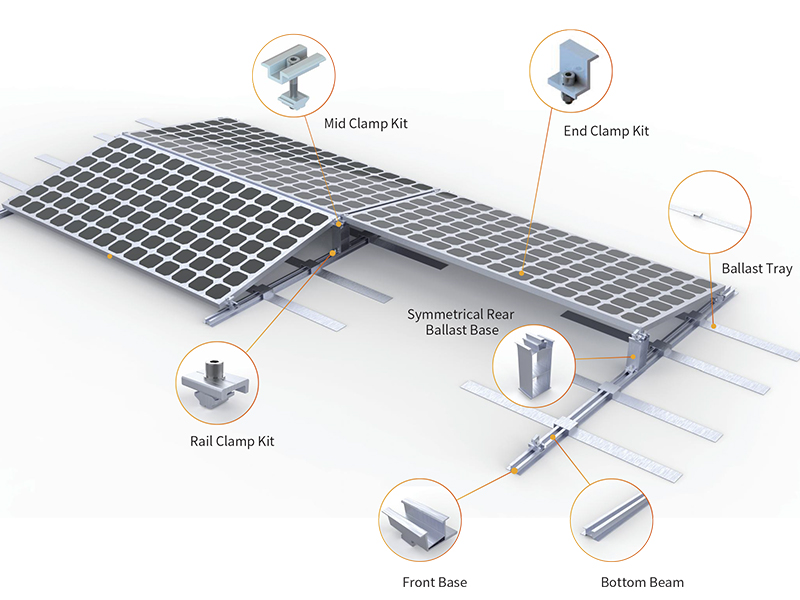

Design Description: Suitable for herringbone bi-directional ballasted system, which can better effectively resist the effect of negative wind pressure
|
|
|
|
Design Description: Suitable for herringbone bi-directional ballasted system, which can better effectively resist the effect of negative wind pressure |
|
|
Installation |
Ground/Concrete Roof |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Tilt Angle |
5°, 10°, 15° |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Our Ground Screw is made of Q235 material. It is anti-corrosion with hot-dip galvanization and compatible with screwing machine in the open area easily. The length and size can be customized.
Work with thin film solar module, glass-glass solar module, frame less solar module No.q` Product Name Picture SolFirsTech-BM-EC80 End Clamp Kit for Frameless Module SolFirsTech-BM-IC80 Mid Clamp Kit for Frameless Module SolFirsTech-MC-HP12 Mid Clamp Kit SolFirsTech-MC-HP18 End Clamp Kit SolFirsTech-MC-SolFirsTech71 End Clamp Kit SolFirsTech-MCSolFirsTech70 Mid Clamp Kit SolFirsTech-EC-F35-50 Adjustable End Clamp Kit
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Different Tile Roof require different Tile Hook, based on tile roof mould,you can choose suitable hook as per your roof type.
Characteristics ·Photovoltaic building integration, beautiful appearance ·Excellent combination with photovoltaic modules for carport with good power generation ·Photovoltaic power generation is energy-saving and environmentally friendly ·No emissions, no noise, no pollution ·Can supply power to the grid, gain bills from solar Application ·Factory ·Resort ·Commercial building ·Conference center ·Office building ·Open-air parking lot ·Hotel System Parameters System power 21.45KW Solar panel power 550W Number of solar panels 39片 Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 20KW Maximum output apparent power 22KVA Rated grid voltage 3/N/PE, 400V Rated grid frequency 50Hz Maximum efficiency 98. 60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 4km Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Charging pile 2 sets of 120KW integrated DC Charging piles Charging pile input and output voltage Input voltage: 380Vac Output voltage: 200-1000V Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
SolFirsTechPVROOF is a series of aluminum waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic， an eco- friendly substitution to the traditional canopy.
Characteristics ·Uninterruptible power supply, switching within 20ms, peak-shaving and valley-filling ·Multiple working modes, so that the rate of self-use reaches 95% ·High charging and discharging efficiency, improving the economic benefits of the system ·Compatible with lead-acid and lithium batteries, and can match economic solutions in different markets ·Intelligent BMS management function to improve battery reliability ·Using high-frequency isolation technology to make the system safer and longer service life ·24-hour intelligent energy management, one-button remote control and upgrade function, real-time grasp of the status of photovoltaic power plants Application ·Places where there is no spare power due to power outages or photovoltaic self-use ·Places where the electricity price for self-use is higher than the on-grid price ·Places where the peak electricity price is higher than the normal electricity price System Parameters Solar panel power 400W Solar panel voltage 41V Number of solar panels 12PCS 14PCS 20PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Battery voltage 48V Battery capacity 100Ah 200Ah Battery communication method CAN/RS485 Inverter off-grid rated output power 3KW 5KW Maximum output apparent power on off-grid side 4. 5KVA, 10S 7KVA,10S Rated output voltage on off-grid side 1/N/PE, 220V Rated output frequency on off-grid side 50Hz Off-grid switching time <20ms Rated output power of inverter connected to the grid 3KW 3.6KW 4.6KW 5KW 6KW Maximum output apparent power on the grid-connection side 3.3KVA 4KVA 4.6KVA 5.5KVA 6KVA Rated output voltage on grid side 1/N/PE,220V Rated output frequency on grid side 50Hz Working temperature -25~+60°C Cooling method Natural cooling Maximum working altitude 3KW AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting （one set）
Horizontal Single Axis Traker
Characteristics ·Reserve 5G base station interface for 5G communication equipment ·Intelligent lighting, supports remote switch lights, dimming, timing, etc ·Built-in high-definition camera, users can remotely monitor the road picture through mobile phone or PC ·The light pole is equipped with WIFI hotspot equipment, and the surrounding users can connect to the WIFI hotspot for Internet browsing ·Built-in broadcasting speakers, support remote audio transmission for remote intercom ·Built-in a variety of weather sensors for environmental monitoring ·Equipped with outdoor LED screen, support remote sending of information, display real-time weather information, advertising information, etc ·With one-button alarm function, quickly report accident information and intelligent unlocking ·Smart unlock Application ·High-tech park ·Tourist scenic area ·Park plaza ·Commercial district System Parameters Light pole The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 LED lights Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 Security camera 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 Digital broadcasting Power: 20W~40W; protection level: IP65 One-button alarm Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz LED information release Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128pix*256pi k; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 Environmental monitoring PM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³; accuracy ±0.1ug Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs Weather monitoring Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s LED single lamp power saving control Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm Charging pile AC charging AC220V/50Hz; power 7kW; credit card or WeChat payment Network equipment 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (Wifi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall Mobile client Mobile APP Power cord accessories National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
SolFirsTech Roof Standing Seam Clamp is widely applied for commercial and residencial roof project.The system is designed for metal roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.
