Item NO.:
SF-GM-006Payment:
TT, L/C, D/A, D/P, Western Union,Price:
$0.06/WProduct Origin:
Xiamen, ChinaColor:
silverShipping Port:
Xiamen,ChinaLead Time:
within 20 working days

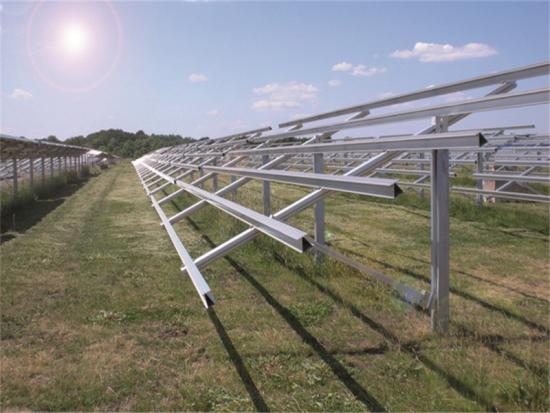

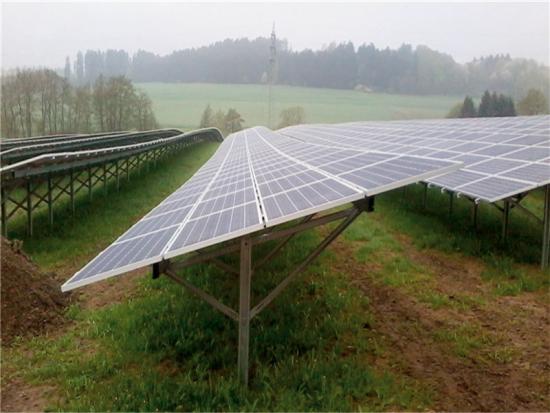

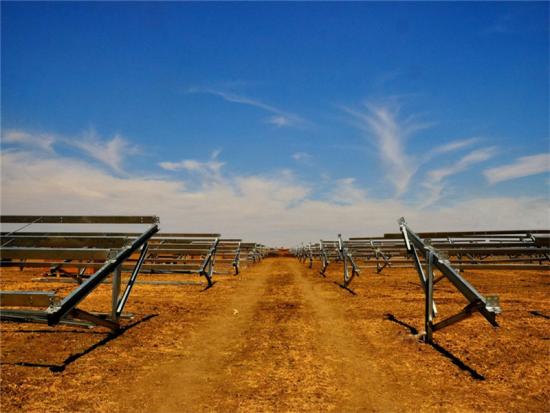

| Structure Tape | V Tape | N Type | W Type |
| Structural Strength | V<N<W | ||
| Installation Site | Open Field / All Type Of Soil | ||
| Standard | JIS C8955 / 8956-2011 / 8956-2017 | ||
| GB50009-2012 | |||
| AS/NZS 1170 | |||
| Max Wind Speed | 30M/s | 45M/s | 60M/s |
| Snow Load | 1.4KN/M² | 1.4KN/M² | 1.4KN/M² |
| Tilt | 5~45 Degreen | ||
| Material | Al6005-T5 | ||
| Fasten Material | Sus304 | ||
| Anti-Corrosion Process | Anodizing | ||
| Warranty | 10 Years | ||
| Service Life | 25 Years | ||
Tin Roof Solar System including L feet, rails, rail connectors etc. We can provide free design of the complete roof system.
Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
Floating Mounting System Structure Anchoring System Combiner Box Bracket, Cable Trunking, Aisle Types of Trunkings Technical Details Design Description: 1. Reduce water evaporation, and utilize the cooling effect of water to increase the power generation. 2. The bracket is made of aluminum alloy for fireproof. 3. Easy to install without heavy equipment; safe and convenient to maintain. Installation Water Surface Surface Wave Height ≤0.5m Surface Flow Rate ≤0.5m/s Wind Load ≤36m/s Snow Load ≤0.45kn/m² Tilt Angle 0~25° Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017 Material HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Technical Details Installation Ground Foundation PHC/Cast-in-place Pile Modules Layout Single Row in Portrait Single span ≤20m Wind Load 0.45KN/㎡ (Adjustable according to the project) Snow Load 0.15KN/㎡ (Adjustable according to the project) Tilt Angle ≤30° Standards GB 50009-2012、GB 50017-2017、NB/T 10115-2018、JGJ257-2012、JGJT 497-2023 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Steps Types of PHC Piles Technical Details Design Description: 1.Applicable to water pools, marshes, wetlands or deep mud areas. 2,Particulary suitable forflood-prone areas. Installation Ground Foundation Pile Mount / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
This photovoltaic smart street light converts solar energy to electrics for lighting compared to traditional street lights. It has obvious advantages of environmental protection, energy saving, and high efficiency. Combined with smart functions, this street light system also provides not only comfortable and automatic light, but also information collection, information transmission, and information release. It will be an important approach for and a terminal of smart communities and smart cities in the future . Smart system + solar; a new type of energy-saving model; a symbol of the smart city.
Characteristics ·DSP itelligent control inverter technology, with excellent performance ·Pure sine wave AC output, with strong adaptability to load ·LCD+LED display mode, with clear indication of operating status of the equipment ·With output overload protection, various automatic protections and alarms ·Intelligent charging control, programmable charging parameter points to meet the special requirements of different occasions ·Battery can be set with multiple protection parameters, with password protection function Application ·Large-scale solar power generation applications such as industrial and mining ·Border defense ·Pastoral areas ·Islands ·Telecommunication base stations System Parameters System power 10KW 15KW 20KW 30KW 50KW Solar panel power 420W Number of solar panels 24 PCS 36 PCS 48 PCS 72 PCS 120 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET DC combiner box 1 SET Controller 216V50A 216V75A 216V100A 216V150A 348V150A Lithium battery/Lead-acid battery(Gel) 216V 348V Battery capacity 200Ah 300Ah 400Ah 600AH Inverter AC input side voltage 304-456V Inverter AC input side frequency 45-65Hz Inverter off-grid rated output power 8KW 12KW 16KW 24KW 40KW Maximum output apparent power on off-grid side 10KVA10min 15KVA10min 20KVA10min 30KVA10min 50KVA10min Rated output voltage on off-grid side 3/N/PE,380/400 Rated output frequency on off-grid side 50Hz Working temperature 0~+40*C Cooling method Air-cooling AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Ground Screw Solar Mounting System main structure is HDG steel, beautiful appearance, strong structure and reliable. And can be customized according to customer requirements of different angle bracket.
SolFirsTech Carport Mounting System product introduction specializes in SolFirsTech carport mounting manufacturing and designing to meet the needs of various pole mount installation.
Outstanding quality of stainless steel and aluminum ensures the most durable mounting. Please choose the suitable product for your roof. Or just tell us your roof details and we'll pick up the most suitable one for you.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Characteristics ·Patented lens, bat-wing light distribution, light is well-distributed ·Intelligent control system to reduce the power consumption of the whole lamp ·Whole lamp is easy to assemble and easy to maintain ·High cycle times, economical and practical Application ·Road lighting ·Landscape lighting ·Schools ·Remote countryside ·Agriculture and animal husbandry Wind-solar Hybrid Street Light Specifications Solar panel power 120W±15% 150W±15% 240W±15% 300W±15% Horizontal axis wind turbine 200W 300W 400W 500W Wind and solar hybrid controller 1 SET Battery capacity 12V/150Ah 12V/100Ahx2 12V/150Ahx2 12V/200Ahx2 Battery Type Lead-acid batteries(Gel) Main light power 40W 50W 80W 100W Color temperature 4000K Height of the whole lamp 7.0m 8.0m 9.0m 10.0m Operating temperature -20°C~55°C Windproof strength 27m/s（Wind Grade 10) Rainy days 5〜7 days
