Item NO.:
SF-TF-05Payment:
T/T,L/C,D/PPrice:
$0.8/pcsProduct Origin:
ChinaColor:
silver blackShipping Port:
Xiamen,ChinaLead Time:
10-15 working daysProduct Description

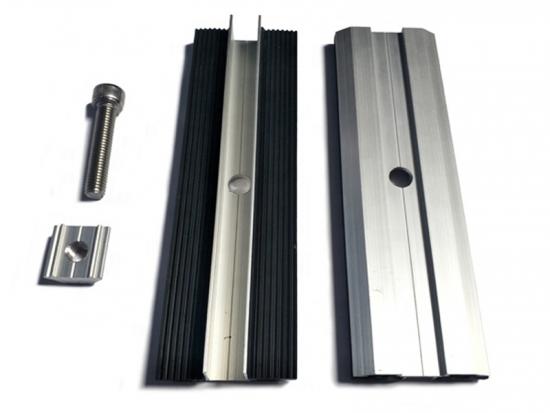

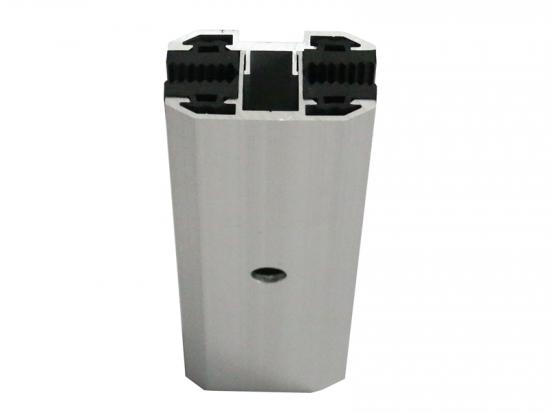

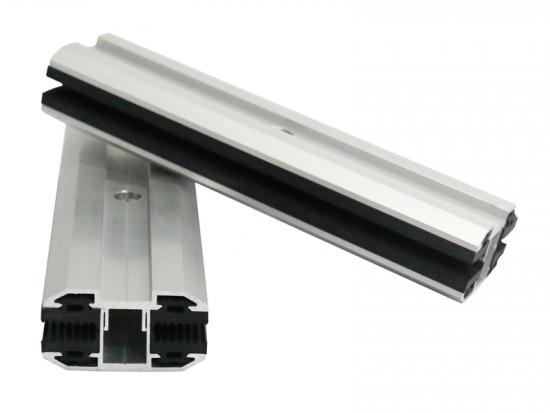

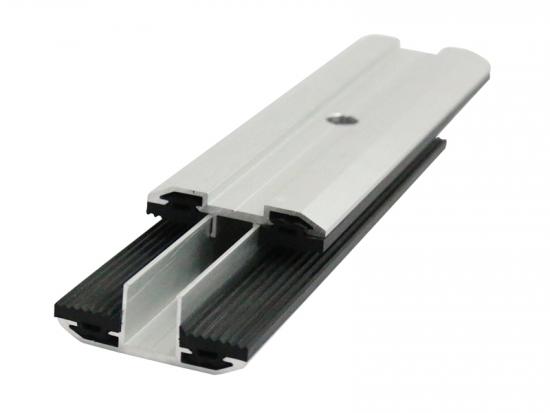

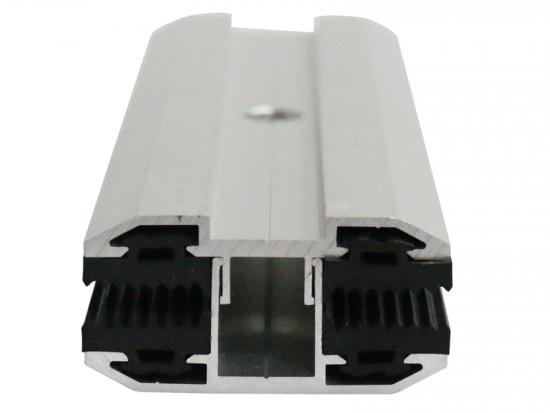

Aluminum Thin Film Frameless Solar panel
Mid Clamp and End Clamp
Materials

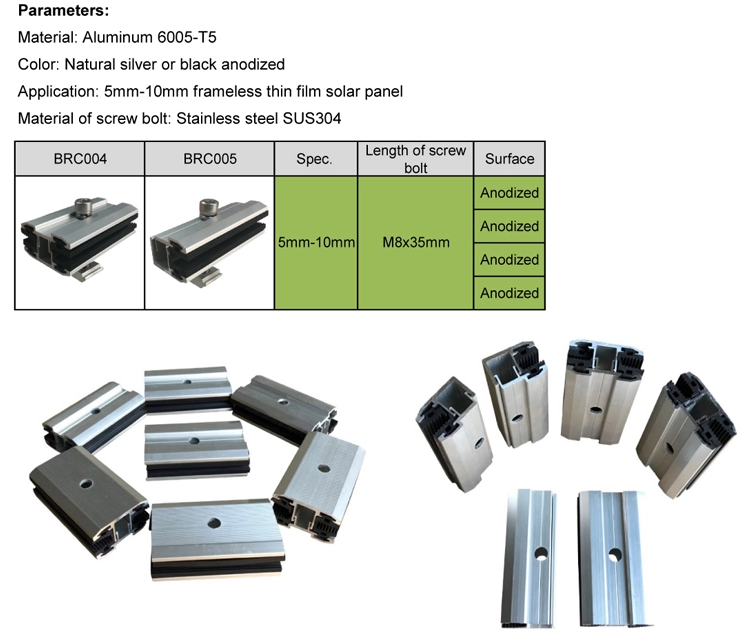

Al 6005-T5
Size
80mm, 120mm, 150mm
OEM available
Applicable Module
6-10mm frameless thin film solar module
Components

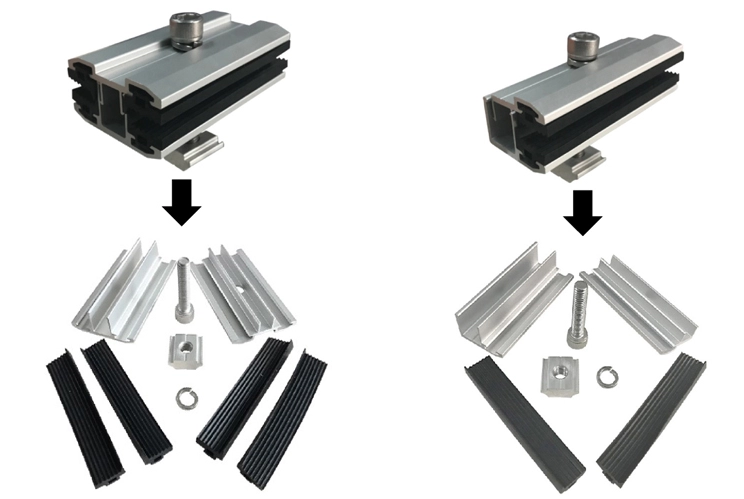

Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Surface
Anodized or Black Electrophoresis
Certification
ISO, SGS, Aluminum testing report.
Warranty
12 years
Introduction
Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.
Features & Characteristics High Adaptability Gradient difference adaptability to uneven terrain in N-S direction up to 15% Less Piles The 2P module design saves pile foundations (to 140 pcs/MW) and greatly reduce the cost Compatibility Compatible to 182/210mm cell solar modules Accessibility Obstacle-free among independent trackers, easy for construction and maintenance Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test. Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±45°/±60° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 35 m/s (ASCE 7-10) Modules per Tracker ≤60 Modules(Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-AI-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Slewing Drive Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°） SolFirsTech-RC-15 76 21(R) 112 SolFirsTech-RC-16 76 21(R) 112 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Steps Types of PHC Piles Technical Details Design Description: 1.Applicable to water pools, marshes, wetlands or deep mud areas. 2,Particulary suitable forflood-prone areas. Installation Ground Foundation Pile Mount / High Concrete Pile (H≥600mm) Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50017-2017 Material Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg pre-coated steel,Stainless Steel SUS304 Warranty 10 Years Warranty Project Reference
Conduct the static electricity on the mount into the ground. SolFirsTech-FL-GC-01 SolFirsTech-FL-GC-02 SolFirsTech-FL-GC-03 SolFirsTech-FL-GC-04 SolFirsTech-FL-GC-05 SolFirsTech-FL-GC-06 SolFirsTech-FL-GC-07 SolFirsTech-FL-GC-08 SolFirsTech-FL-GC-09 SolFirsTech-FL-GC-10 SolFirsTech-FL-GC-11 SolFirsTech-FL-GC-12
Ground Screw is widely used as the basis of Solar Mounting System. Each of our ground screw is galvanized and durable, it is capable to resist rustiness and corrosion. There’re various kinds of ground screws in accordance with different circumstances. Customized products and consultation are acceptable.
Horizontal Single Axis Traker
