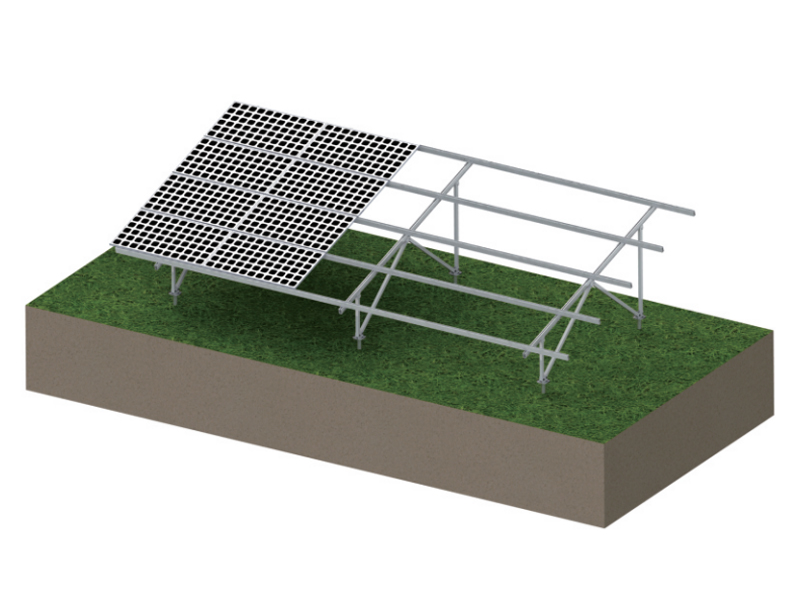

N-Type Structure
Widely used structure, stable, convenient to install, welcomed by the customer.
Recommended environment: Low snow load and wind load.

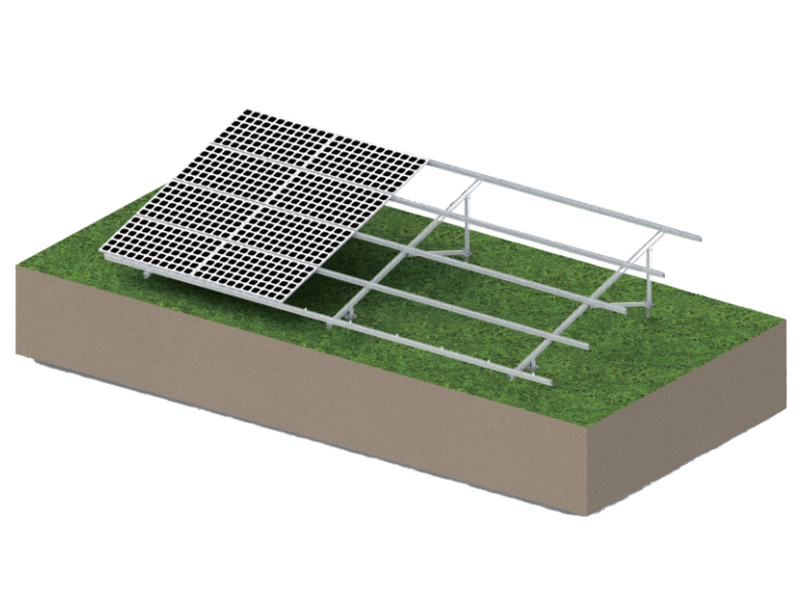

V-Type Structure
Easily installed structure with strong practicability. Since the V type structure has a limitation in ground clearance, it is suitable for concrete flat roofs, and places of no weeds or large animals. It serves as a cost-efficient approach.
Recommended environment:
Low snow load and wind load.

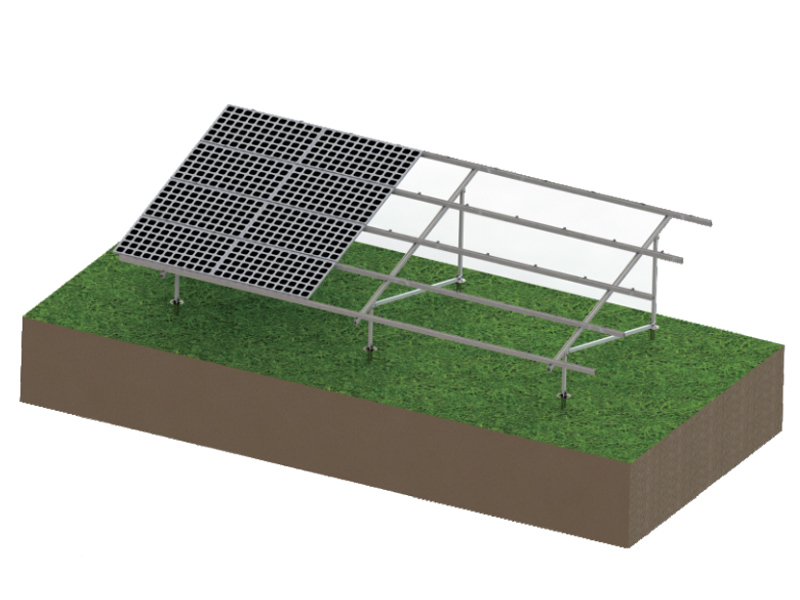

W-Type Structure
Popular structure with double V-shaped structure creating a strengthened stability of the structure itself. It can be used in various environments.
Recommended environment:
High snow load and wind load.
|
Technical Details |
|
| Installation |
Ground |
|
Wind Load |
up to 60m/s |
|
Snow Load |
1.4kn/m² |
|
Standards |
GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
|
Material |
Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 |
|
Warranty |
10 Years Warranty |
Multi-Row Type Structure Multi-row module installation design may increase land utilization rate, improve power generation efficiency, and raise economic benefits. Recommended tilt angle: Less than 15° Recommended environment: High snow load and wind load. l-Type Structure The structure is fixed by two open posts. It is stable, and convenient in installation. Recommend ed environment: Low snow and wind load. Technical Details Installation Ground Wind Load up to 60m/s Snow Load 1.4kn/m² Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 Warranty 10 Years Warranty
Installation Site Roof Type Non Adjustable Size Customized Color Nature Material SUS304 Certification ISO9001 Warantty 10 Years and 20 years service life
Characteristics ·Strong reactive power compensation ability, power factor adjustable range ± 0.8 ·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi) ·Support remote upgrade ·With PID repair, improve module performance ·Equipped with AC and DC switch, maintenance is safer and more convenient ·100% selection of world-renowned components, long service life Application ·Distributed ·Roofs ·Hotels ·Factories ·Resorts ·Commercial buildings ·Conference centers ·Office buildings System power 40KW 50KW 60KW 80KW 100KW Solar panel power 400W 420W 450W 450W 450W Number of solar panels 100 PCS 120 PCS 134 PCS 178 PCS 222 PCS Photovoltaic DC cable 1 SET MC4 connector 1 SET Rated output power of inverter 33KW 40KW 50KW 70KW 80KW Maximum output apparent power 36.3KVA 44KVA 55KVA 77KVA 88KVA Rated grid voltage 3/N/PE,400V Grid voltage range 270-480Vac Rated grid frequency 50HZ Grid frequency range 45-65HZ Maximum efficiency 98.60% Island effect protection YES DC reverse connection protection YES AC short circuit protection YES Leakage current protection YES Ingress protection level IP66 Working temperature System Cooling method Natural cooling Maximum working altitude -25～+60℃ Communication 4G (optional)/WiFi (optional) AC output copper core cable 1 SET Distribution box 1 SET Auxiliary material 1 SET Photovoltaic mounting type Aluminum /Carbon steel mounting (one set)
Tilted Single Axis Tracker
Features & Characteristics High Capacity Every two trackers are linked for up to 4 strings of modules (120 pieces) Compatibility Compatible to 182/210mm cell solar modules High Stability Be equipped with damper to reduce resonance under extreme environment Reliability The independent control system help to monitor the operation, find fault points in time, and reduce power output loss Smart Tracking Adjust tilt angle smartly and timely according to terrain and weather data to increase power output Reasonable Design The stability is ensured via exclusive structural design and strict wind tunnel test Tracker Structure Tracking Technology Horizontal Single Axis Tracker System Voltage 1000V/1500V Tracking Range ±50° Working Wind Speed 18 m/s (Customizable) Max. Wind Speed 45m/s (ASCE7-10) Max. Wind Speed <120 Modules (Customizable) Principal Materials Hot-Dip Galvanized Q235B/Q355B, Zn-Al-Mg Coated Steel Mean Coating Thickness ≥65 micron Drive System Linear Actuator Foundation type PHC / Cast-in-Place Pile / Steel Pile Control System Control System MCU Tracking Mode Closed Loop Time Control + GPS Tracking Accuracy <2° Communication Wireless (ZigBee, LoRa); Wired (RS485) Powder Acquisition External Supply / String Supply / Self-Powered Auto Stow at Night Yes Auto Stow During High Winds Yes Optimized Backtracking Yes Protection Degree IP65 Working Temperature -30°C-65°C Anemometer Yes Power Consumption 0.3kWh per day Project Reference
Ground Screw System is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram
SolFirsTechPVROOF is a series of BIPV roofs which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Day lighting + solar photovoltaic, an eco-friendly substitution to the traditional skylight.
L Feet is an important accessories of Tin Roof Mounting Structure. It is made of aluminum material, with light weight and good appearance.
SolFirsTechPVROOF is a series of aluminum waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic， an eco- friendly substitution to the traditional canopy.
Characteristics · Efficient power conversion, plug and play, no need to wait · Intelligent circuit, stabilized output power at 5V, matching stable output current, avoiding damage to the charging equipment · Strong, waterproof, corrosion-resistant ETFE material, longer service life · For camping/hiking Application Outdoor DC power supply places System Parameters
SolFirsTech-RC Roof Clamp Series Dimensions (mm) A B C(°) SolFirsTech-RC-08 28 34 122 SolFirsTech-RC-09 20 20 123 SolFirsTech-RC-10 20 20 123 SolFirsTech-RC-11 25 23.8 132 SolFirsTech-RC-18 22 16 120 SolFirsTech-RC-21 52 12 135 SolFirsTech-RC-22 33.7 18 135 SolFirsTech-RC-23 33.7 18 135 Technical Details Installation Metal Roof Wind Load up to 60m/s Snow Load 1.4kn/m² Tilt Angle Parallel to Roof Surface Standards GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 Warranty 10 Years Warranty
SolFirsTechPVROOF is a series of steel waterproof sheds which combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites. Waterproof structure + solar photovoltaic, an eco-friendly substitution to the traditional canopy.
